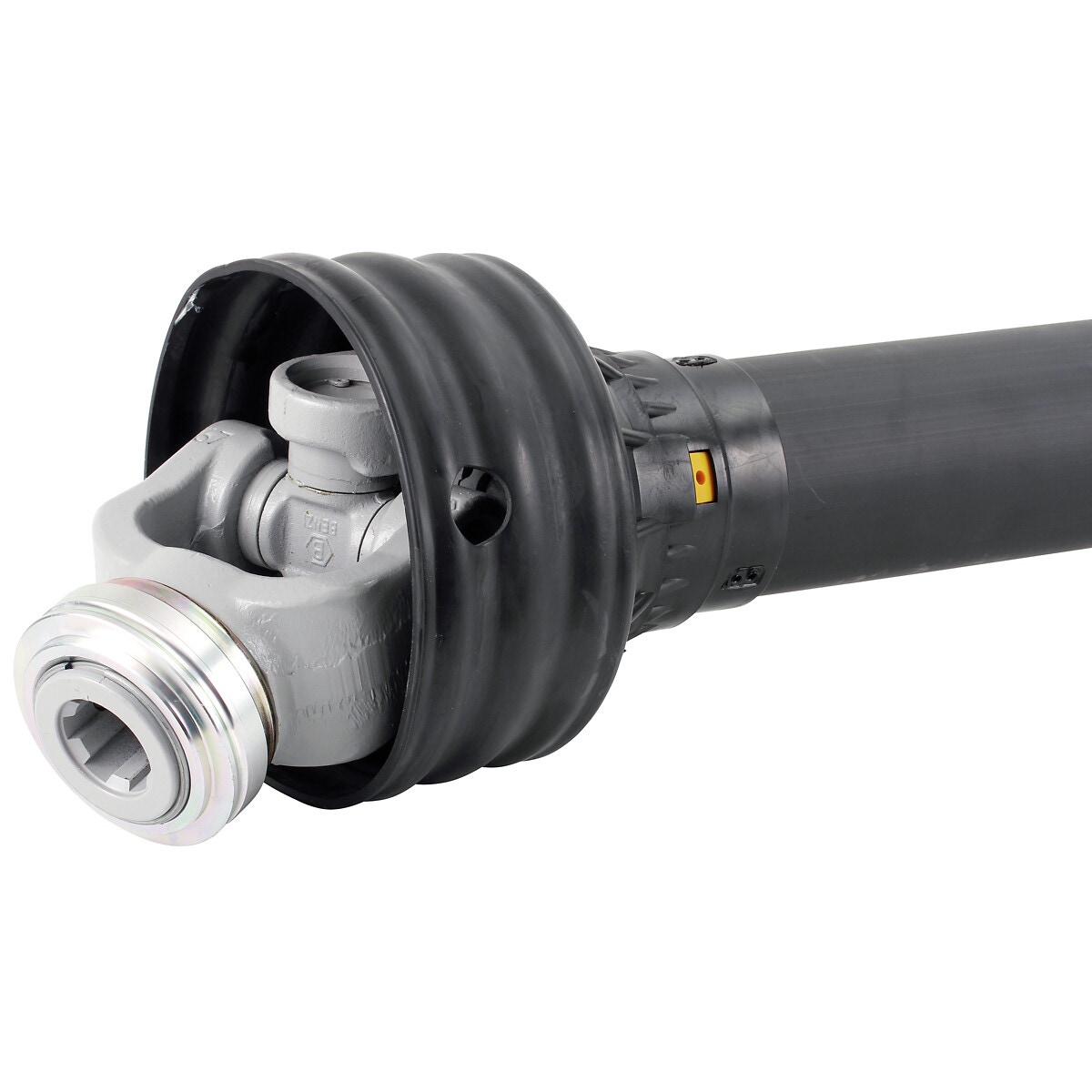

Pto vārpsta v07 1.3/8-6 evolūcija

Description

type: V07 (W2500) | outer yoke tractor end: 1.3/8”-6Z collar lock | outer yoke tractor end: 1.3/8”-6Z pin lock | power 540 rpm: 66 kW / 90 hv / 1175 Nm | power 1000 rpm: 102 kW / 139 hv / 975 Nm | max. static load for tubes: 3000 Nm | length: L 860 mm, M min. 1107 mm, M max. 1537 mm | truss: A/B: 36 x 89 mm | inner tube: star profile A 51 mm, B 37 mm | outer tube: star profile A 61 mm, B 47 mm, S 4.5 mm | maintenance interval up to 50 hours | suggested applications: trailers, snow blowers, mulchers, wood chippers, peat production machines, etc.

Attributes

Universal joint size: 36 x 89 mm | Spline type: 1 3/8" Z6 | Profile tube type: Star | Package length (cm): 109 | Package width (cm): 20 | Package height (cm): 18 | Gross weight (kg): 21.920000 | EAN: 6418914870598
