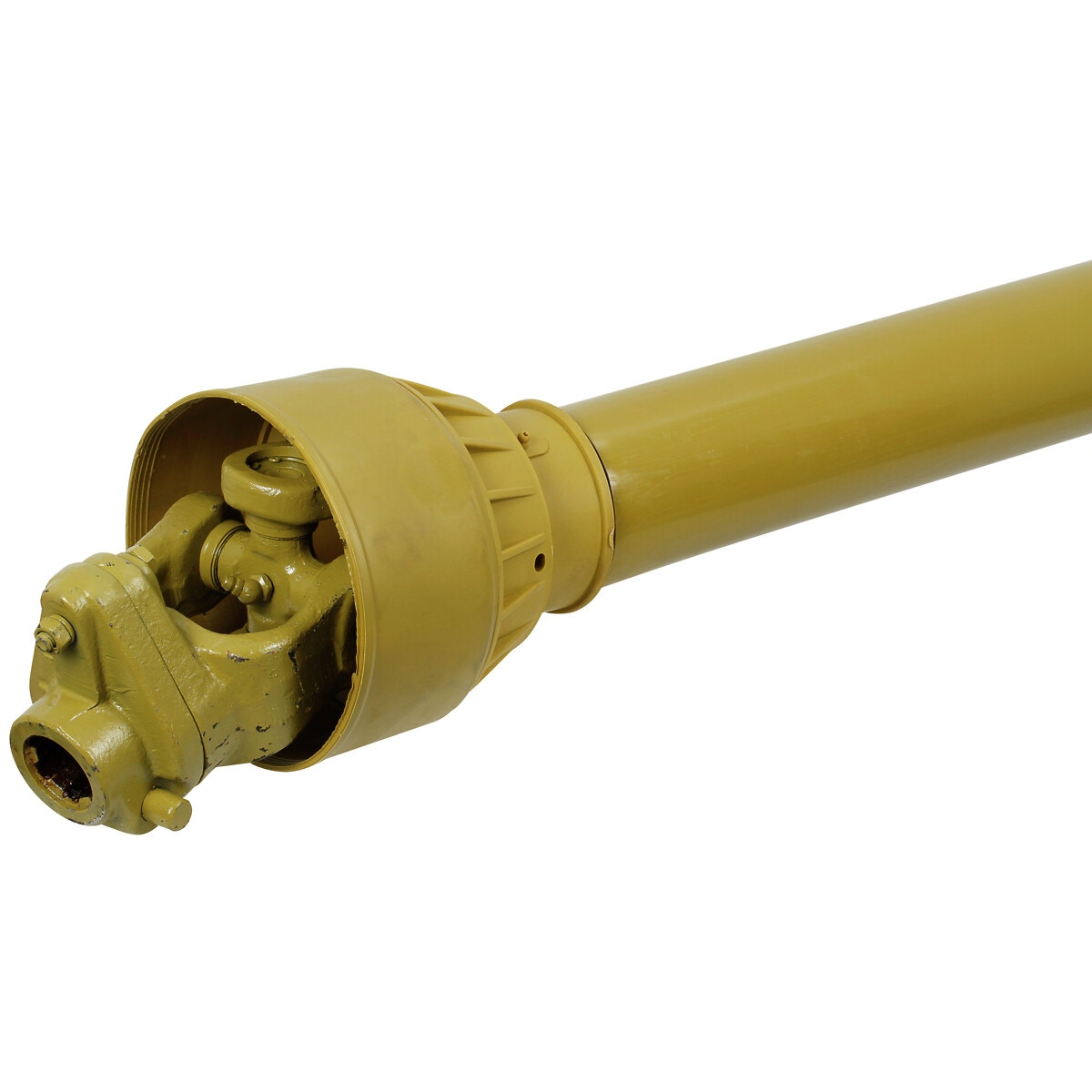

PTO VĀRPSTA 06 1.3/8-6 BĪDES SKRŪVES SAJŪGS GARŠ

Description

type: 06 | bolt clutch 2100 Nm | yoke tractor end: 1.3/8"-6Z pin locking | yoke implement end: 1.3/8"-6Z pin locking | power 540 rpm: 40 kW / 55 hv / 700 Nm | power 1000 rpm: 61 kW / 83 hv / 580 Nm | length: L 1510 mm, M min. 1765 mm, M max. 2414 mm | truss: A/B: 30,2 x 92 mm | inner tube: triangular A 44,7 mm, S 4 mm | outer tube: triangular A 53,6 mm, S 3,8 mm | normative operations: trailers, snow blowers, milling machines, chippers, peat machines etc. | check the references for measurements from the drawing | values has been calculated on the basis of continuous load; joint angel 5° and operating time 1000 h

Attributes

Universal joint size: 30,2 x 92 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 174 | Package width (cm): 16.5 | Package height (cm): 16.5 | Gross weight (kg): 23.350000 | EAN: 6418914901353
