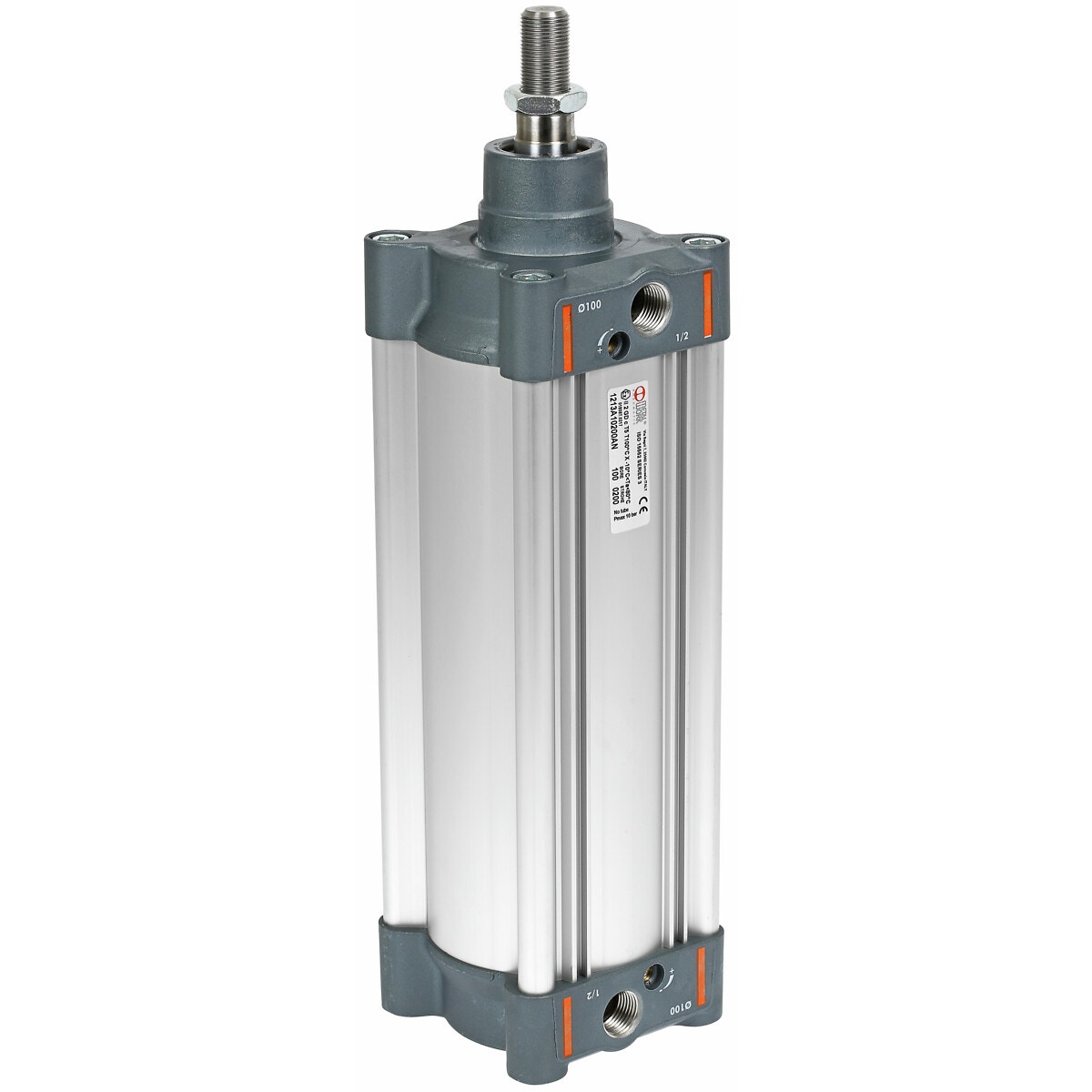

PNEIMATISKAIS CILINDRS 100×200 S3 ISO15552 2-AKT.

Description

double-acting cushioned cylinder ISO 15552, series 3 | supplied with magnet for sensors | material piston rod C45 steel, barrel drawn anodised calibrated aluminium, gaskets NBR | piston Ø 100 mm | arm Ø 25 mm | stroke 200 mm | taptite screws M10 | max. operating pressure 10 bar | operating temperature -10…+80 °C | fluid: filtered unlubricated compressed air (lubrication if used must be continuous)

Attributes

Package length (cm): 43.5 | Package width (cm): 11 | Package height (cm): 11 | Gross weight (kg): 5.534000 | EAN: 8024986815283
