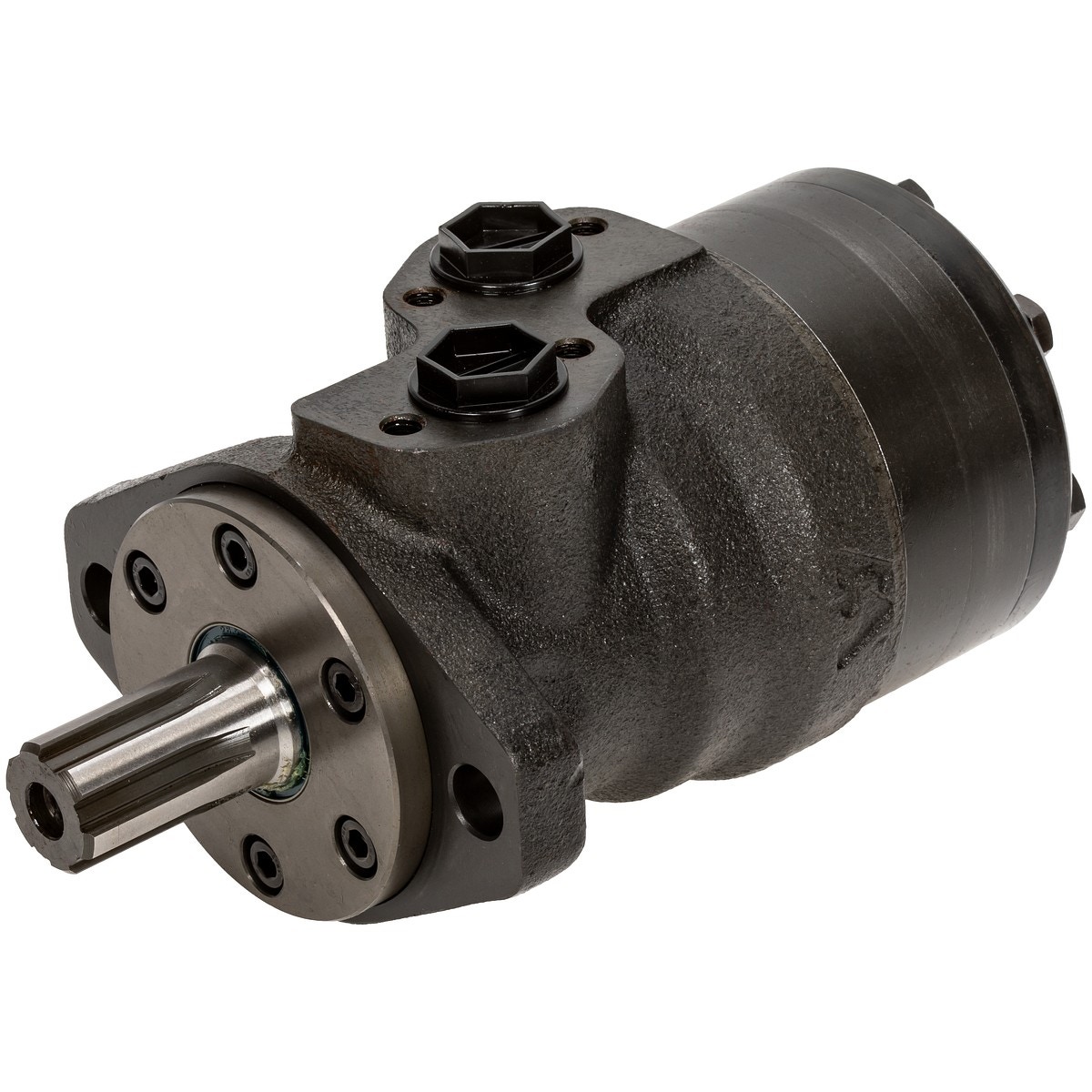

ORBITMOTOR MR315 SH SAE6B 1″ ASS

Description

high-quality M+S gerotor motor, which is suitable for a wide range of applications, such as agricultural machinery, sand spreaders, log saws, sludge pumps, conveyors, boom mower attachments etc. | MR model is a more advanced version that offers a good pressure resistance and higher efficiency | high torque with compact size | Danfoss OMR exchangeable | 25.32 mm shaft, 6-splined, BS 2059 (SAE 6B) | main ports G 1/2" | drain port G 1/4" | displacement 315.7 cm³/r | max. speed continuous 190 / intermittent 240 rpm | max. torque continuous 360 / intermittent 470 Nm | max. output continuous 5 / intermittent 8 kW | max. pressure continuous 175 / intermittent 200 / peak 225 bar | max. oil flow continuous 60 / intermittent 75 l/min | A 183 mm | B 54.8 mm | C 55 mm | weight 9.1 kg

Attributes

Shaft: 6-splined shaft | Thread: G 1/2" -14 | Package length (cm): 29 | Package width (cm): 14.2 | Package height (cm): 13 | Gross weight (kg): 9.500000 | EAN: 6418914236509
