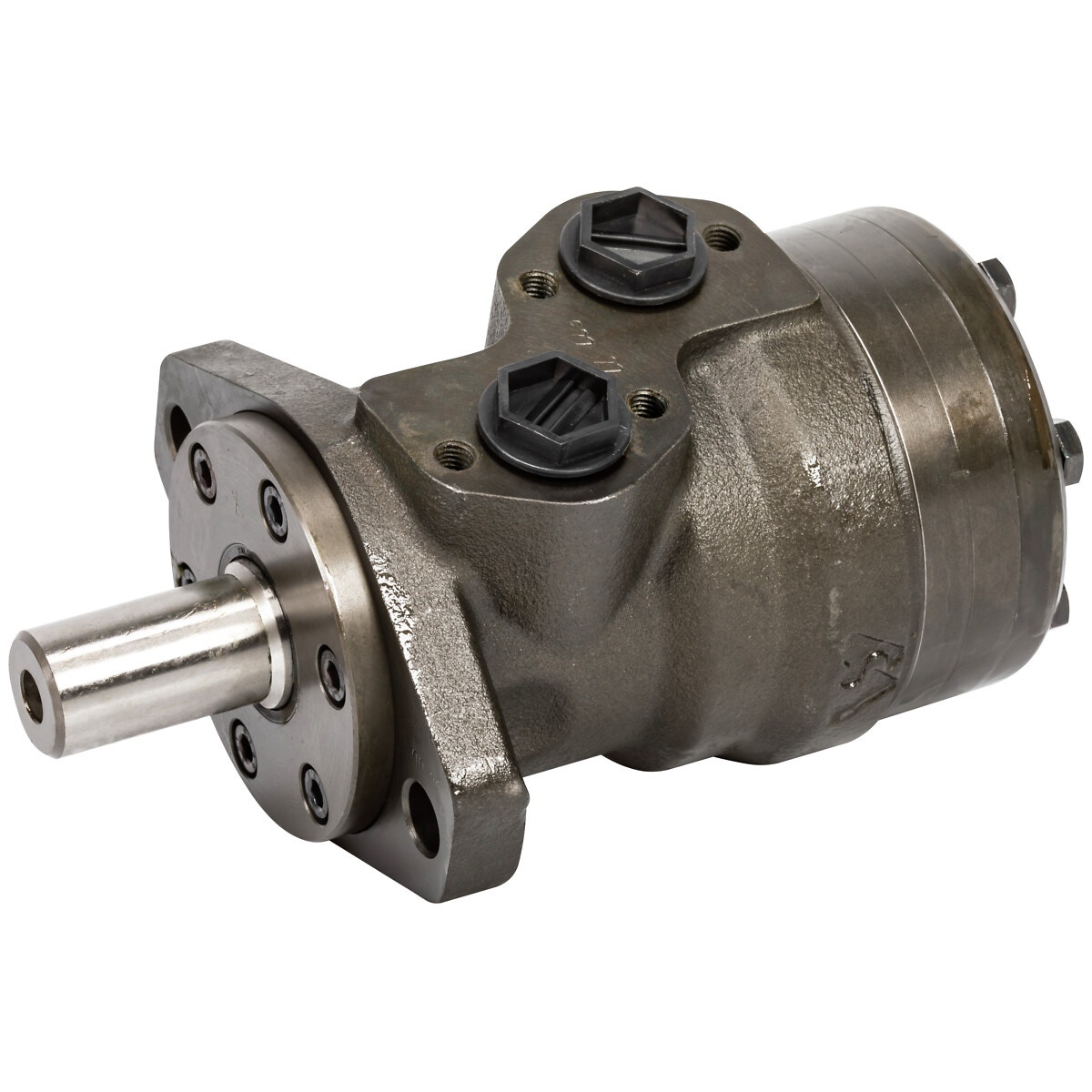

ORBITMOTORS HMR 250

Description

high-quality M+S gerotor motor, which is suitable for a wide range of applications, such as agricultural machinery, sand spreaders, log saws, sludge pumps, conveyors, boom mower attachments etc. | MR model is a more advanced version that offers a good pressure resistance and higher efficiency | high torque with compact size | Danfoss OMR exchangeable | 25 mm straight shaft, parallel key A8x7x32 DIN6885 | main ports G 1/2" | drain port G 1/4" | displacement 250.1 cm³/r | max. speed continuous 240 / intermittent 300 rpm | max. torque continuous 390 / intermittent 470 Nm | max. output continuous 8 / intermittent 9,5 kW | max. pressure continuous 175 / intermittent 200 / peak 225 bar | max. oil flow continuous 60 / intermittent 75 l/min | A 172 mm | B 43.5 mm | C 55 mm | weight 8.4 kg

Attributes

Shaft: 25 mm straight shaft | Thread: G 1/2" -14 | Package length (cm): 13 | Package width (cm): 28.5 | Package height (cm): 15 | Gross weight (kg): 8.940000 | EAN: 6418914215184
