HIDRAULISKO 6/2 BLOKU SĒRIJA 1/2″

Description

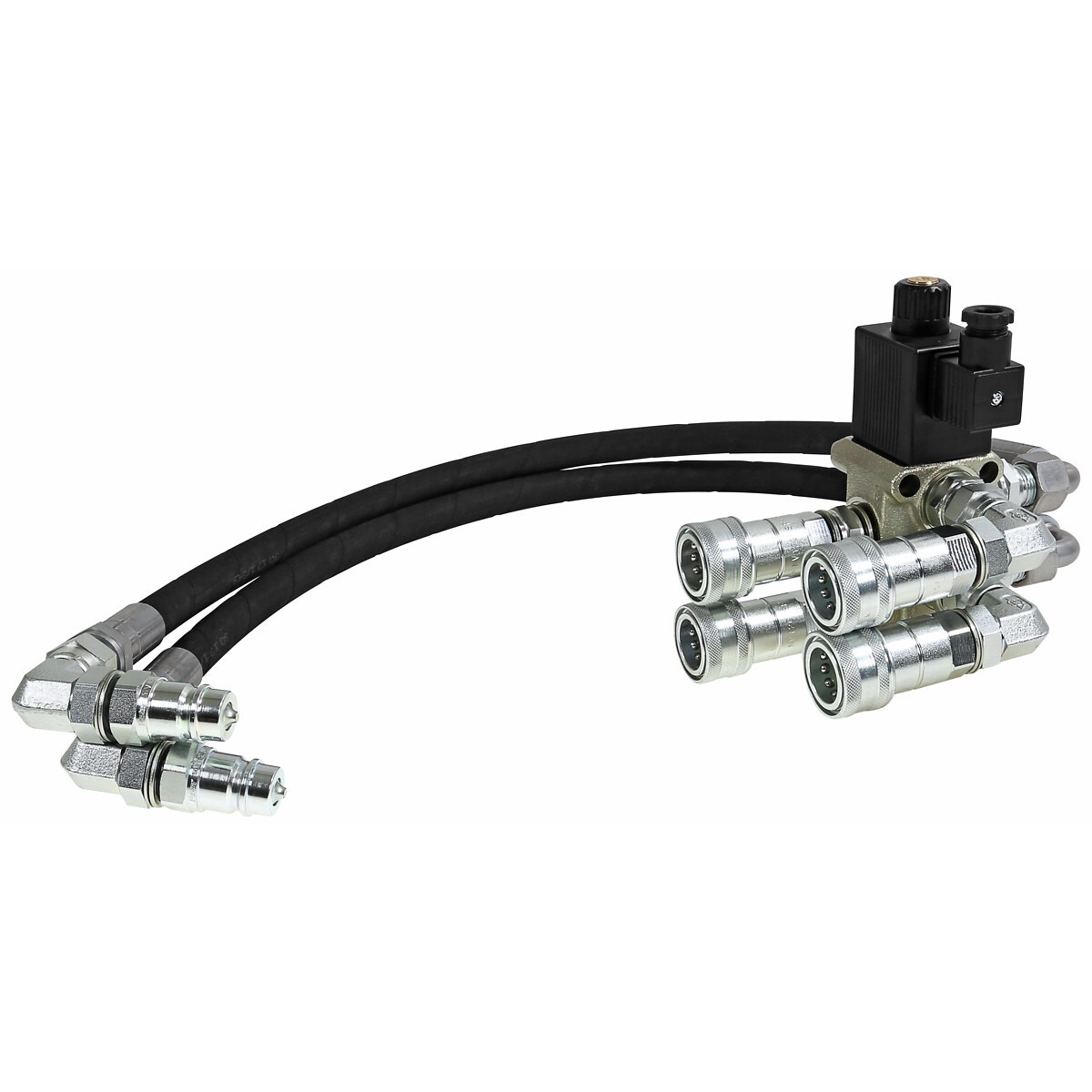

Ready-to-use Double Acting Valve Package, built with high-quality components: Bosch Rexroth valve, Faster quick couplings, and high-quality hoses manufactured in Europe | Can be installed permanently or temporarily in a tractor or a detachable attachment | By doubling the hydraulic outputs, more power can be easily and cost-effectively extracted from the machine's hydraulics | Applications include: increasing the tractor's work hydraulics, adding auxiliary hydraulics to a front loader, and other hydraulic applications | In normal mode, the original hydraulic flow passes through the valve to the other port. When the double-acting valve is activated electrically, it switches the flow to the other port | Control can be done using the device's own switches, or an external switch can be installed | The system can be expanded by adding additional double-acting valves in parallel, providing the desired number of outputs | 12 V system | Max. operating pressure: 275 bar | Max. flow rate: 60 l/min | 6/2 double-acting valve (FM2511) | Quick coupling socket 1/2" (NV12GASM) | Quick coupling body 1/2" (NV12GASF) | Hoses 2 x 700 mm | Elbow and straight fittings, along with necessary seals

Attributes

Thread: G 1/2" -14 | Package length (cm): 103 | Package width (cm): 13 | Package height (cm): 10.5 | Gross weight (kg): 8.020000 | EAN: 6418914966147
