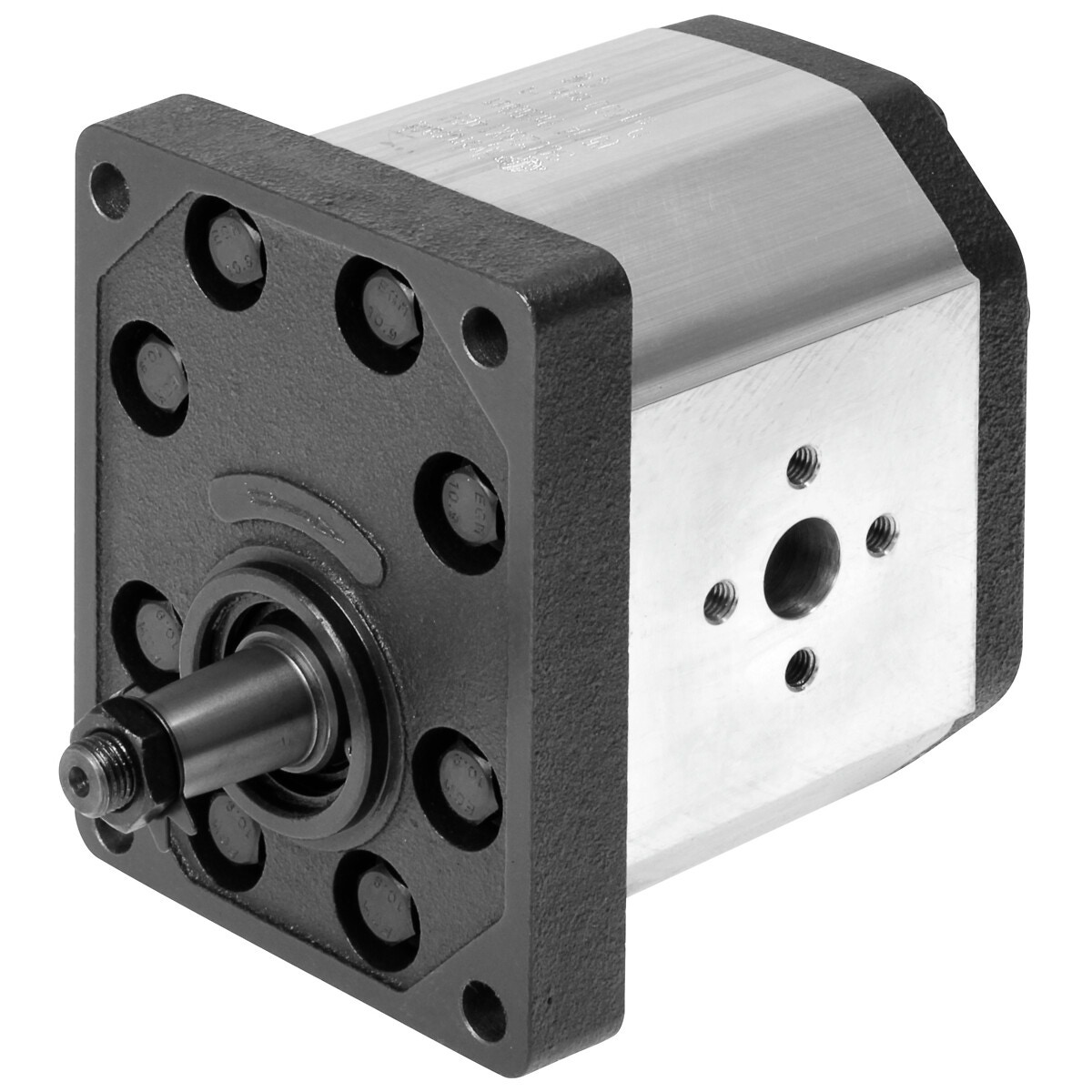

HIDRAULISKAIS SŪKNIS 46 GRUPA-3 ATLOKU PORTI
299 €
✓ Pieejams
Description
aluminium body | flange ports | tapered shaft 1:8 | clockwise rotation D (C) | rotational capacity 46 cm³/r | max. 2300 rpm | max. pressure 230 bar | flow 65,6 l/min (at 1500 rpm) | flow 100,5 l/min (max. rpm) | A 72,7 mm | B 149,8 mm | inlet E 51 mm / d M10 / F 27 mm | outlet E 40 mm / d M8 / F 19 mm
Attributes
Package length (cm): 13.5 | Package width (cm): 17 | Package height (cm): 21.5 | Gross weight (kg): 10.173000 | EAN: 6418914927148
