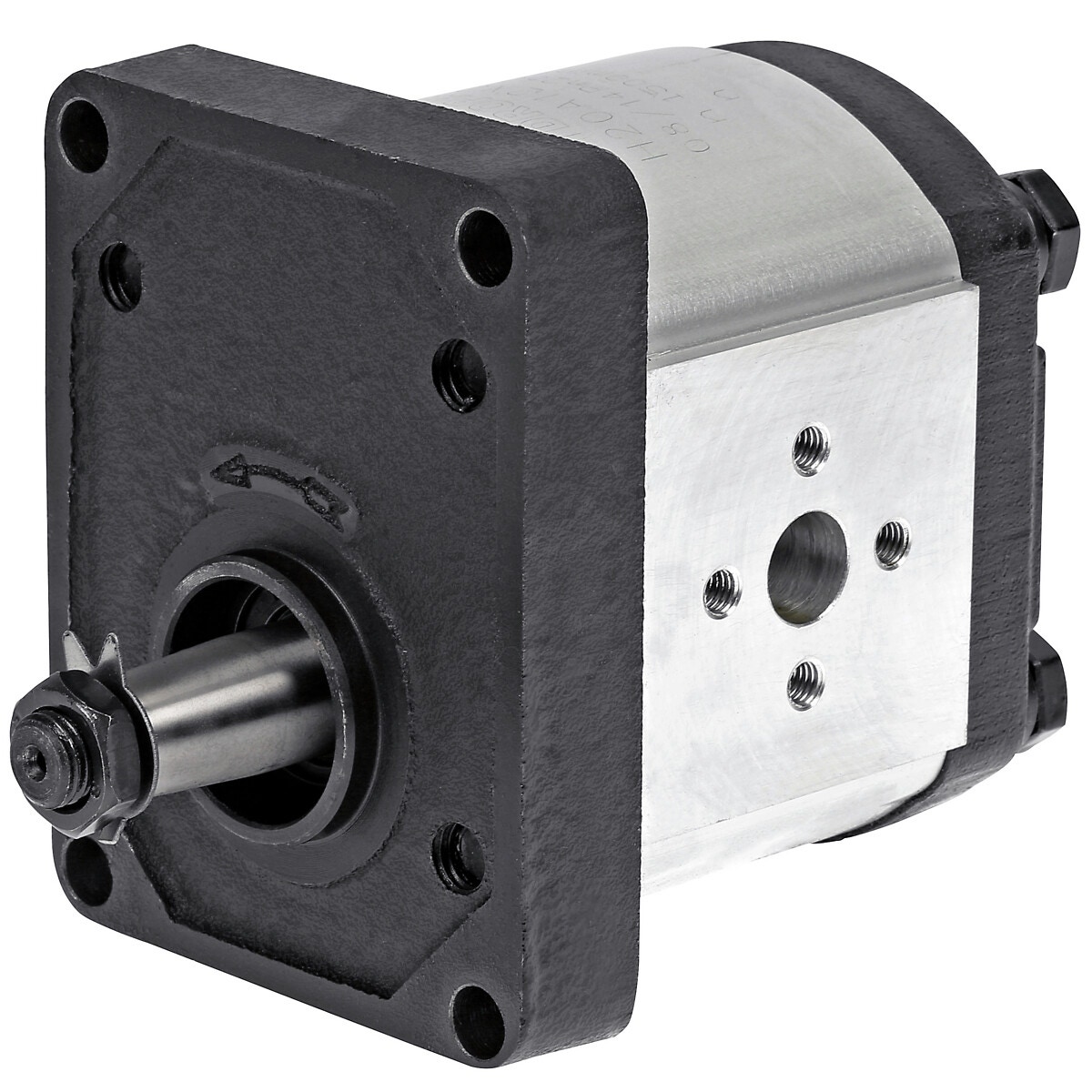

HIDRAULISKAIS SŪKNIS 16 2. GRUPAS ATLOKU PORTI
136,20 €
✓ Pieejams
Description
aluminium body | flange ports | tapered shaft 1:8 | counter clockwise rotation S (A) | rotational capacity 16 cm³/r | max. 2500 rpm | max. pressure 250 bar | flow 23,04 l/min (at 1500 rpm) | flow 38,40 l/min (max. rpm) | A 52 mm | B 98,6 mm | inlet E 39,7 mm / F 19 mm / d M8 | outlet E 30,2 mm / F 14,2 mm / d M6
Attributes
Package length (cm): 9.5 | Package width (cm): 12.5 | Package height (cm): 17 | Gross weight (kg): 3.826000 | EAN: 6418914922860
