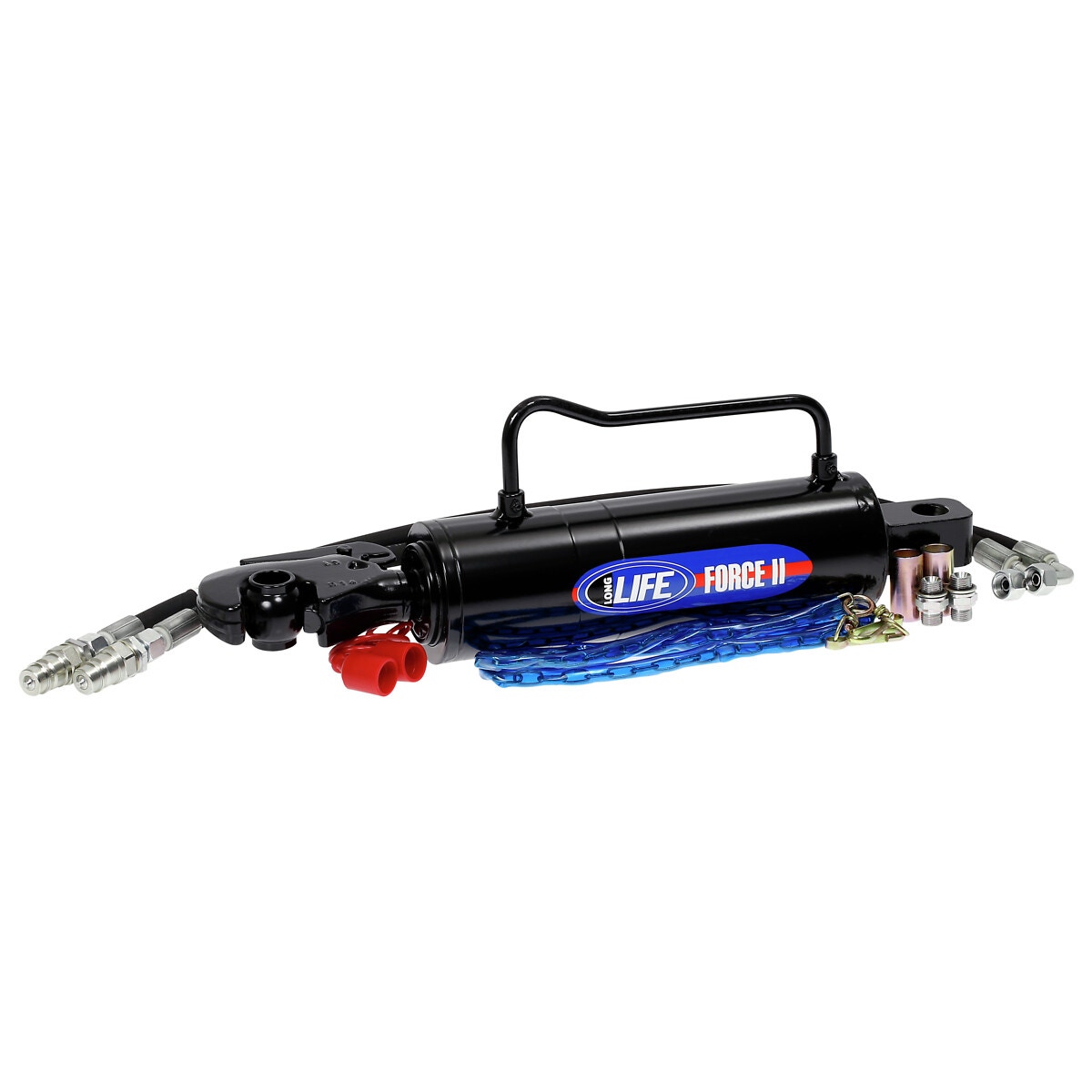

Hidrauliskais augšējais savienojums 90/35/455 yoke-cat2 rapid teles

Description

hydraulic top link with very long movement, with two moving tubes | tubes 75 mm and 35 mm (piston diameter 90 mm and 63 mm) | thrust with 75 mm tube 12000 kg, pulling 3600 kg | thrust with 35 mm rod 5900 kg, pulling 3800 kg | knuckle end not included | T0118 knuckle end, pin JD 20,2 mm | T0116 knuckle end, pin CAT2 25,4 mm | T0119 knuckle end, pin NH 28,2 mm | T0117 knuckle end, pin CAT3 32,3 mm | T0118L knuckle end long, pin JD 20,2 mm | T0116L knuckle end long, pin CAT2 25,4 mm | T0119L knuckle end long, pin NH 28,2 mm | T0117L knuckle end long, pin CAT3 32,3 mm

Attributes

Package length (cm): 80.5 | Package width (cm): 16 | Package height (cm): 16.5 | Gross weight (kg): 21.650000 | EAN: 6418914800809
