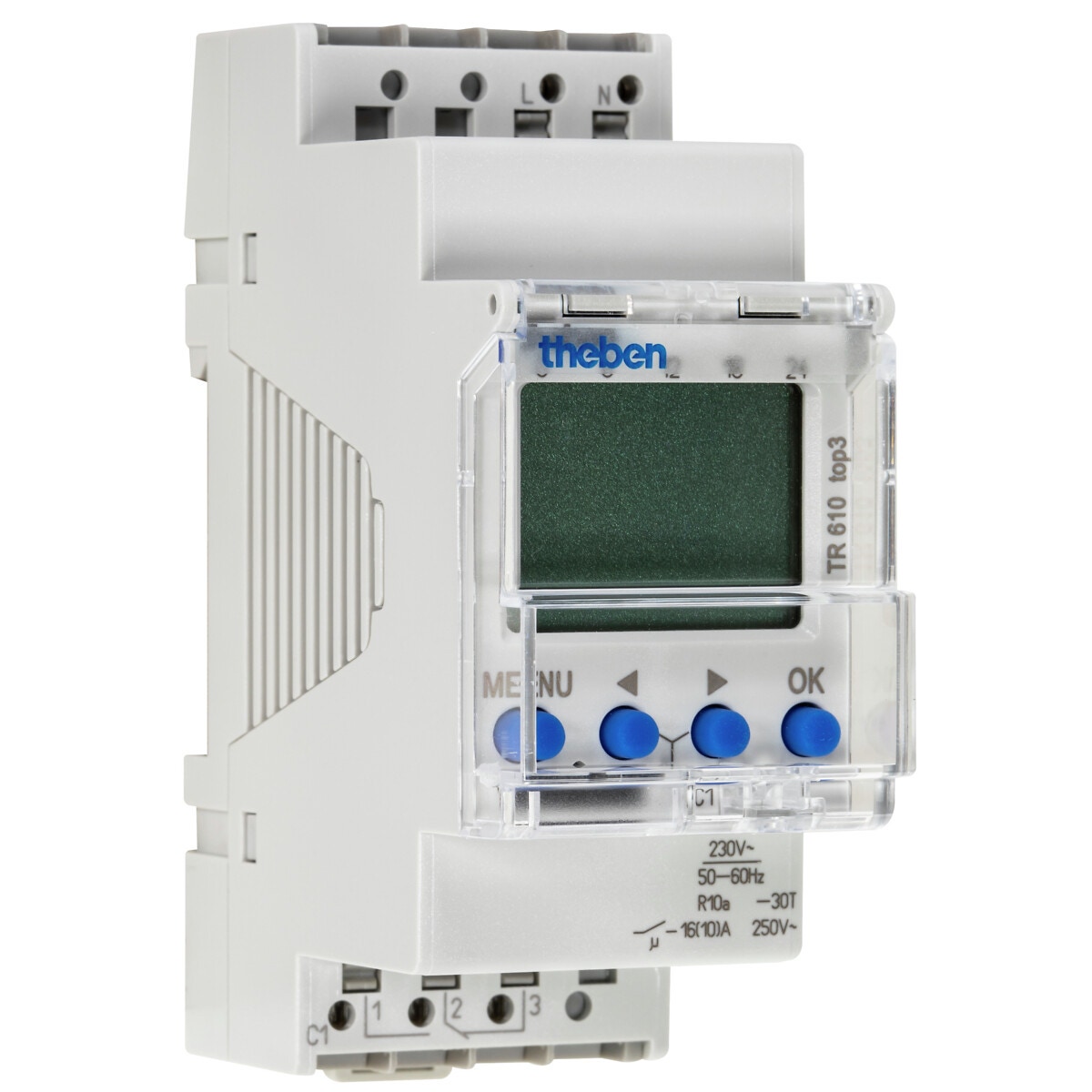

DIGITĀLAIS TAIMERIS THEBEN TR610

Description

digital time switch with weekly program | duoFix spring terminals | for 2 conductor each | wire or strand (with or without wire end sleeve) | wire diameter 0.5 – 2.5 mm² | button for releasing plug-in connection | text-oriented user guidance in display | preset date and time | fully operable without mains connection | 56 memory locations | interface for OBELISK top2 memory card (PC programming) | interface for OBELISK top3 memory card (PC programming) | insertable switching program | insertable switching program | copying programs | storing programs | 10 year power reserve (lithium battery) | zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices) | ON-OFF switching times | switching preselection | permanent switching ON/OFF | integrated operating hour counter | reset option | service function for monitoring maintenance intervals | holiday program | display back light (can be turned off) | PIN coding | automatic summer/winter time changeover | date rule options are already stored for Europe, the USA and other
countries | own date rule options or changeover around set dates are available | operatin voltage 230-240 V AC | frequency 50 – 60 Hz | width 2 modules | installation type DIN rail | type of contact changeover contact | switching output phase-independent | opening width < 3 mm | program weekly program | program functions ON-OFF | number of channels 1 | number of memory locations 56 | power reserve 10 years | switching capacity 250 V AC, cos φ = 1: 16 A | switching capacity 250 V AC, cos φ = 0.6: 10 A | incandescent/halogen lamp load 2600 W | energy saving lamps 1100 W | LED lamp < 2 W: 50 W | LED lamp < 2-8 W: 600 W | LED lamp < 8 W: 600 W | fluorescent lamp load (conventional) not corrected 2600 VA | fluorescent lamp load (conventional) series corrected 2600 VA | fluorescent lamp load (conventional) parallel corrected 1300 VA 130 µF | switching capacity min. ca. 10 mA | shortest switching time 1 min | time accuracy at 25 °C typical ± 0,25 s/day (quartz) | time basis quartz | standby power ~0.4 W | type of connection DuoFix spring terminals | display LCD | keyboards 4 touch buttons | housing and insulation material high-temperature resistant, self-extinguishing thermoplastic | protection class IP20 | protection class II according to EN 60 730-1 | ambient temperature -30…55 °C

Attributes

Package length (cm): 4.8 | Package width (cm): 10.4 | Package height (cm): 7.8 | Gross weight (kg): 0.141000 | EAN: 4003468610299
