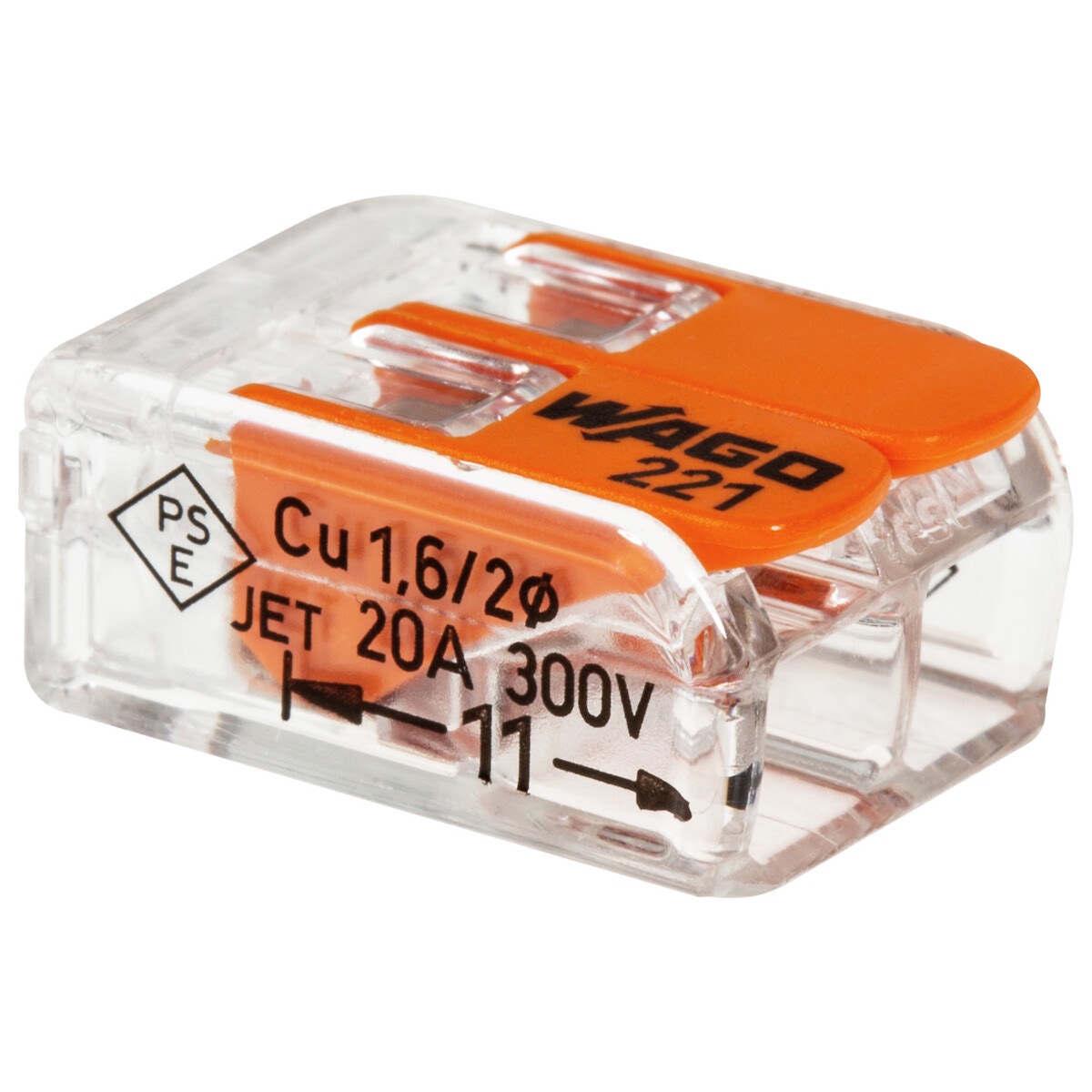

Stieples savienotājs wago 221 2-pin 5 gab.

Description

Wago 2-conductor connector for 0,14 – 4 mm² conductors | rated voltage 450 V | rated current 32 A | connectable conductor materials copper | connection technology Cage Clamp® | solid conductor 0,2 – 4 mm² / 24 – 12 AWG | stranded conductor 0,2 – 4 mm² / 24 – 12 AWG | fine-stranded conductor 0,14 – 4 mm² / 24 – 12 AWG | strip length 11 mm | operating temperature -35…+105 °C | connect solid, stranded and fine-stranded conductors | time savings for installers and device manufacturers | quickly install devices with higher levels of power consumption | safely install long cable runs with larger conductor cross-sections | pull the lever up, insert a conductor and push the lever back down | dimensions W 13.1 x H 8,3 x D 18.6 mm | 5 pcs / package

Attributes

Package length (cm): 1 | Package width (cm): 9 | Package height (cm): 5 | Gross weight (kg): 0.012000 | EAN: 7331430057764
