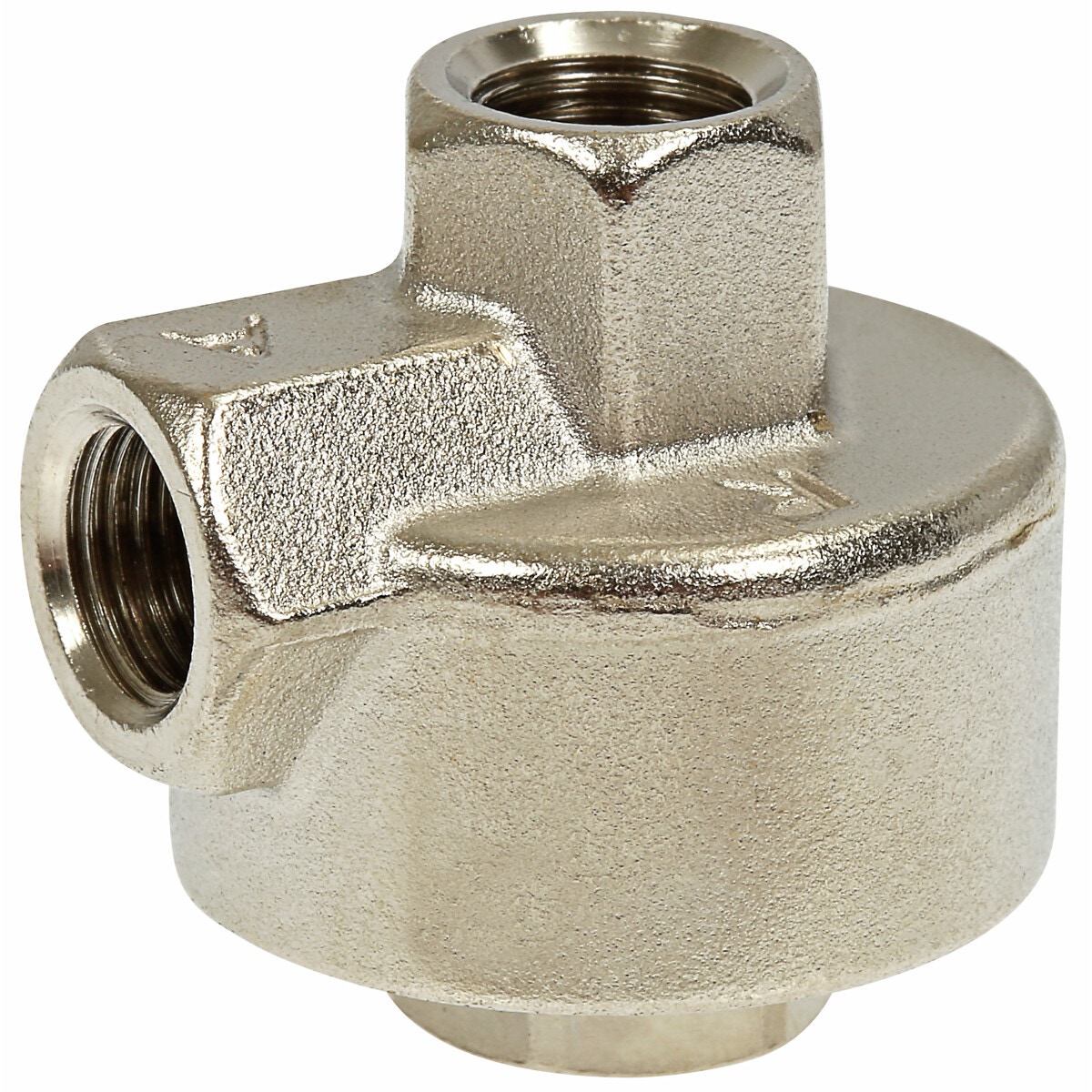

Ātrs izplūdes vārsts 1/8 vsr

Description

VSR series | new, more compact and lighter version | used to evacuate air in the cylinder quickly, which increases cylinder speed | material body nickel-plated brass, O-ring NBR | thread G 1/8" | max. pressure 12 bar | min. pressure 0,5 bar | nominal flow rate 2400 Nl/min (2,5 bar) / 2800 Nl/min (4 bar) / 3600 Nl/min (6,3 bar) | empty flow rate 4400 Nl/min (2,5 bar) / 6300 Nl/min (4 bar) / 8000 Nl/min (6,3 bar) | weight 80 g | F 1/8" | B 18.5 | D 29.5 | CH 14 | L 32.5 | L1 13.4

Attributes

Thread: G 1/8" -28 | Package length (cm): 3.2 | Package width (cm): 3.3 | Package height (cm): 3 | Gross weight (kg): 0.076000 | EAN: 8024986179057
