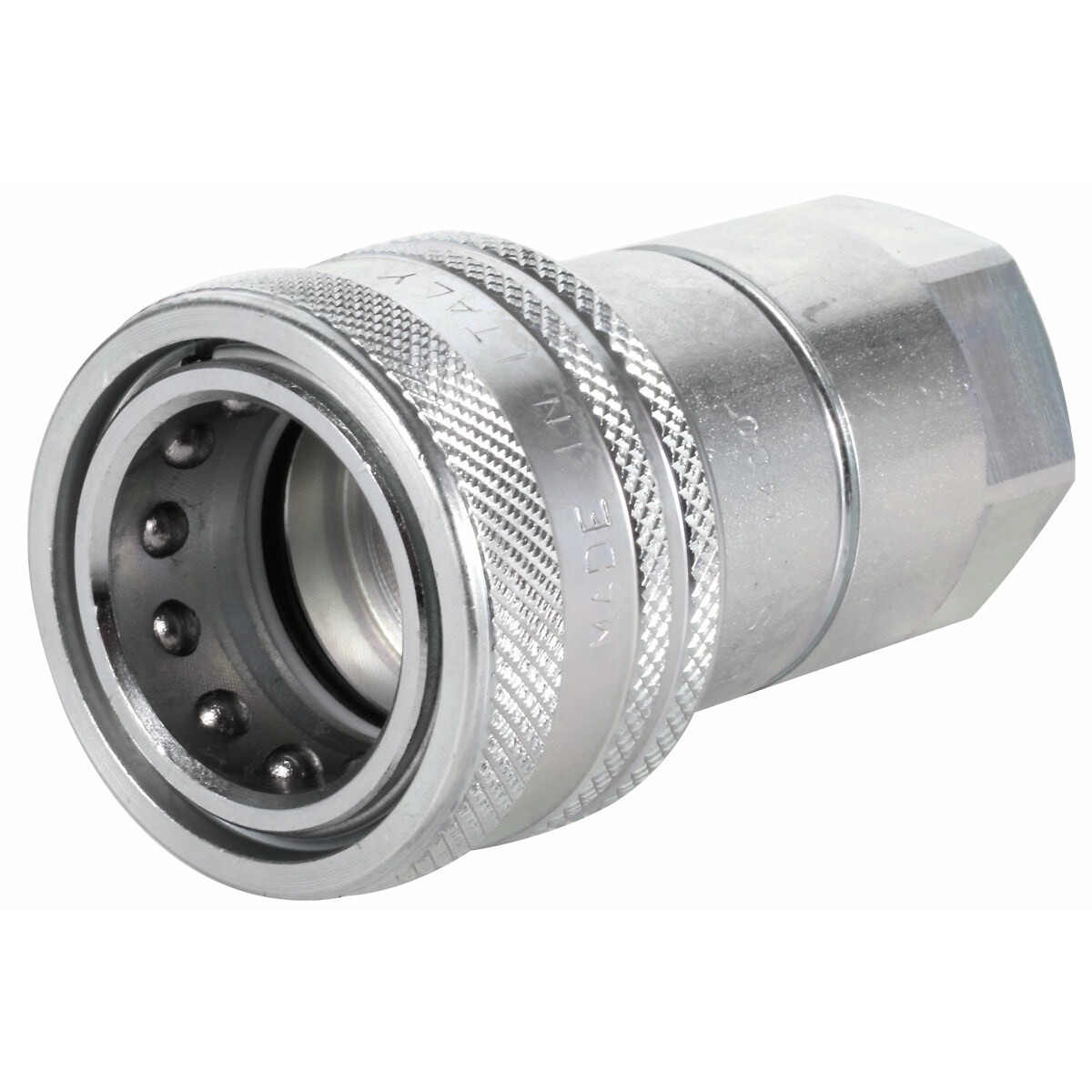

ĀTRĀ SAVIENOJUMA UZMAVA IEKŠĒJĀ 1″ BSP ISO A 7241-1 ĀTRĀK

Description

interchangeability according to ISO 7241-1 A standard | connection / disconnection not allowed under pressure | normal type quick coupling for agricultural use | size 1" | operating pressure 250 bar | flow 330 l/min | explosion pressure 1000 bar | A thread G 1"-11 | B 100 mm | D 56 mm | X 41 mm

Attributes

Thread: G 1" -11 | Package length (cm): 5.6 | Package width (cm): 5.6 | Package height (cm): 10 | Gross weight (kg): 0.754000 | EAN: 6418914892071
