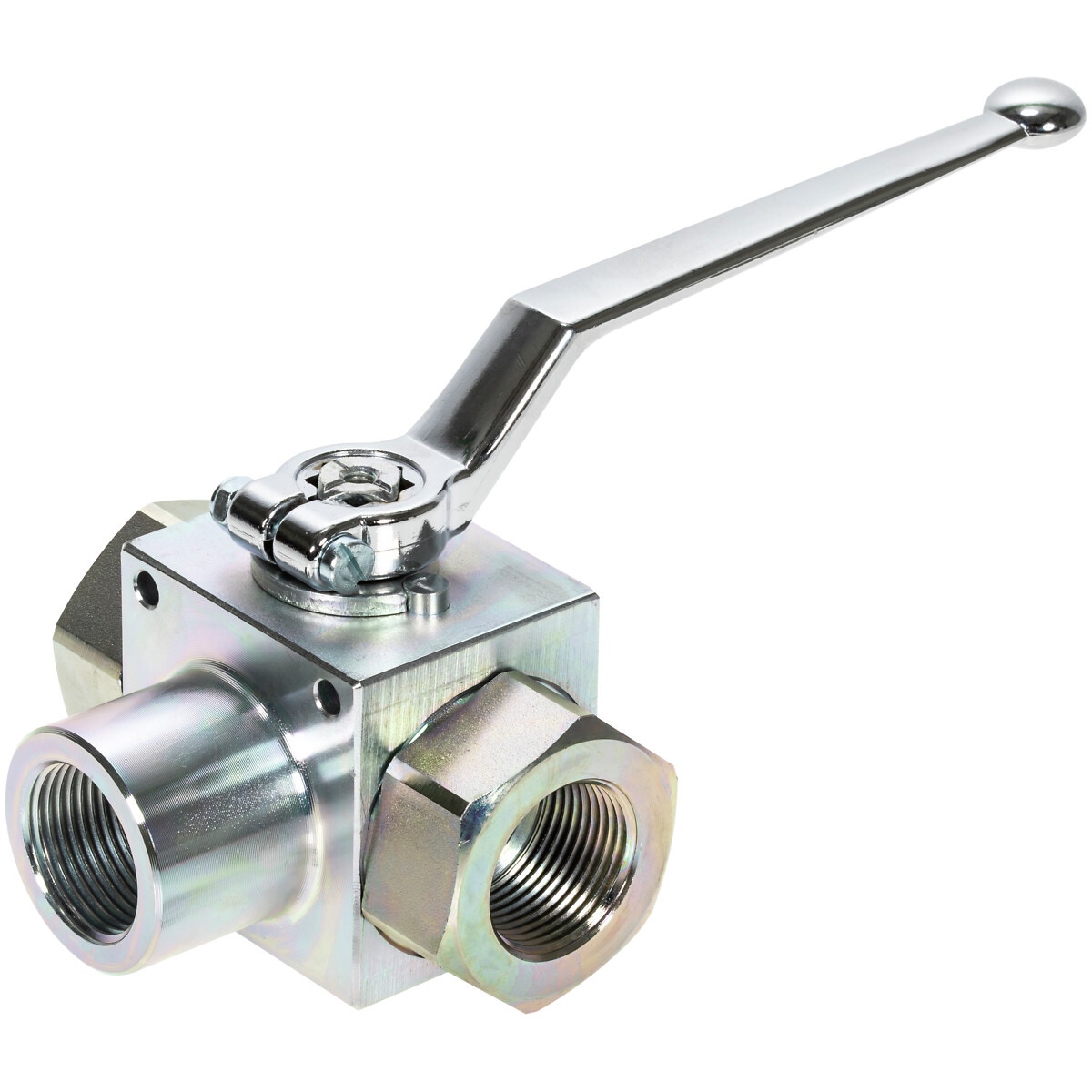

3 VIRZIENU LODVEIDA VĀRSTS BSP 1 420BAR T-VEIDA

Description

type L scheme, ports 1->2-3 or 1->3 can be chosen | material zinc-plated steel | NBR seals | operating temperature -0…+100 °C | hose DN 25 | thread G 1" | max. pressure 500 bar | A 65 | B 29.5 | C 112 | D 66.5 | E 14 | F 83.5 | G 55 | G1 89 | H 180 | I 116.5 | L 24 | ØM G 1" | CH 50 | SW 14 | ØLW 25 | weight 2.4 kg

Attributes

Thread: G 1" -11 | Package length (cm): 20 | Package width (cm): 9.5 | Package height (cm): 8.4 | Gross weight (kg): 2.285000 | EAN: 6418914198142
