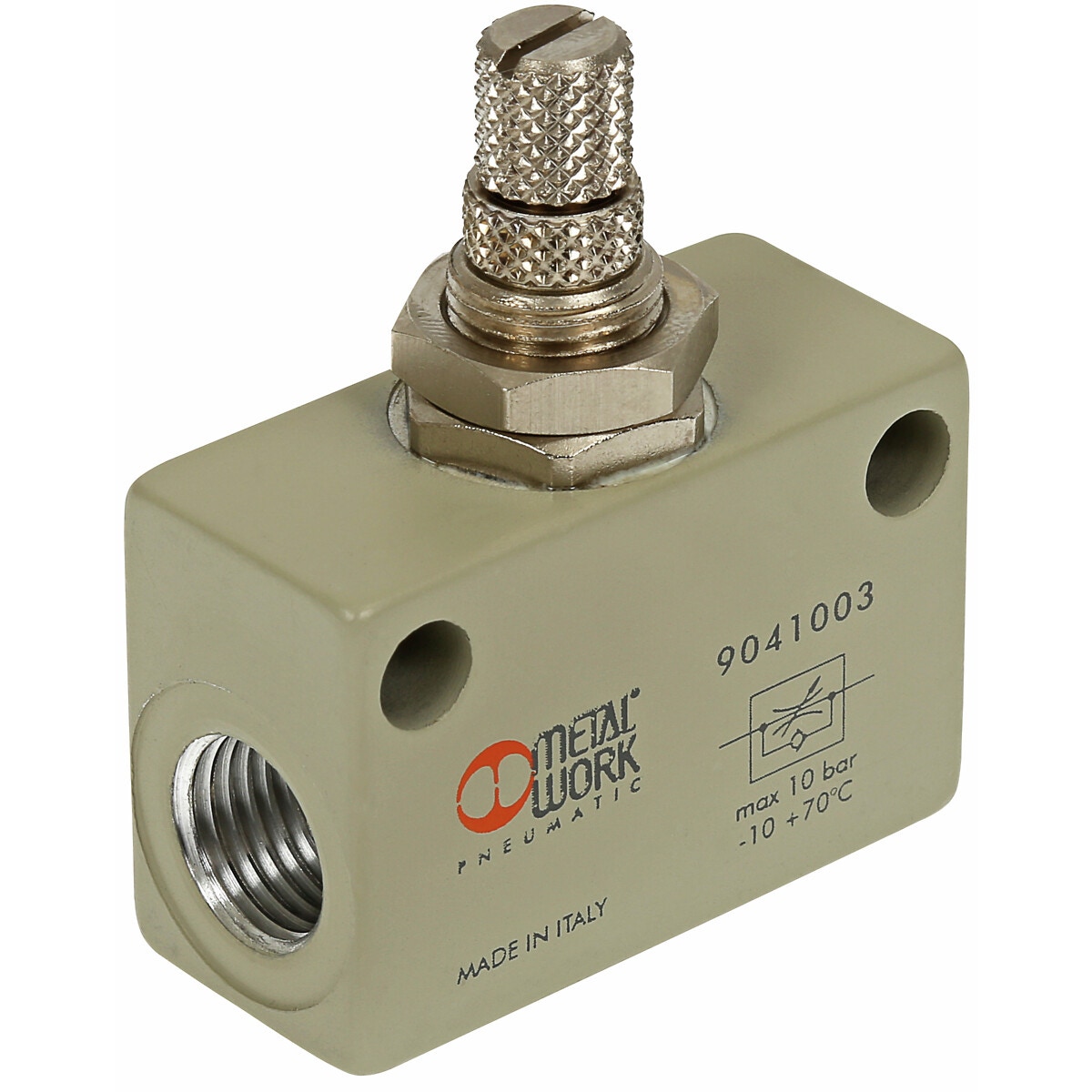

3/8" RFU check valve

Description

RFL series (type U) | the in-line flow regulator regulates the speed of the piston rod in the pneumatic cylinders | flow regulator valve is used to adjust flow speed of actuators in one direction; flow is free in the reverse one | regulation manual or with a screwdriver | material body aluminium, adjusting knob brass, seals NBR | thread G 3/8" | max. operating temperature +70 °C | max. pressure 10 bar | P 10 | E 35 | H M15x1 | Nmax 7.5 | A 50 | B 59 | C 25 | G 34 | I 22 | D 30 | M 25.5 | CH 20 | L 6.5

Attributes

Thread: G 3/8" -19 | Package length (cm): 5 | Package width (cm): 2.5 | Package height (cm): 5.9 | Gross weight (kg): 0.112000 | EAN: 8024986178968
