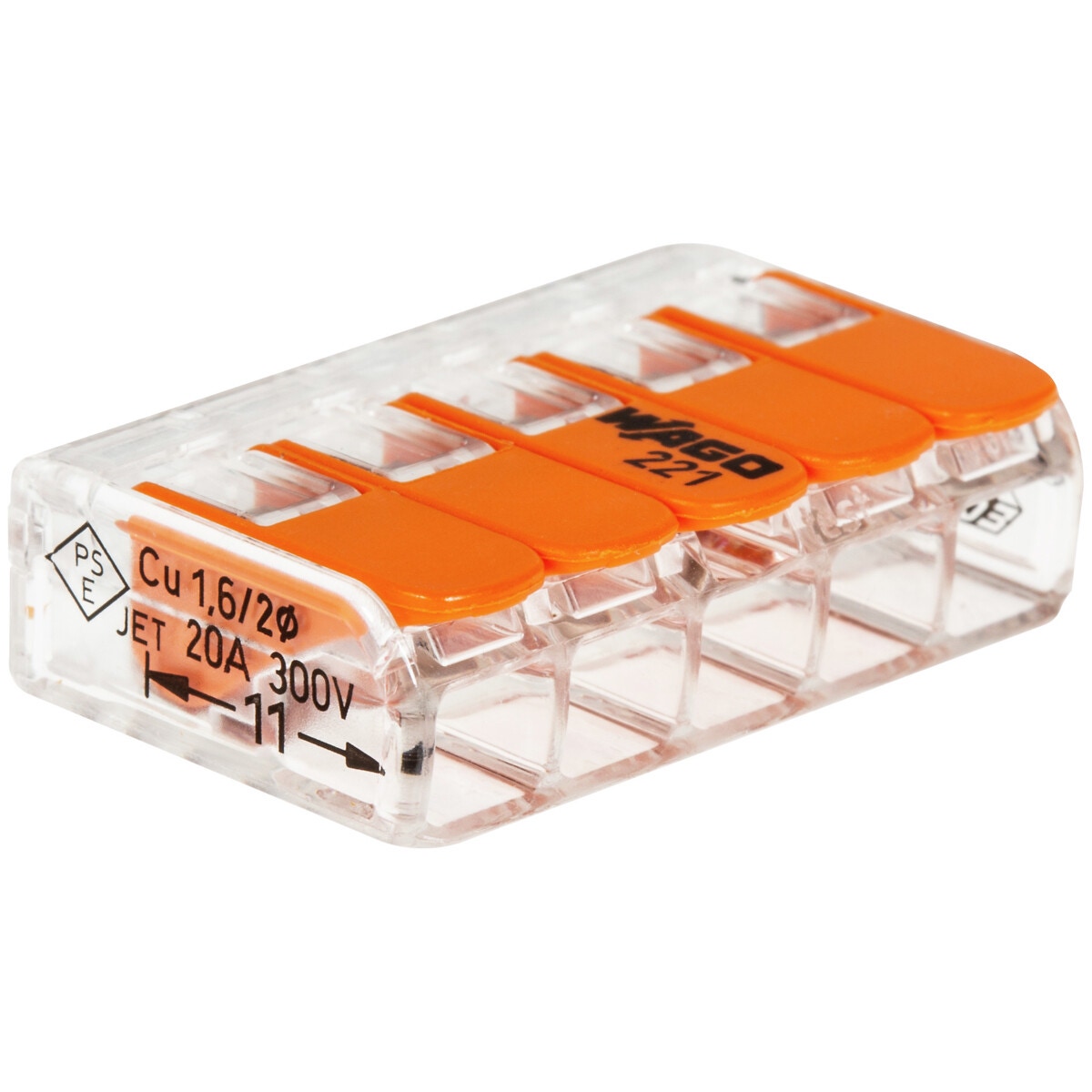

Wago 221 5-pin wire connector, 5 pcs.

Description

Wago 5-conductor connector for 0.14–4 mm² conductors | rated voltage 450 V | rated current 32 A | connection technology Cage Clamp® | solid conductor 0.2–4 mm² / 24 – 12 AWG | stranded conductor 0.2 – 4 mm² / 24 – 12 AWG | fine-stranded conductor 0.14 – 4 mm² / 24 – 12 AWG | strip length 11 mm | operating temperature -35…+105 °C | connect solid, stranded and fine-stranded conductors | time savings for installers and device manufacturers | quickly install devices with higher levels of power consumption | safely install long cable runs with larger conductor cross-sections | pull the lever up, insert a conductor and push the lever back down | dimensions W 29.9 x H 8.3 x D 18.6 mm | 5 pcs / package

Attributes

Package length (cm): 1 | Package width (cm): 9 | Package height (cm): 5 | Gross weight (kg): 0.025000 | EAN: 7331430057788
