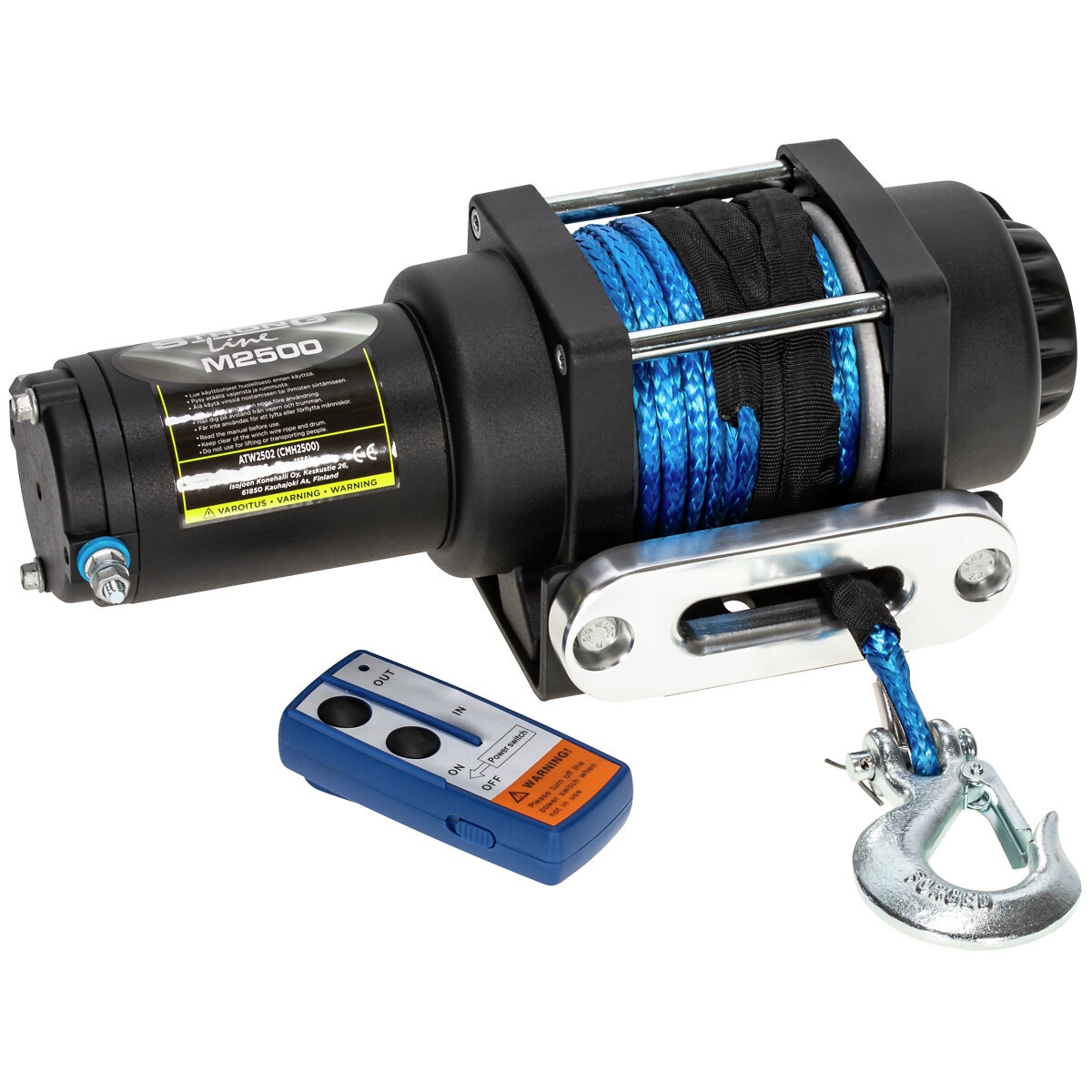

Powerful winch mechanism M2500, 12 V

Description

Technical parameters of the M2500 winch:

Towing capacity: 1136 kg (2500 lb)

Motors: 0.7 kW / 0.9 hp / 12 V

Protection class: IP65

Transmission: 3-speed planetary

Gear ratio: 136:1

Clutch: freewheel, activated by camera mechanism

Brake: dynamic

Synthetic rope dimensions: 4,0 mm × 15,2 m

Bunghole diameter: 52 mm

Drum length: 74 mm

Fairlead: aluminum

Hook size: 1/4\"

Controls: handlebar grip + wireless remote control

Recommended battery capacity: 450 CCA

Battery cables: 10 mm²

Cable length to the battery: 1.8 m

Winch dimensions (L × W × H): 334 × 118 × 115 mm

Weight: 10.5 kg

Attributes

Package length (cm): 30
Package width (cm): 42.5
Package height (cm): 18.5
Gross weight (kg): 10,1
EAN: 6418914973886
