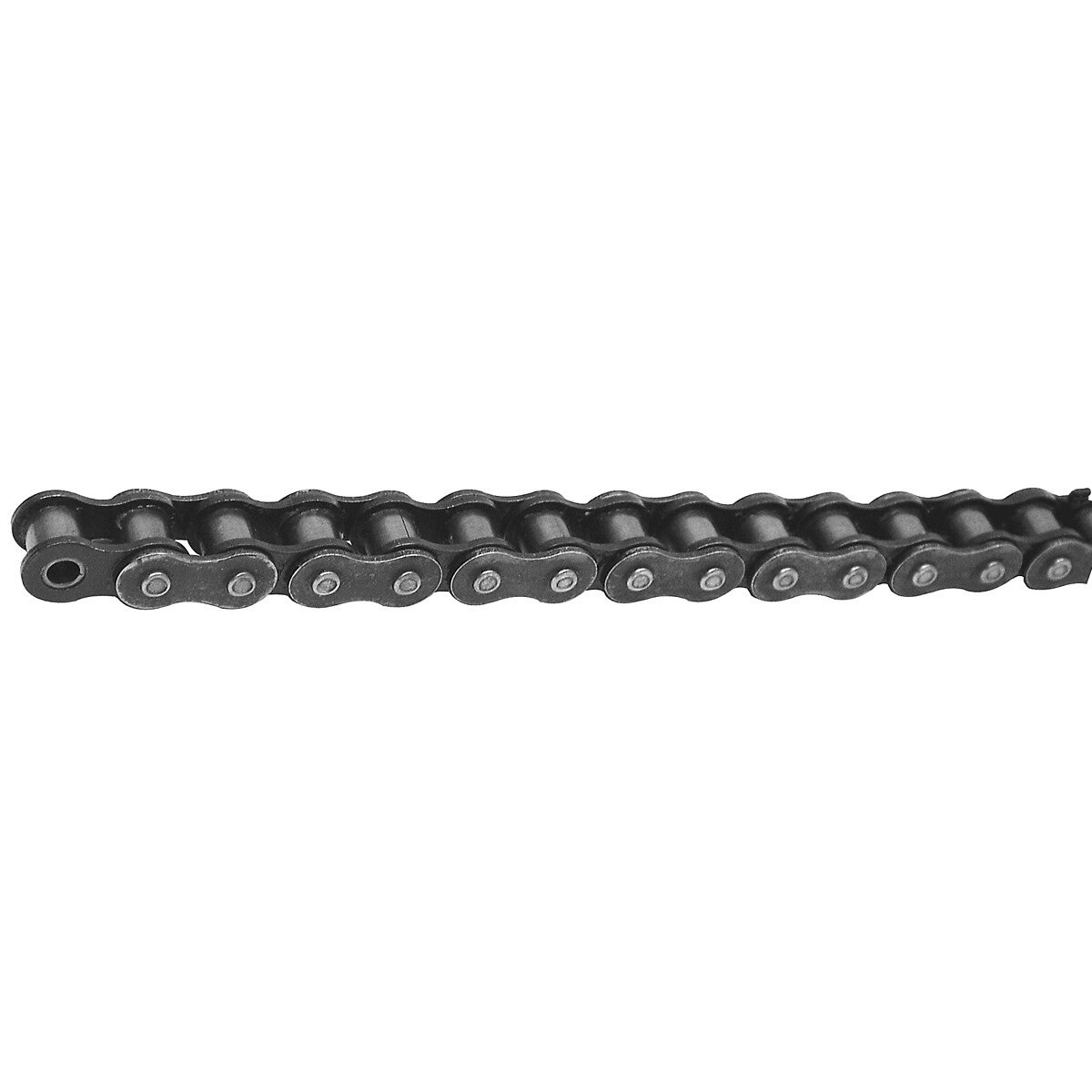

Rullīšu ķēde 1/2 din8187

Description

P pitch: 1/2" | Dr roller Ø: 8,51 mm | W inner width min.: 7,75 mm | Hi hight max.: 11,81 mm | S thickness: 1,63 / 1,40 mm | Dp pin diameter max.: 4,45 mm | A1 width of riveted pin: 16,50 mm | B width of pin: 24 mm | working surface: 50 mm² | measuring load: 120 N | min. breaking strength: 17,80 kN | average breaking strength: 18,60 kN | weight: 0,69 kg | economic product

Attributes

Package length (cm): 100 | Package width (cm): 3 | Package height (cm): 2.5 | Gross weight (kg): 0.708000 | EAN: 6418914089303
