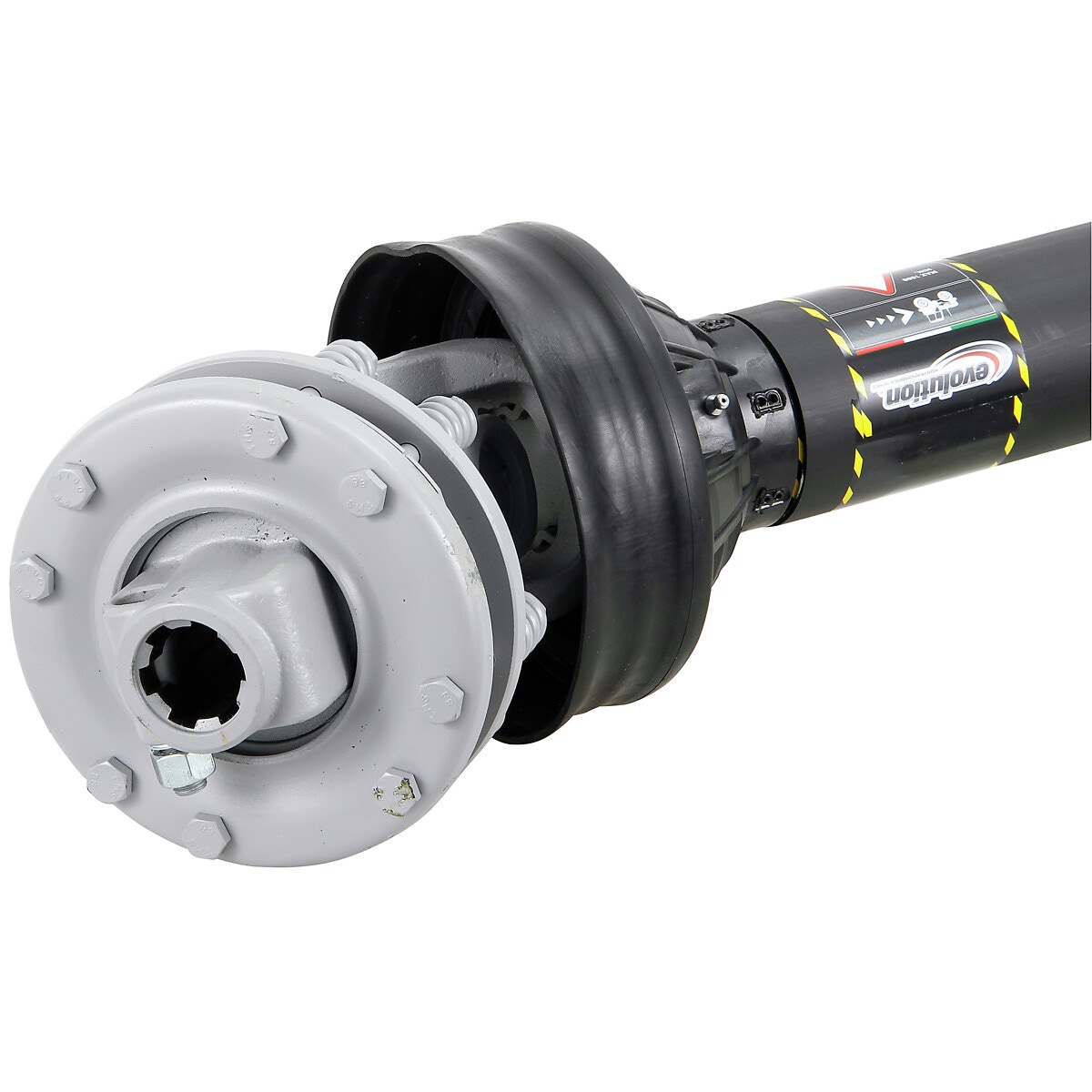

PTO shaft v10 1.3/4-6 friction clutch 1.3/4-6 evo

Description

type: V10 | plate clutch FF4 2000 Nm | outer yoke tractor end: 1.3/4”-6Z collar lock | outer yoke machine end: 1.3/4”-6Z pin lock | power 540 rpm: 106 kW / 145 hv / 1890 Nm | power 1000 rpm: 170 kW / 230 hv / 1630 Nm | length: L 860 mm, M min. 1190 mm, M max. 1530 mm | universal joint: A/B: 42 x 104 mm | inner tube: star profile A 61 mm, B 47 mm, S 4.5 mm | outer tube: star profile A 71.5 mm, B 57.5 mm, S 5 mm | suggested applications: trailers, snow blowers, mulchers, wood chippers, peat production machines, etc. | See drawing for dimension references. | Calculations made based on continuous load: joint angle 5°, 1000 operating hours

Attributes

Universal joint size: 42 x 104 mm | Spline type: 1 3/4" Z6 | Profile tube type: Star | Package length (cm): 118 | Package width (cm): 19 | Package height (cm): 19 | Gross weight (kg): 42.150000 | EAN: 6418914870772
