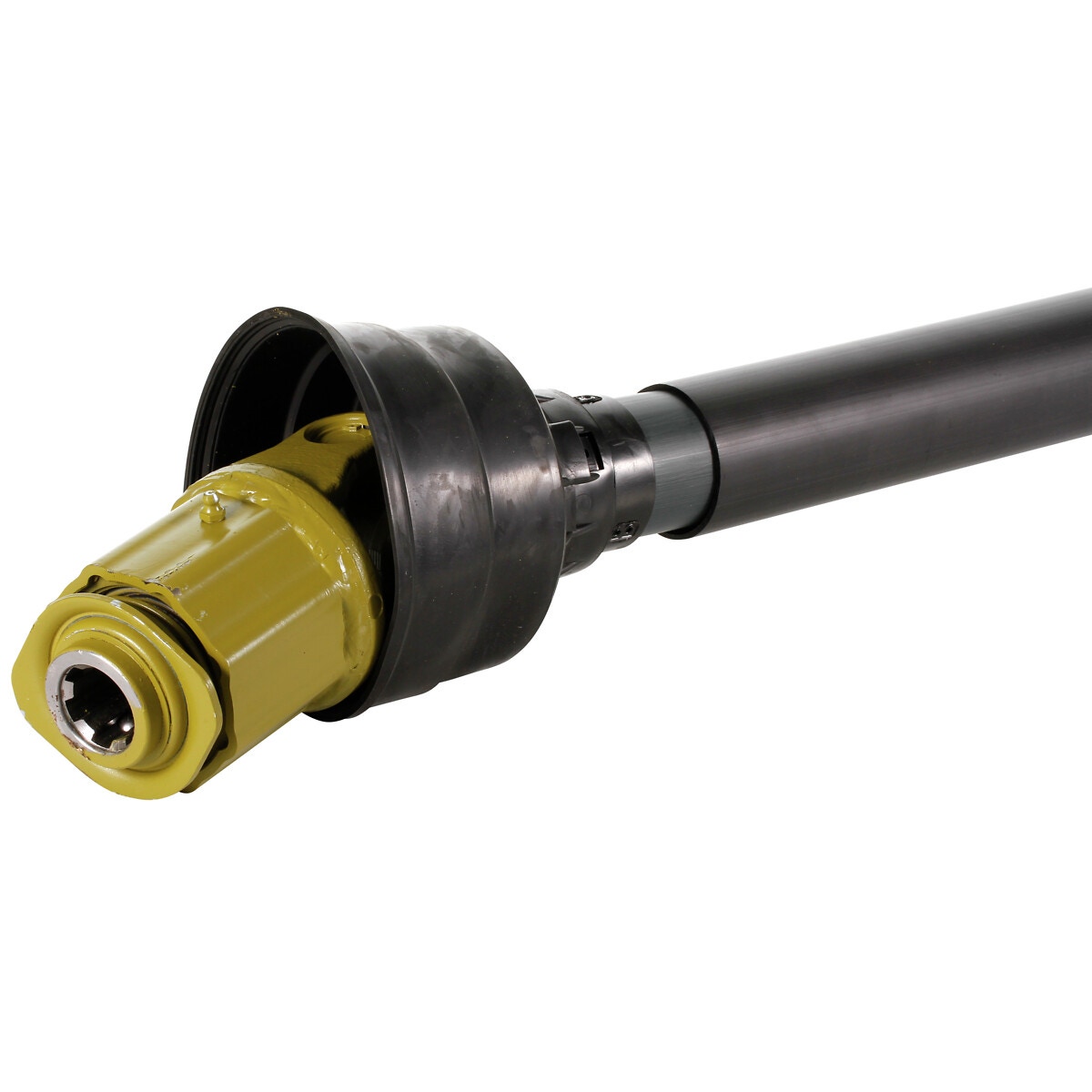

Pto shaft b104 1.3/8-6 radial pin coupling 1.3/8-6

Description

type: B04 (104), radial pin clutch 900 Nm | splines: 6 | power 540 rpm: 26 kW / 35 hp / 460 Mn | power 1000 rpm: 40 kW / 55 hp / 380 Mn | length: L 860 mm, M min. 1140 mm, M max 1560 mm | A/B: 27 x 74,6 mm | A 36 mm, S 4,5 mm | A 43,5 mm, S 3,4 mm | instructional targets of use: rakers, tedders, mowers, small sprinkler pumps, trailers, skidders, fertilizer spreaders, disc and drum mowers, small balers, potato and beet machines, pick trailers, circular saws, wood chippers etc. | basis of calculation: joint angle 5°, life 1000 h

Attributes

Universal joint size: 27 x 74,6 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 113 | Package width (cm): 16 | Package height (cm): 16 | Gross weight (kg): 15.560000 | EAN: 6418914648449
