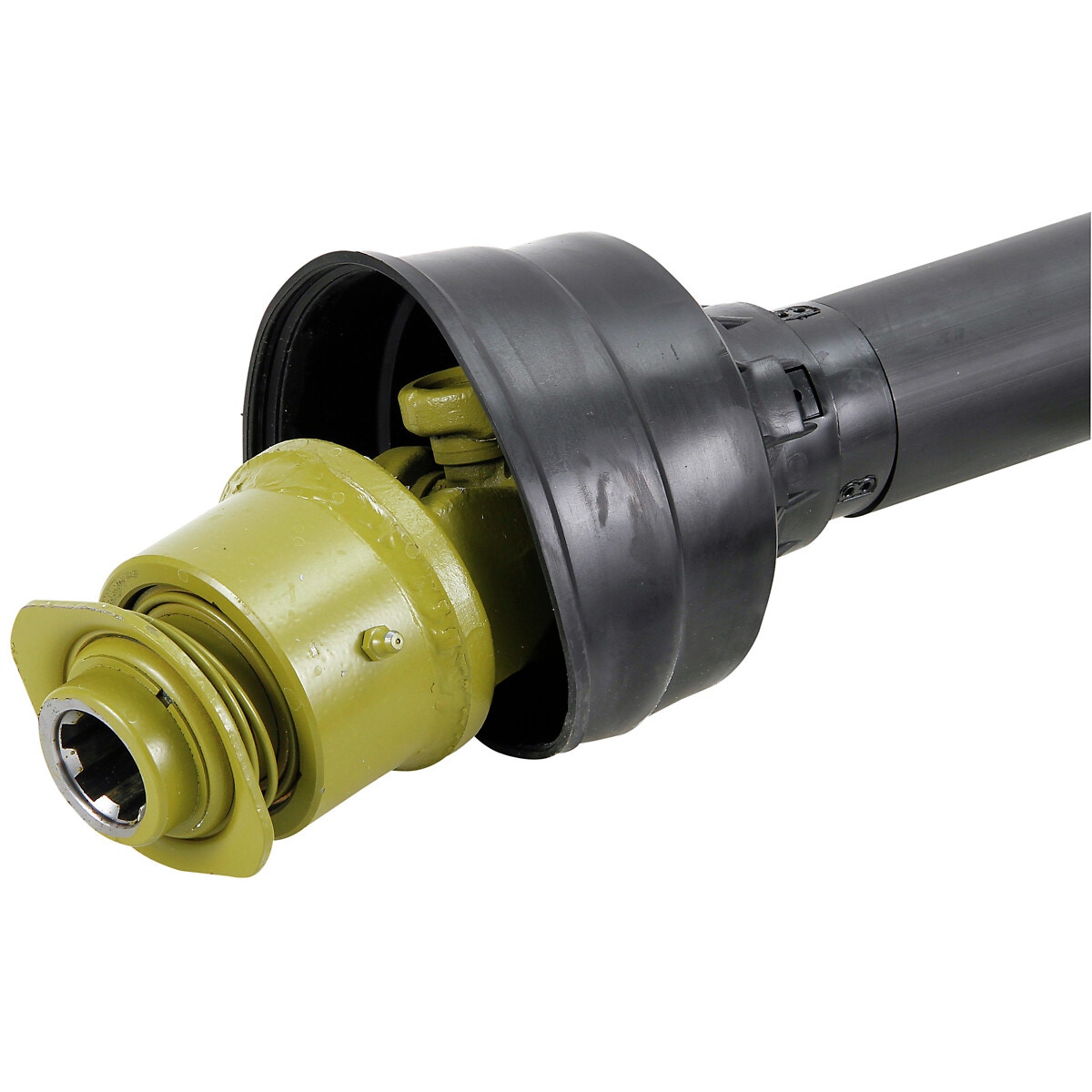

Pto vārpsta b104 1.3/8-6 pārnesuma sajūgs 1.3/8-6

Description

type: B04 (104), overrunning clutch | splines: 6 | power 540 rpm: 26 kW / 35 hp / 460 Mn | power 1000 rpm: 40 kW / 55 hp / 380 Mn | length: L 860 mm, M min. 1105 mm, M max 1535 mm | A/B: 27 x 74.6 mm | A 36 mm, S 4,5 mm | A 43,5 mm, S 3,4 mm | max. static load limit: 780 Nm | instructional targets of use: rakers, tedders, mowers, small sprinkler pumps, trailers, skidders, fertilizer spreaders, disc and drum mowers, small balers, potato and beet machines, pick trailers, circular saws, wood chippers etc. | basis of calculation: joint angle 5°, life 1000 h

Attributes

Universal joint size: 27 x 74,6 mm | Spline type: 1 3/8" Z6 | Profile tube type: Triangular | Package length (cm): 113 | Package width (cm): 22 | Package height (cm): 14.5 | Gross weight (kg): 15.180000 | EAN: 6418914648432
