PTFE ŠĻŪTENE 3/8 AR GLUDU URBUMU FHM

Description

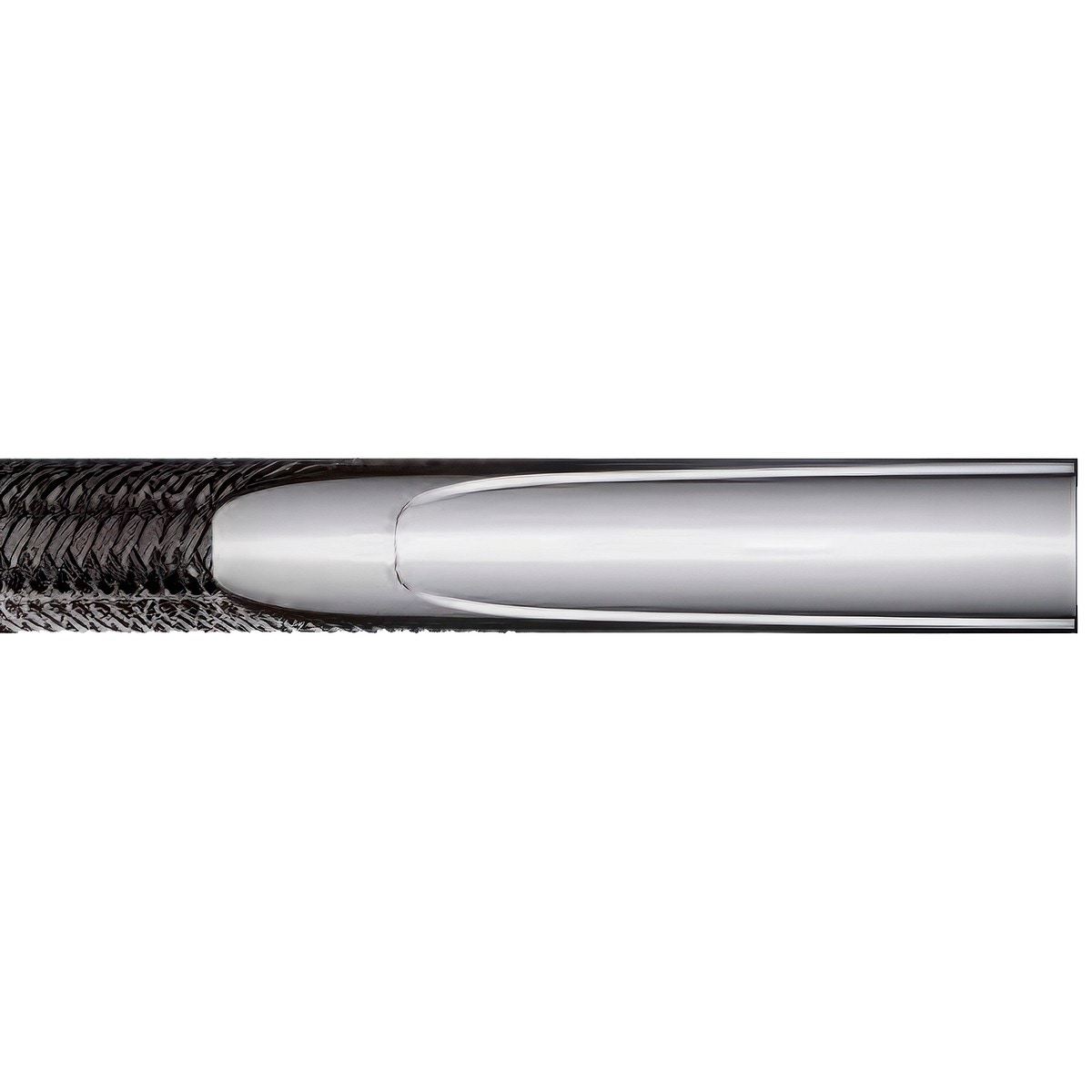

smooth-surfaced teflon hose | reinforcement one braid of stainless steel AISI 304 | inner surface polytetrafluoroethylene (PTFE) | applications: aggressive chemicals transfer systems, compressed air and gases, high or low temperature fluid or gas transfer | working temperature range -70…+260 °C | nominal size -06 | hose DN 10 | inner Ø 3/8" | inner Ø 9.5 mm | outer Ø 12,8 mm | thickness 0.9 mm | operating pressure 135 bar | explosion pressure 540 bar | bending radius 55 mm | weight 170 g/m

Attributes

Hose inner Ø (mm): 10 | Hose inner Ø (mm): 10.00 | Hose inner Ø (inch): 3/8" | Package length (cm): 30 | Package width (cm): 30 | Package height (cm): 1.3 | Gross weight (kg): 0.178000 | EAN: 6418914236424
