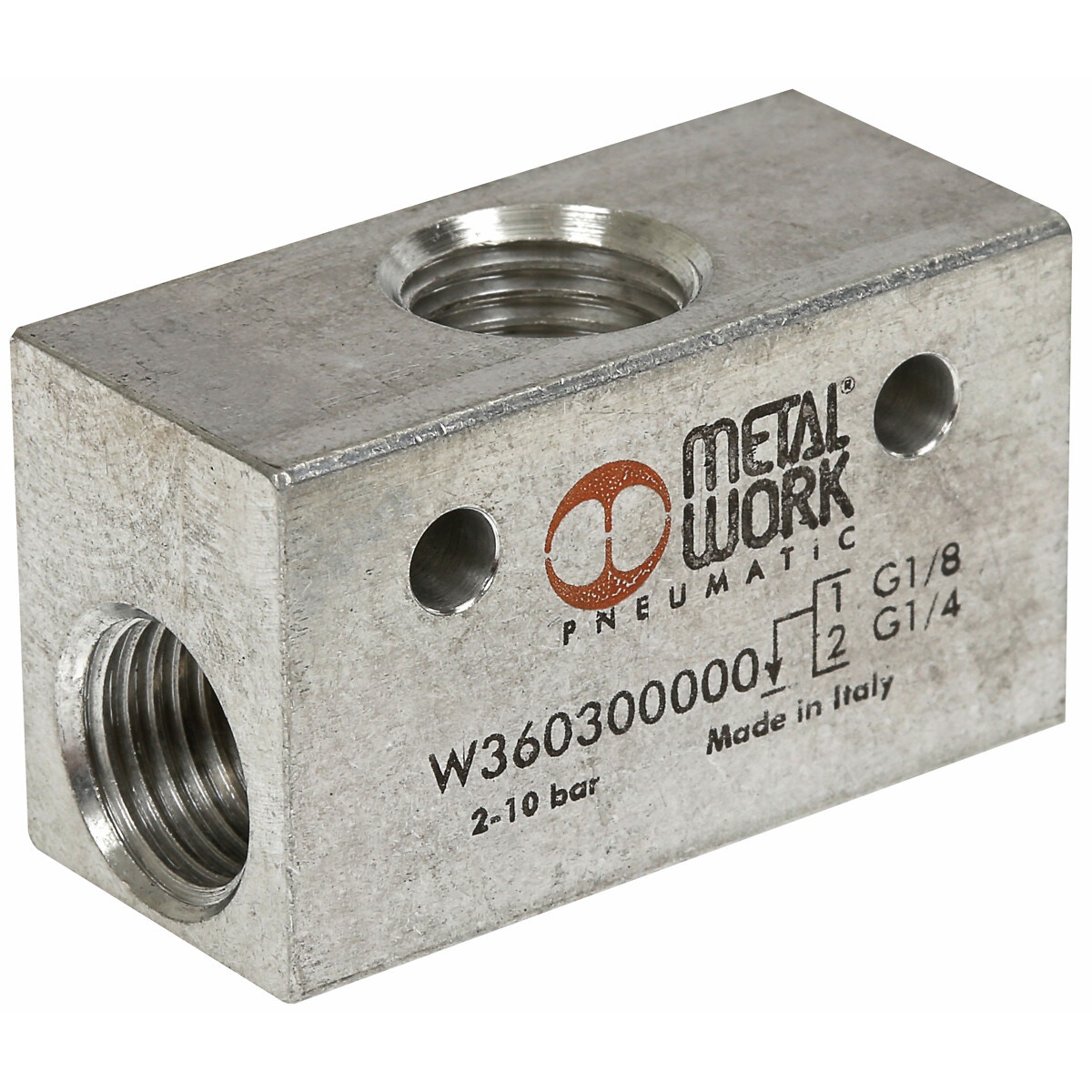

Transition valve 1/4

Description

VOR series | circuit selector valves select two separate input signal without creating reciprocal interference, giving a single output signal | material body passivated aluminium, insert brass, seal NBR, | thread G 1/4" | operating pressure 2 – 10 bar | flow rate at 6 bar (pressure drop 1,0 bar) 1300 Nl/min | operating temperature -10…+80 °C | fluid: lubricated or unlubricated filtered air | A 43 | C 25 | G 20 | H 8.5 | E 6.5 | B 25 | F 1/4" | Ø 4.5

Attributes

Thread: G 1/4" -19 | Package length (cm): 4.3 | Package width (cm): 2 | Package height (cm): 2.5 | Gross weight (kg): 0.051000 | EAN: 8024986016598
