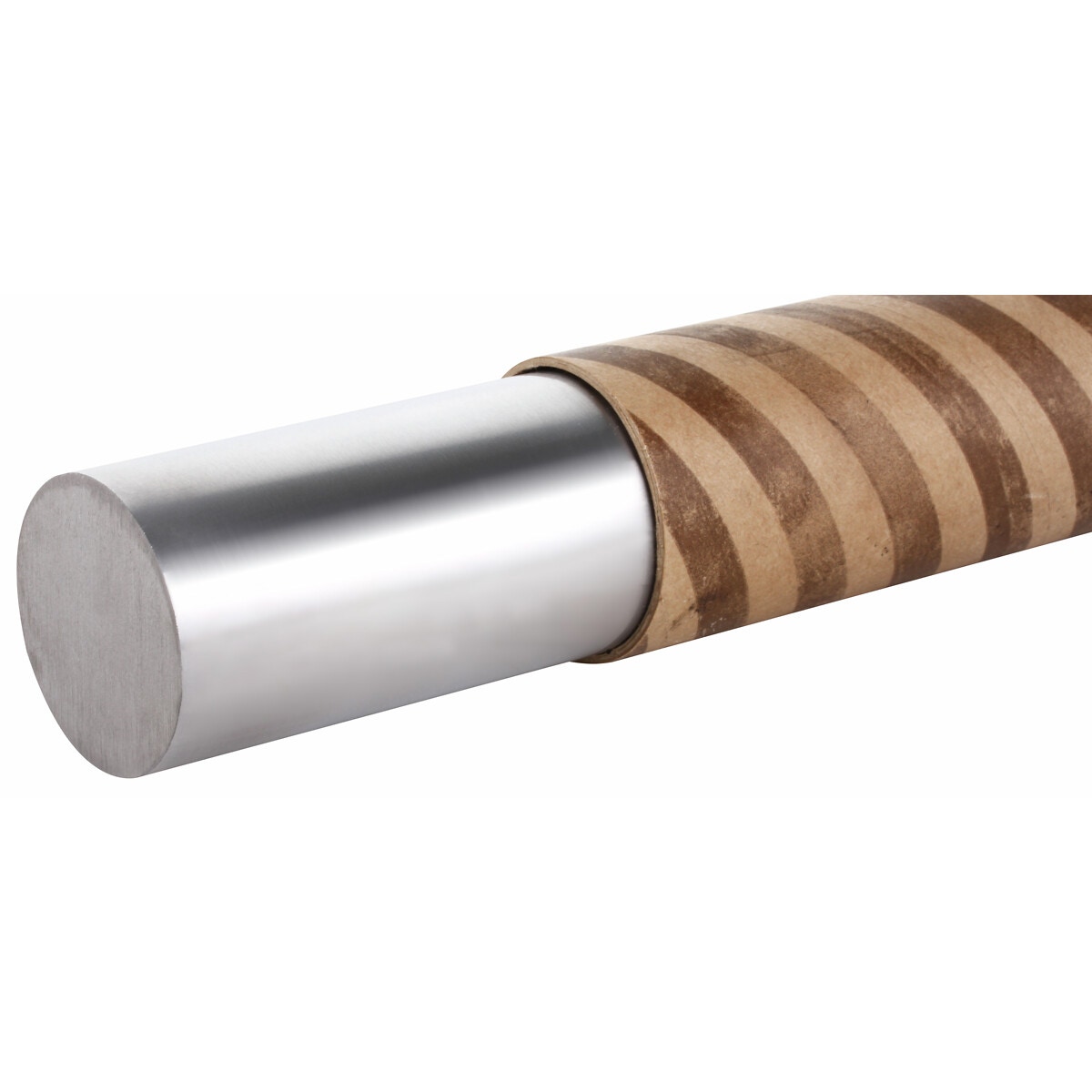

Chrome-plated bar, 20x1000 mm

Description

Chrome-plated bar Thalachrome S | used for pins, shafts, and hydraulic bars | dimensions Ø 20 mm x 1000 mm | tolerance ISO f7 | straightness 0.2 mm / 1000 mm | corrosion resistance: 216 h NSS Class 9 | plating thickness ≥ 20 µ min | plating hardness 900 HV 0.1 min | plating grain size max. 0.07–0.2 µ | bar material: 20MnV6 | cardboard-protected packaging | cut with a saw | grind off the chrome plating before drilling a hole | can be welded | suitable for plain bearing LFB0922020

Attributes

Diameter (mm): 20 | Diameter (mm): 20.00 | Package length (cm): 100 | Package width (cm): 2.4 | Package height (cm): 2.4 | Gross weight (kg): 2.520000 | EAN: 6418914908406
