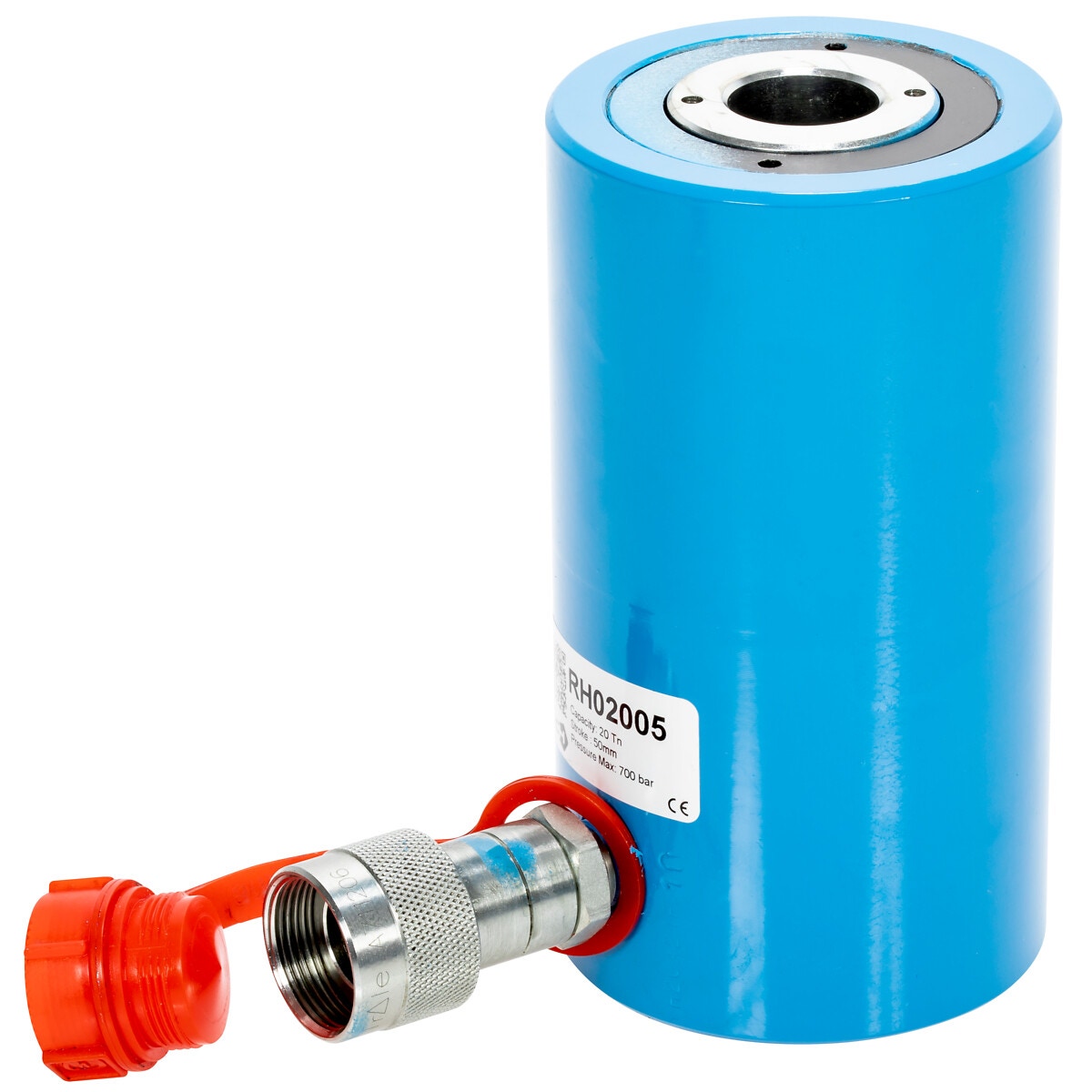

Hydraulic cylinder 20 t 70/48 punched model, unidirectional

Description

high-quality hydraulic cylinders for professional use by GC-Hydraulics | wide range of different lifting and pulling cylinders and accessories | RH-series cylinder suitable for a wide range of lifting work | with a hole in the middle of the cylinder it can be used for pulling, e.g. to tighten bolts or cables | internal threads at the bottom of the cylinder for secure anchoring | single acting | with spring return | works in all positions | cylinder capacity 20.0 ton | press force 198.1 kN | stroke 48 mm | A 172 mm, B 220 mm, D 95 mm, E 70 mm, F 50.5 mm, Y 27.5 mm | oil volume 139 cm³ | weight 7.1 kg

Attributes

Package length (cm): 29 | Package width (cm): 20 | Package height (cm): 12.5 | Gross weight (kg): 7.800000 | EAN: 6418914212954
