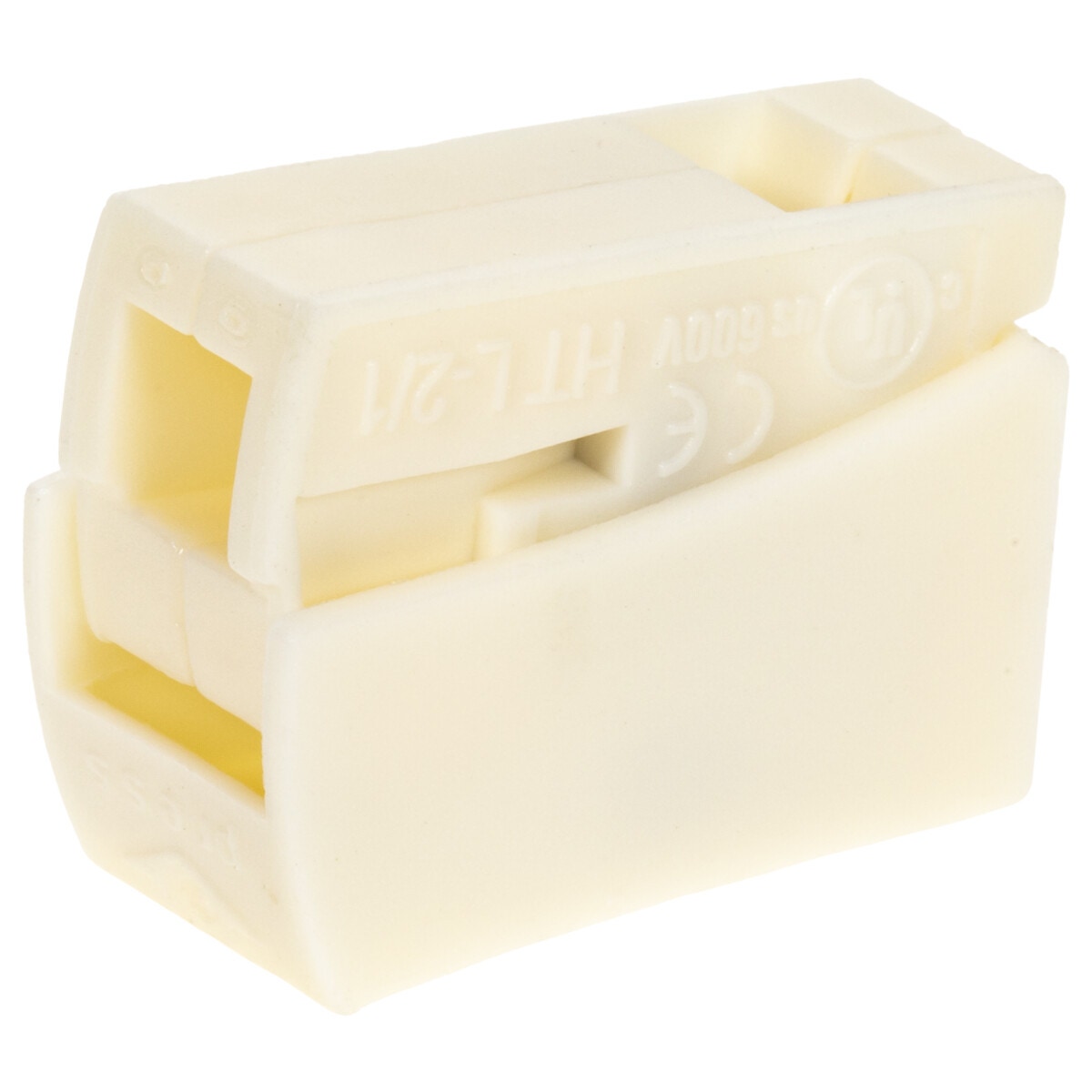

Helacon wire connector 2/1-pole, ML/MKEM, 10 pcs.

Description

the HelaCon series wire connectors make connecting wires easy, fast and reliable | separate installation hole and springs for each wire | HelaCon Lux is suitable for solid, stranded and fine stranded conductors | the typical application is lighting installation, where the solid conductor from concealed cabling has to be connected to a flexible cable for lighting or other device | installation side: 1 x 0,75 – 2,5 mm² solid conductor | lighting input: 2 x 0,5 – 2,5 mm² solid, stranded and fine-stranded conductors | ceiling lights are easy to connect without tools in cumbersome and confined spaces | max. rated voltage 450 V | max. rated current 24 A | conductors 3 | material polyamide 6.6 (PA66) | halogen-free | flammability rating UL94 V2 | temperature range -5…+100 °C | CEBEC, cULus, EN 60998-2-2:1993, ENEC, FIMKO, VDE

Attributes

Package length (cm): 11 | Package width (cm): 5.7 | Package height (cm): 3.2 | Gross weight (kg): 0.031000 | EAN: 4031026614007
