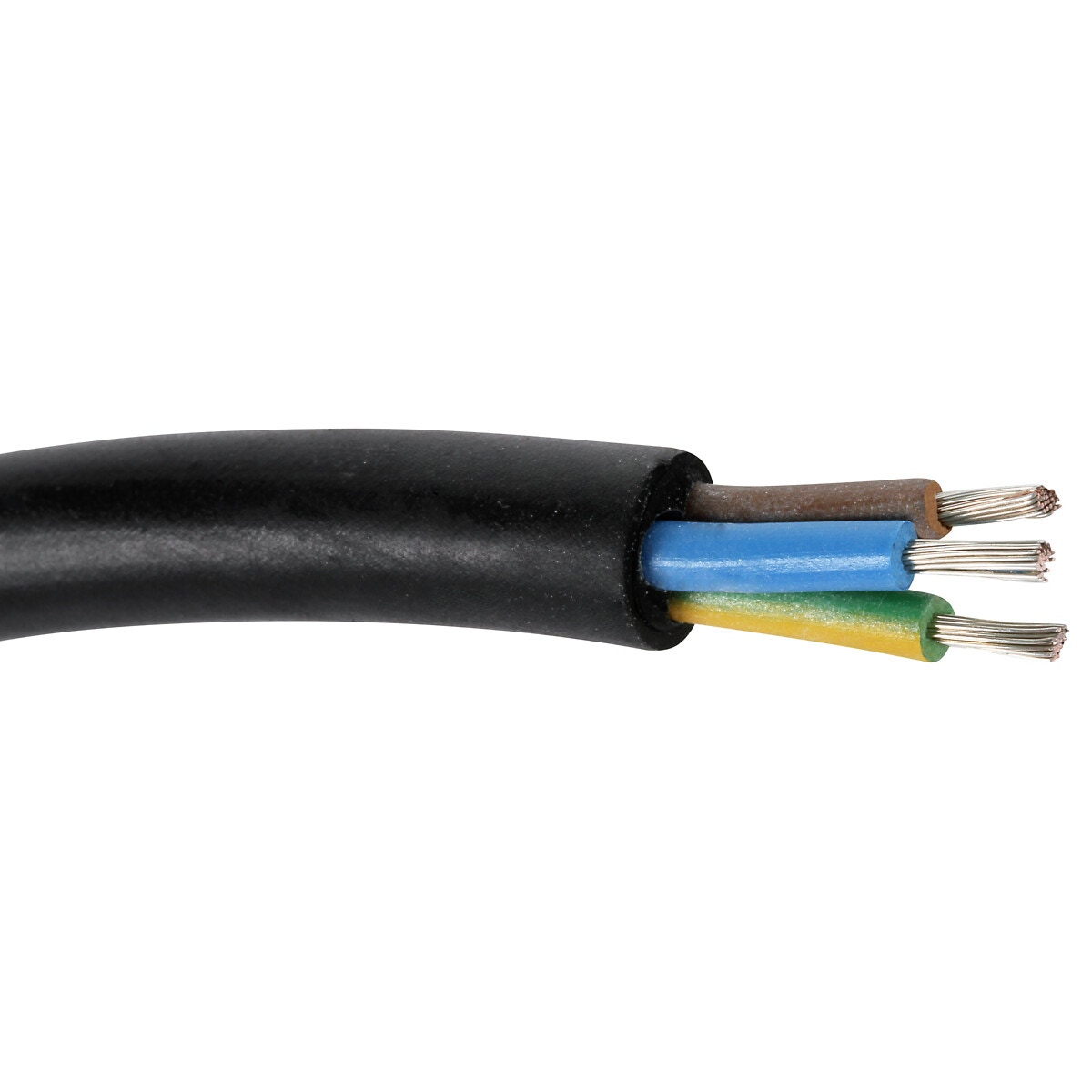

Rubber cable h07rn-f 3×1,5mm tele-phonics

Description

flexible EPR insulated and neoprene sheathed cable | for medium mechanical stress in dry, dusty and wet conditions, applications e.g. inspections lamps, domestic, agricultural and industrial tools | voltage 450/750 V | oil and weather resistant, UV protection | 3-core green-yellow, blue, brown | number and cross-sectional area of conductor 3 x 1,5 mm² | conductor outer diameter Ø 0,26 mm | nominal thickness of insulation 0,8 mm | nominal thickness of jacket 1,6 mm | cable outer diameter Ø 9,9 mm | max. conductor operating temperature +60°C | lowest installation temperature -25°C | max. short-circuit conductor temperature +200°C | flame retardant EN 60332-1-2 (IEC 60332-1) | meets requirements of RoHS directive 2002/95/CE and Low-Voltage directive 2006/95/EC

Attributes

Package length (cm): 100 | Package width (cm): 0.9 | Package height (cm): 0.9 | Gross weight (kg): 0.135000 | EAN: 8428722059946
