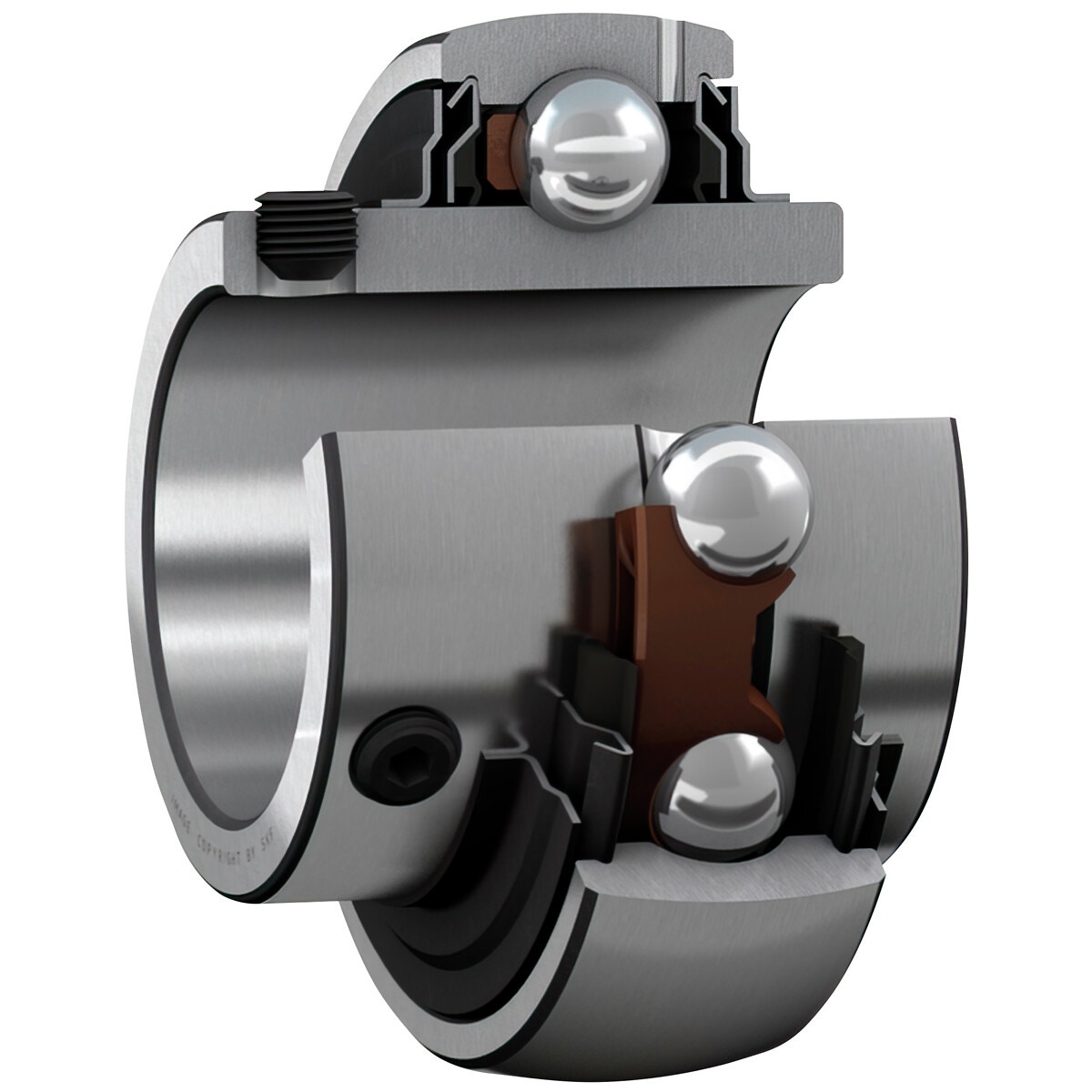

Bearing for ucf 208/h, ucfl 208/h, ucp 208/h, ucfc

Description

bore diameter (d) 40 mm | outer diameter (D) 80 mm | inner ring width (B) 49.2 mm | outer ring width (C) 21 mm | outer diameter, inner ring (d1) 51.8 mm | distance from the side face of the locking device to the thread center (B4) 8 mm | chamfer dimension (r1,2) min. 1 mm | distance from the side face of the locking device to the raceway center (s1) 30.2 mm | basic dynamic load rating (C) 30.7 kN | basic static load rating (C0) 19 kN | fatigue load limit (Pu) 0.8 kN | limiting speed 4800 r/min | calculation factor (f0) 14

Attributes

Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 80 | Outer diameter Ø (mm): 80.00 | Package length (cm): 8.2 | Package width (cm): 8.5 | Package height (cm): 5.3 | Gross weight (kg): 0.614000 | EAN: 7316577027559
