DŽOISTIKS ERGO-PRO FOREST CRAIN DŽOISTIKS UN A TIPA KABĪNE

Description

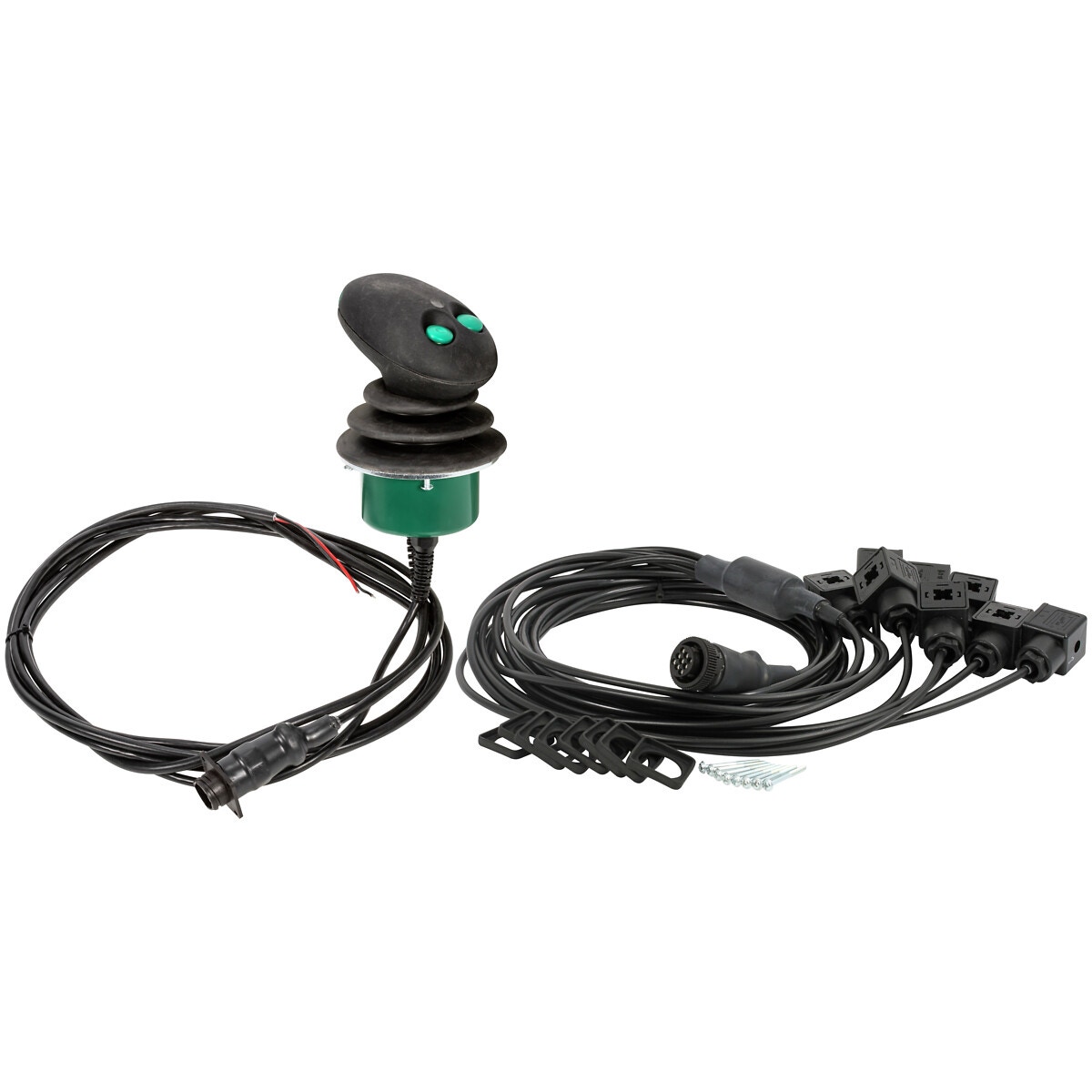

digital joystick with built-in electronics for steering hydraulic valves | joystick can be installed to a new system or replace the old one, eg. IPS / VCU / EHC steering systems with handles | preprogrammed for use with a forest loader, but also suitable for other lifts of a similar style | PRO joystick has an integrated 2.5 m cable followed by Hirschmann cable set (FM2031) | this joystick can be used to replace, for example, the steering system of an old machine with type A connectors (Hirschmann) | great ergonomic features | easy to install | easy to program user- / machine-specific adjustments and settings | large-scale adjustment possibilites such as blind spots, start and maxinum speed adjustment, start and stop ramp adjustment | suitable for steering most of the proportional valves on the market | on special order, the joystick can be equipped with additional buttons, so that the joystick can steer up to 6 different functions at the same time by one hand | protection circuit monitors for possible incorrect values, automatically switching off the power in the event of a fault | all electronics are inside the joystick | LED - light flashes if something is wrong | automatic recover after the fault | temperature and voltage compensation | protected against voltage spikes occurring during normal operation | read the user and installation manual carefully before use | the warranty does not cover products installed incorrectly | voltage 12 / 24 V | steering PMW 100 Hz | max. 1500 mA | 8 channels: 6 analog (proportional functions) and 2 digital (on-off) | grip made of casted plastic with fiber glass inforcement | body made of stainless steel and aluminium | mounting holes 4 pcs 6 mm | height 185 mm, Ø 120 mm | weight 720 g

Attributes

Package length (cm): 21 | Package width (cm): 9 | Package height (cm): 14.8 | Gross weight (kg): 0.874000 | EAN: 6418914114791
