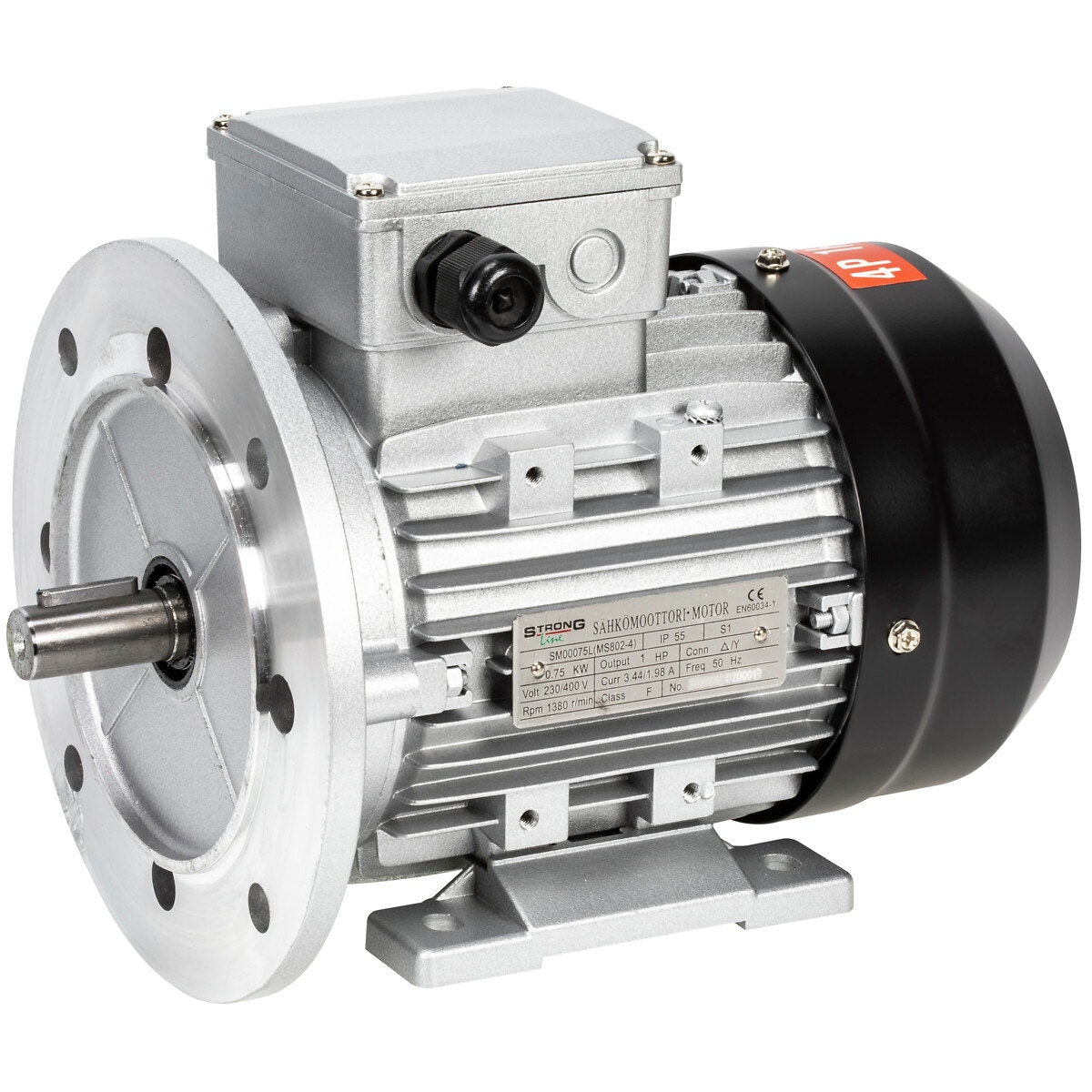

Electric motor 230/400 V, 0.75 kW, 1380 rpm, B35

Description

power 0.75 kW / 1 hp | voltage 230/400 V (not suitable for star-delta starting) | speed 1380 rpm | rated current 1.98 A | protection class IP55 | insulation class F | shaft Ø 19 x L 40 mm | mounting type B35 (distance between mounting holes 125 x 100 mm, hole Ø 10 mm) | applications: suitable for many devices with flange mounting, e.g., grain coils, fans, pumps, etc. | B5 flange mounting, using intermediate flanges, can be mounted to the shaft of a hydraulic pump motor, for example. | B3 means that the motor also has legs, i.e., it can be mounted as a standard motor. The legs are also detachable if the flange mounting method is used. | A 125 | B 100 | C 50 | D 19 | E 40 | F 6 | G 15.5 | H 80 | K 10 | M 165 | N 130 | P 200 | R 0 | S 12 | T 3.5 | AB 165 | AC 175 | AD 145 | HD 220 | HF 185 | L 295

Attributes

Package length (cm): 21.5 | Package width (cm): 33 | Package height (cm): 28 | Gross weight (kg): 9.800000 | EAN: 6418914866294
