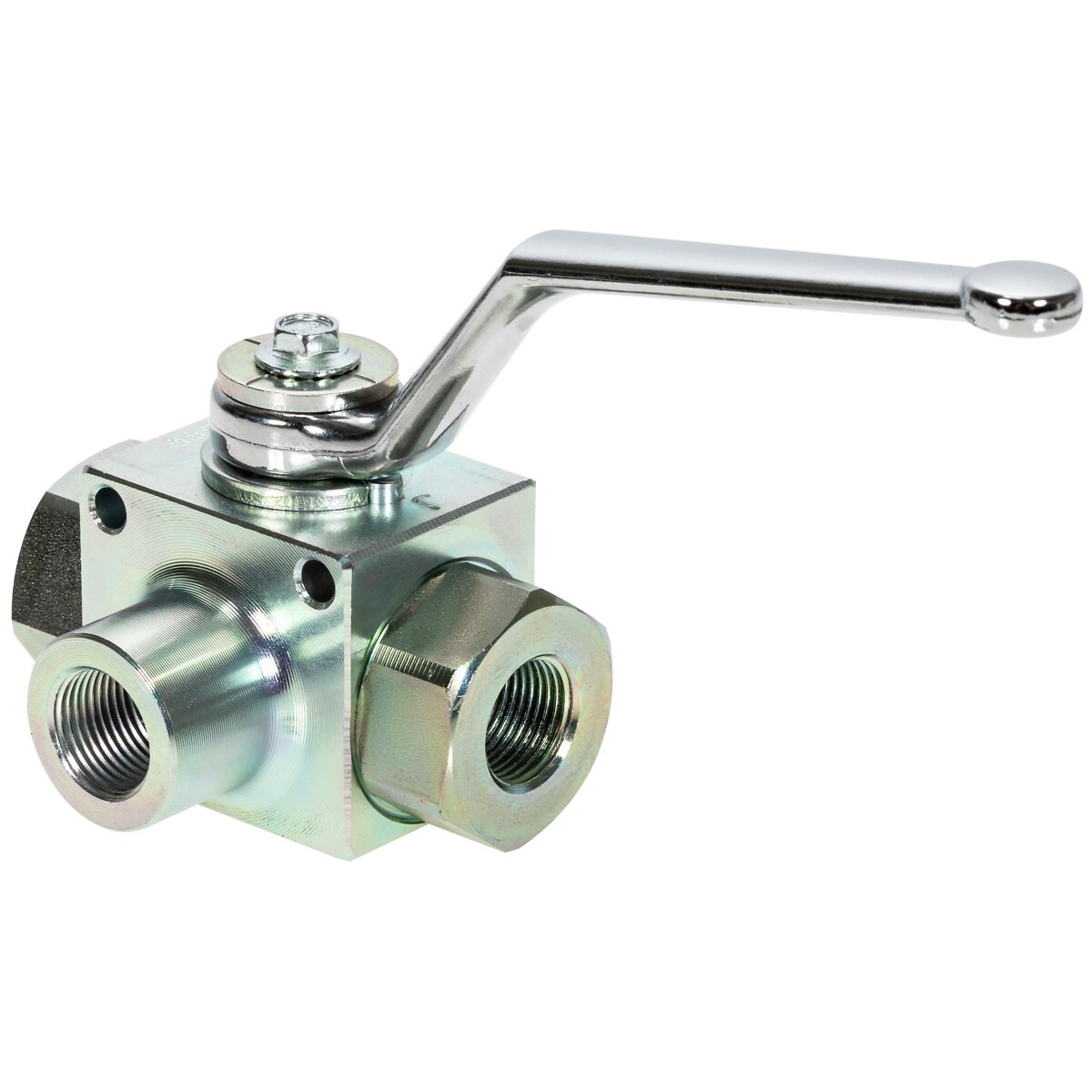

3-WAY BALL VALVE BSP 3/8 500BAR T-WAY

Description

type L scheme, ports 1->2-3 or 1->3 can be chosen | material zinc-plated steel | NBR seals | operating temperature -0…+100 °C | hose DN 10 | thread G 3/8” | max. pressure 500 bar | A 40 | B 17.4 | C 73 | D 44.4 | E 11 | F 54.25 | G 35 | G1 54.5 | H 110 | I 96.5 | L 15.5 | ØM G 3/8" | CH 30 | SW 9 | ØLW 10 | weight 0.69 kg

Attributes

Thread: G 3/8" -19 | Package length (cm): 13.2 | Package width (cm): 9.2 | Package height (cm): 7.4 | Gross weight (kg): 0.658000 | EAN: 6418914198111
