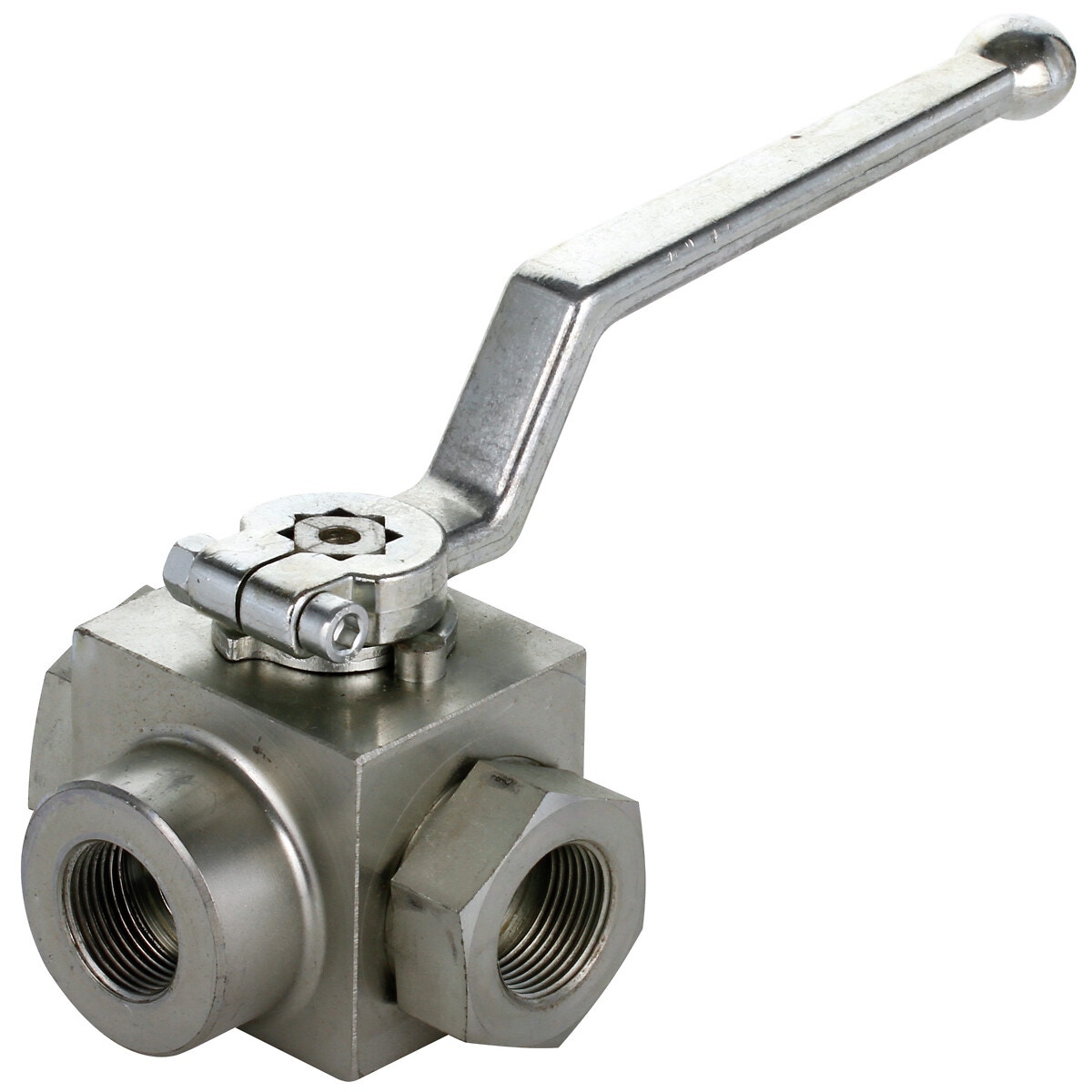

3-WAY BALL VALVE BSP 3/8 500BAR L-SHAPED

Description

type L scheme | material zinc plated steel | operating temperature -20…+100 °C | warning! pressure inlet only from center port 1 | hose DN 10 | thread G 3/8" | max. pressure 500 bar | A 40 | B 17,4 | C 73 | D 44,4 | E 11 | F 54,25 | G 35 | G1 54,5 | H 110 | I 96,5 | L 15,5 | ØM G 3/8" | CH 30 | SW 9 | ØLW 10 | weight 0,69 kg

Attributes

Thread: G 3/8" -19 | Package length (cm): 15 | Package width (cm): 8.7 | Package height (cm): 5.3 | Gross weight (kg): 0.589000 | EAN: 6418914894020
