3/4″ BSP FASTER QUICK COUPLING WITH FLAT SURFACE

Description

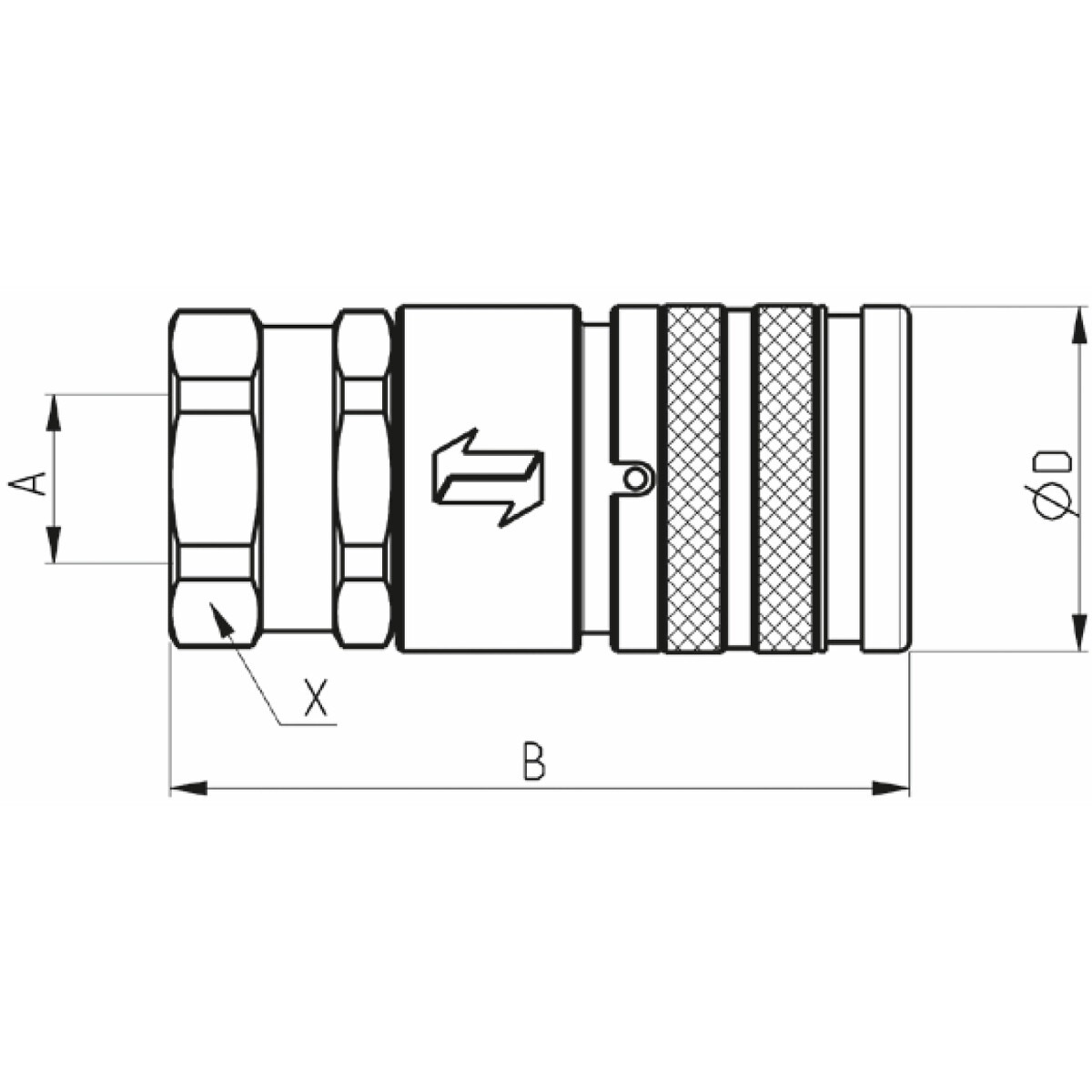

flat-face quick coupling | interchangeability according to (ISO 16028) standard | connection / disconnection not allowed under pressure | working pressure 350 bar | flow rate 160 l/min | bursting pressure 1400 bar | force to connect 215 N | A thread 3/4" BSP female | B 100 mm | D 48 mm | X 42 mm

Attributes

Thread: G 3/4" -14 | Package length (cm): 5 | Package width (cm): 11 | Package height (cm): 5 | Gross weight (kg): 0.910000 | EAN: 6418914967939
