Weo pievienojamā 16 mm-3/8 šļūtenes uzmava

Описание

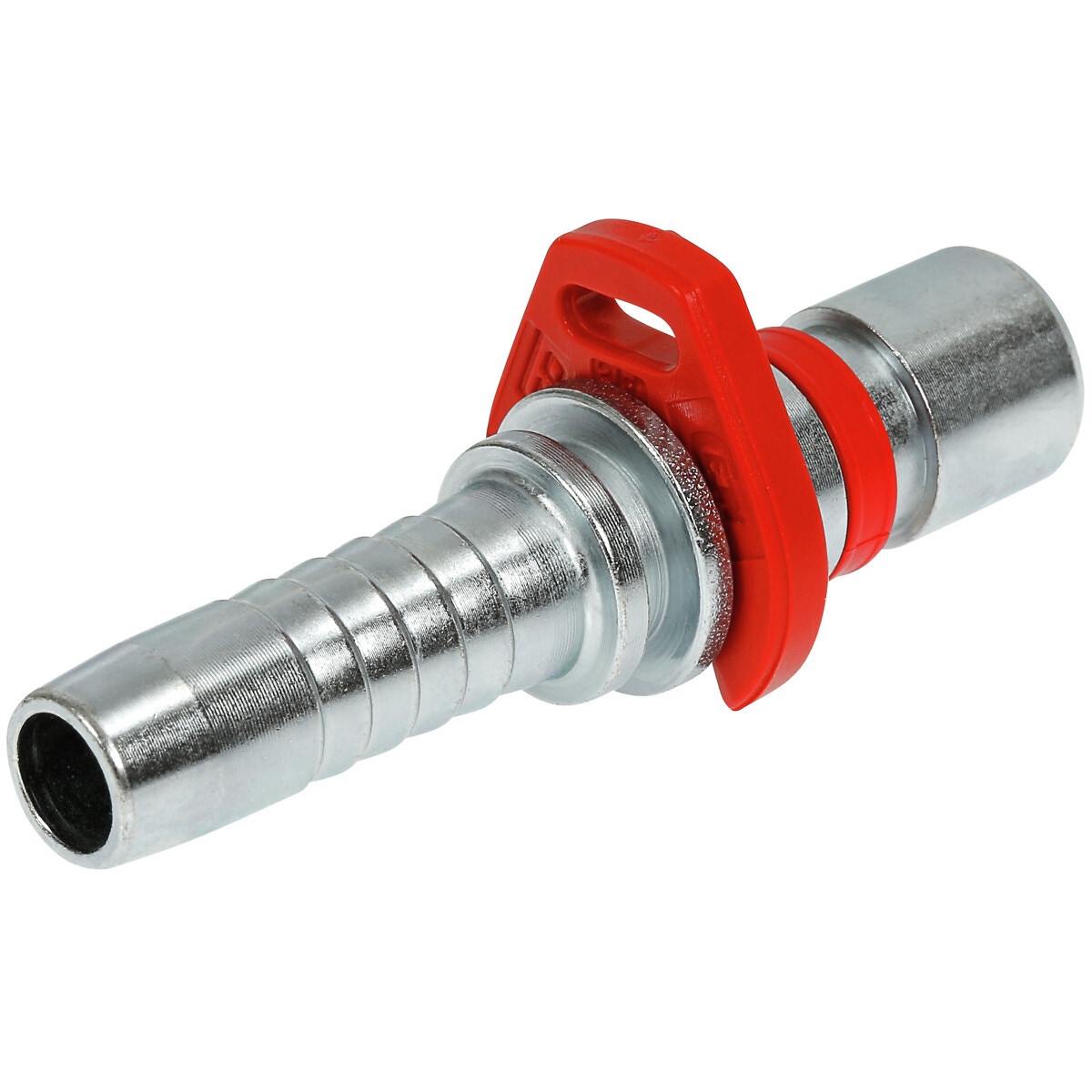

WEO Plug-in 710 series hose connection with O-ring sealing | for one/two wire braided hydraulic hoses | standard SS-ISO 8032 | the click-to-connect and self-aligning features of the fittings make them easy to install in hydraulic systems | the easy and tight connection also gives you leak-free connections | changing the connections is easy even in confined spaces | material hardened steel (zinc plated) | operating temperature -30…+100 °C | hose size -06 | for 16 mm and 3/8" hose | max. work pressure 350 bar | A 16 | B 63 | C 22 | D 7 | F 33

Атрибуты

Hose inner Ø (mm): 10 | Hose inner Ø (mm): 10.00 | Hose inner Ø (inch): 3/8" | Package length (cm): 6.2 | Package width (cm): 1.6 | Package height (cm): 1.6 | Gross weight (kg): 0.046000 | EAN: 6418914979918
