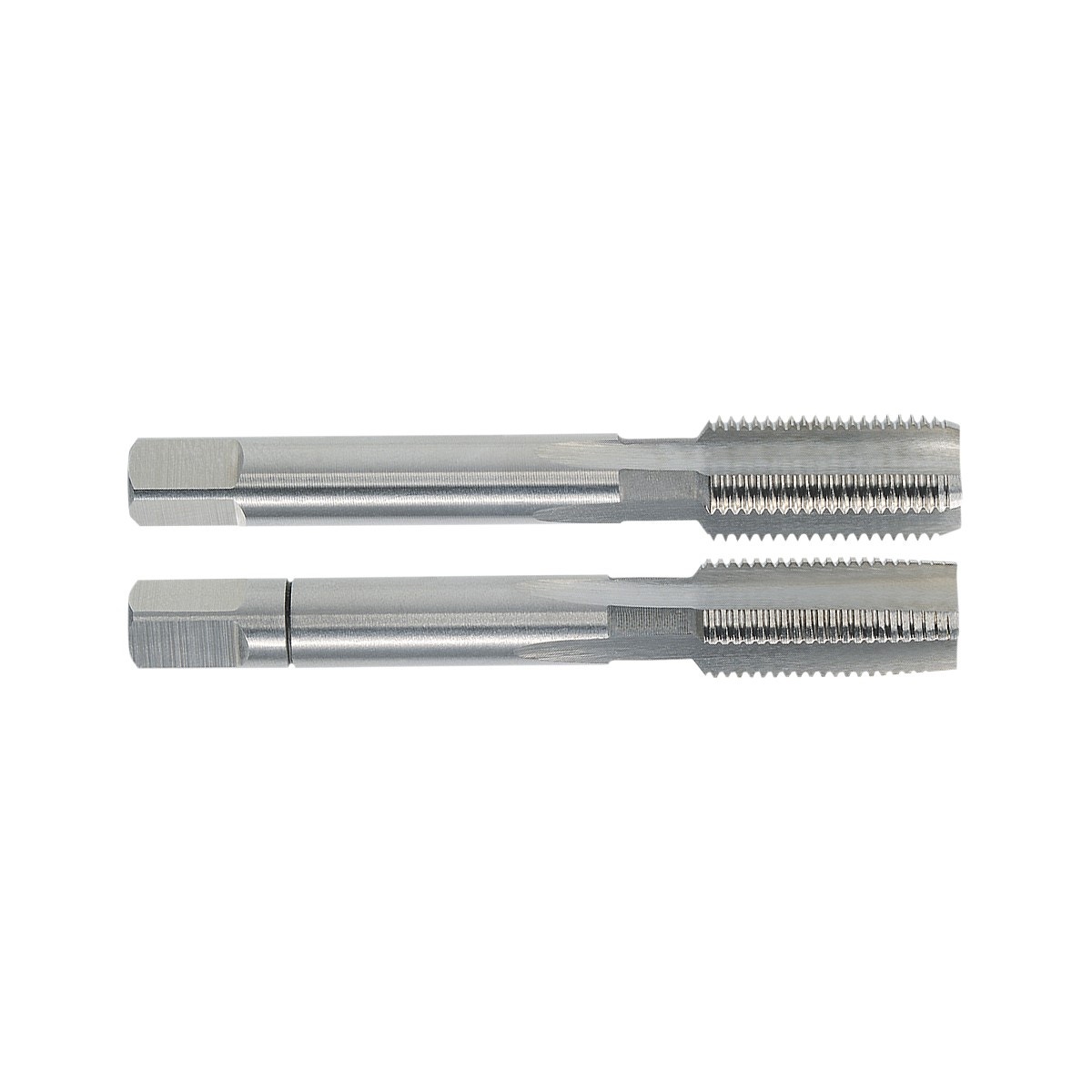

VĪTŅU KRĀNU KOMPLEKTS G 1/4 2GAB HSS-G DIN5157

Описание

HSS hand tap set (DIN 5157) for through and blind holes | suitable for unalloyed and low alloyed steels up to appr. 900 N/mm², cast steels, malleable cast iron, brass, aluminium and copper | set includes pilot and finishing tap | BSP (British Standard Pipe Parallel), Whitworth pipe thread DIN ISO 228 | size (d1) G 1/4" -19 | overall length (l1) 70 mm | thread length (l2) 22 mm | diameter (d2) 11 mm | shank (a) 9 mm | recommended drill bit Ø 11.8 mm

Атрибуты

Thread: G 1/4" -19 | Package length (cm): 16.5 | Package width (cm): 13 | Package height (cm): 2 | Gross weight (kg): 0.119000 | EAN: 4022835253143
