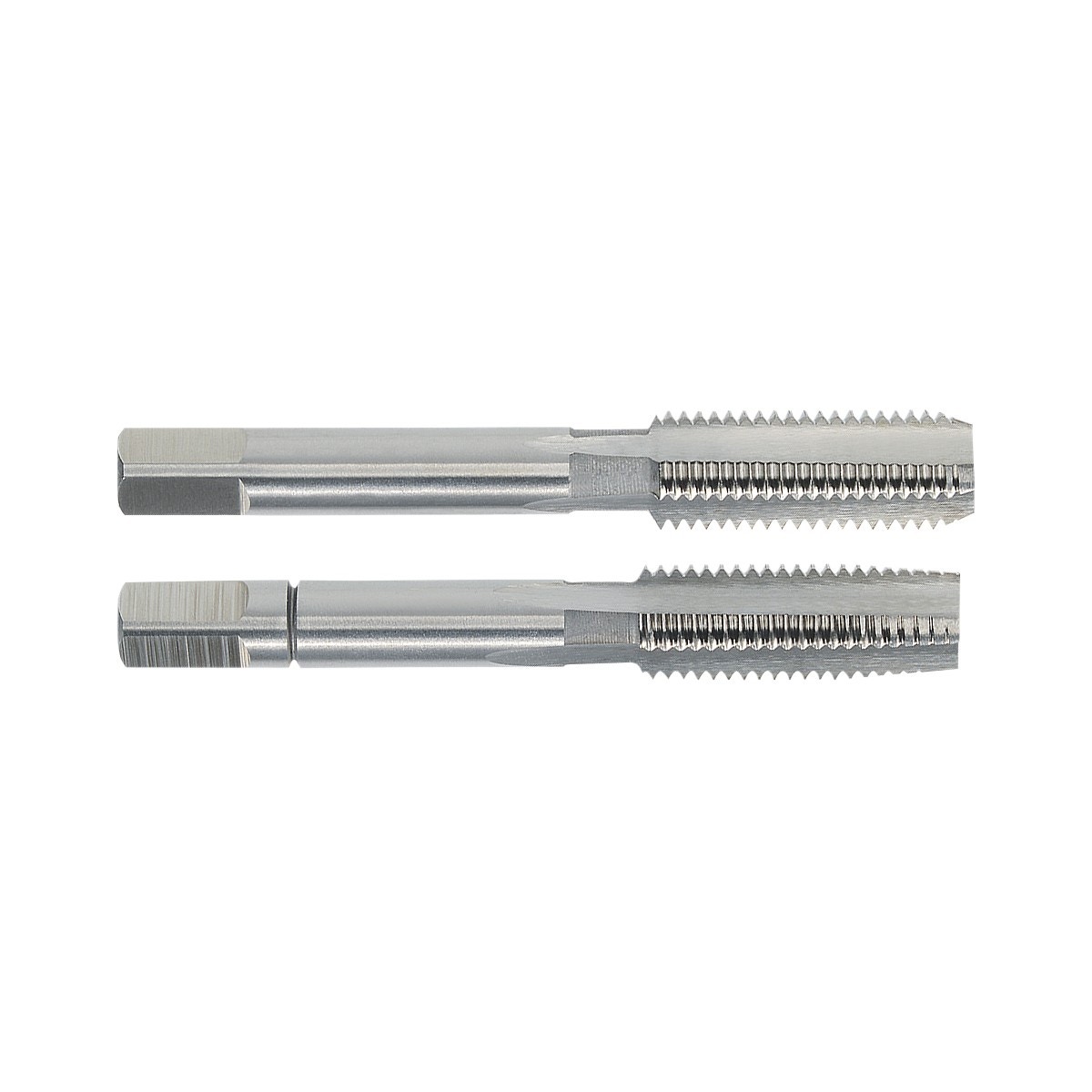

VĪTŅGRIEŽU KRĀNU KOMPLEKTS UNF 3/4-16 NR.2-3 HSS-G DIN2181

Описание

HSS hand tap set (DIN 2181) for through and blind holes | suitable for unalloyed and low alloyed steel up to 900 N/mm² | set includes pilot and finishing tap | UNF fine thread (ANSI B 1.1) | size (d1) UNF 3/4" -16 | overall length (l1) 95 mm | thread length (l2) 32 mm | diameter (d2) 14 mm | shank (a) 11 mm | recommended drill bit Ø 17.5 mm

Атрибуты

Thread: UNF 3/4" -16 | Package length (cm): 12 | Package width (cm): 7 | Package height (cm): 3 | Gross weight (kg): 0.286000 | EAN: 4022835243304
