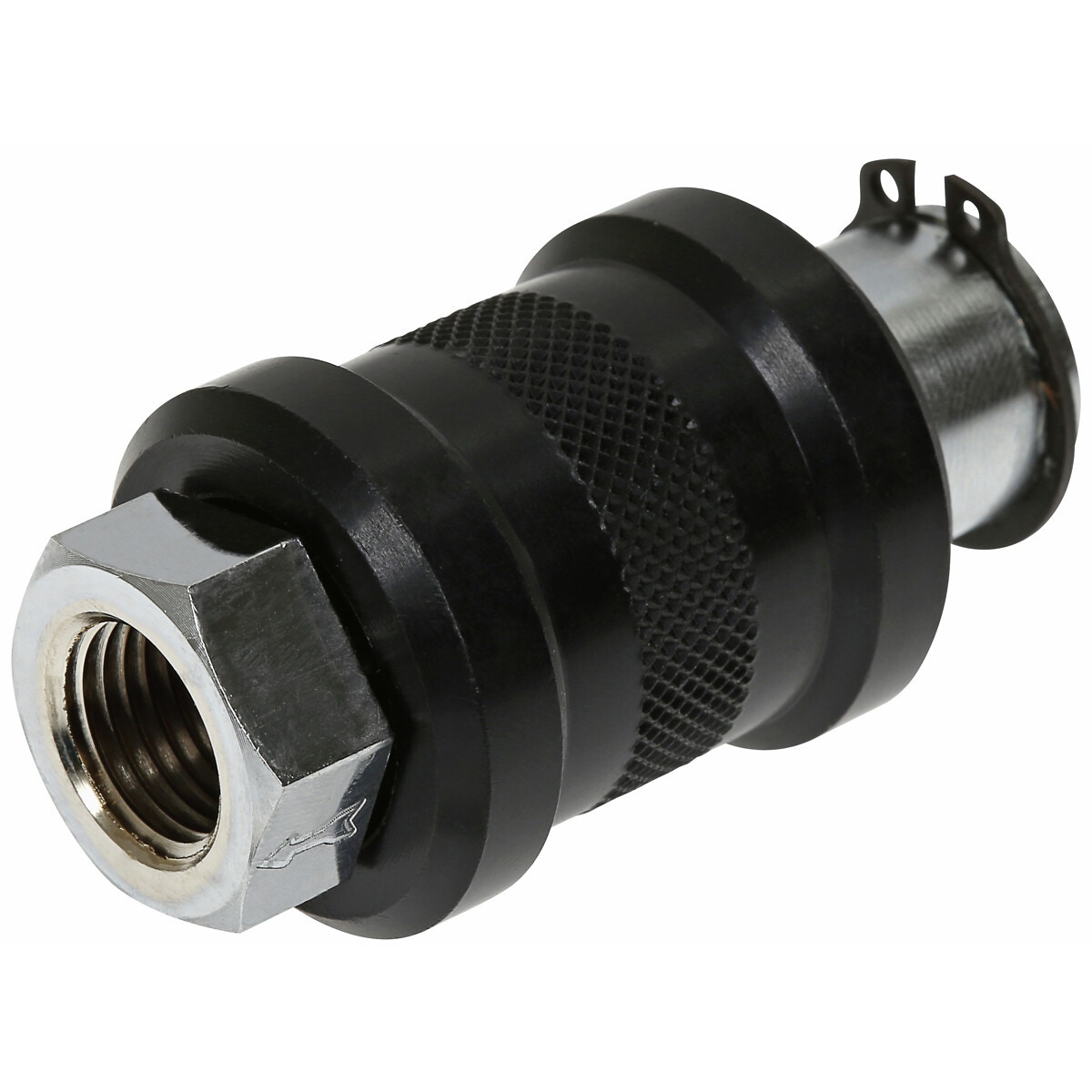

Золотник 1/4 3/2 vcs 3-ходовой

Описание

VCS series | the 3/2 slide valve is normally used as a circuit on-off valve | when the ring nut is moved back, the system downstream is relieved | when the ring nut is moved forward, the system is supplied with compressed air | material body chromium-plated brass, ring nut anodized aluminium, seals NBR | thread G 1/4" | operating pressure 0 – 10 bar | flow rate at 6,3 bar (pressure drop 0,5 bar) 680 Nl/min | flow rate at 6,3 bar (pressure drop 1 bar) 1040 Nl/min | operating temperature -10…+80 °C | fluid: lubricated or unlubricated filtered air | F 1/4" | Ø 30 | I 12 | L 58 | CH 19

Атрибуты

Thread: G 1/4" -19 | Package length (cm): 5.8 | Package width (cm): 3 | Package height (cm): 3 | Gross weight (kg): 0.096000 | EAN: 8024986008715
