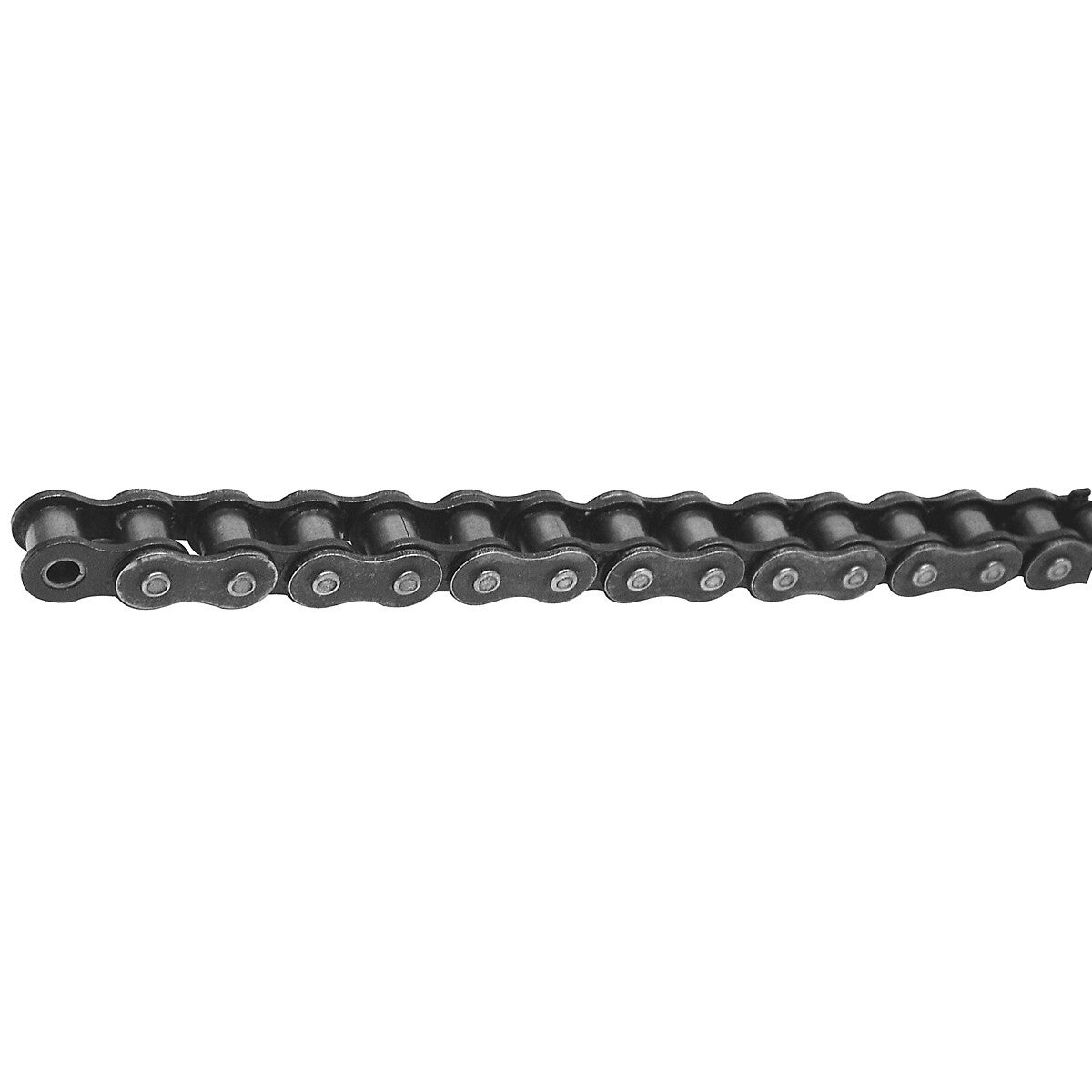

Rullīšu ķēde 5/8 din8187

Описание

P pitch: 5/8" | Dr roller Ø: 10,16 mm | W inner width min.: 9,65 mm | Hi hight max.: 14,73 mm | S thickness: 1,63 / 1,53 mm | Dp pin diameter max.: 5,08 mm | A1 width of riveted pin: 19,10 mm | B width of pin: 27 mm | working surface: 69 mm² | measuring load: 200 N | min. breaking strength: 22,30 kN | average breaking strength: 24,80 kN | weight: 0,88 kg | economic product

Атрибуты

Package length (cm): 13 | Package width (cm): 13 | Package height (cm): 2.1 | Gross weight (kg): 0.960000 | EAN: 6418914089341
