Клапан управления потоком 3/8 30л 350бар

Описание

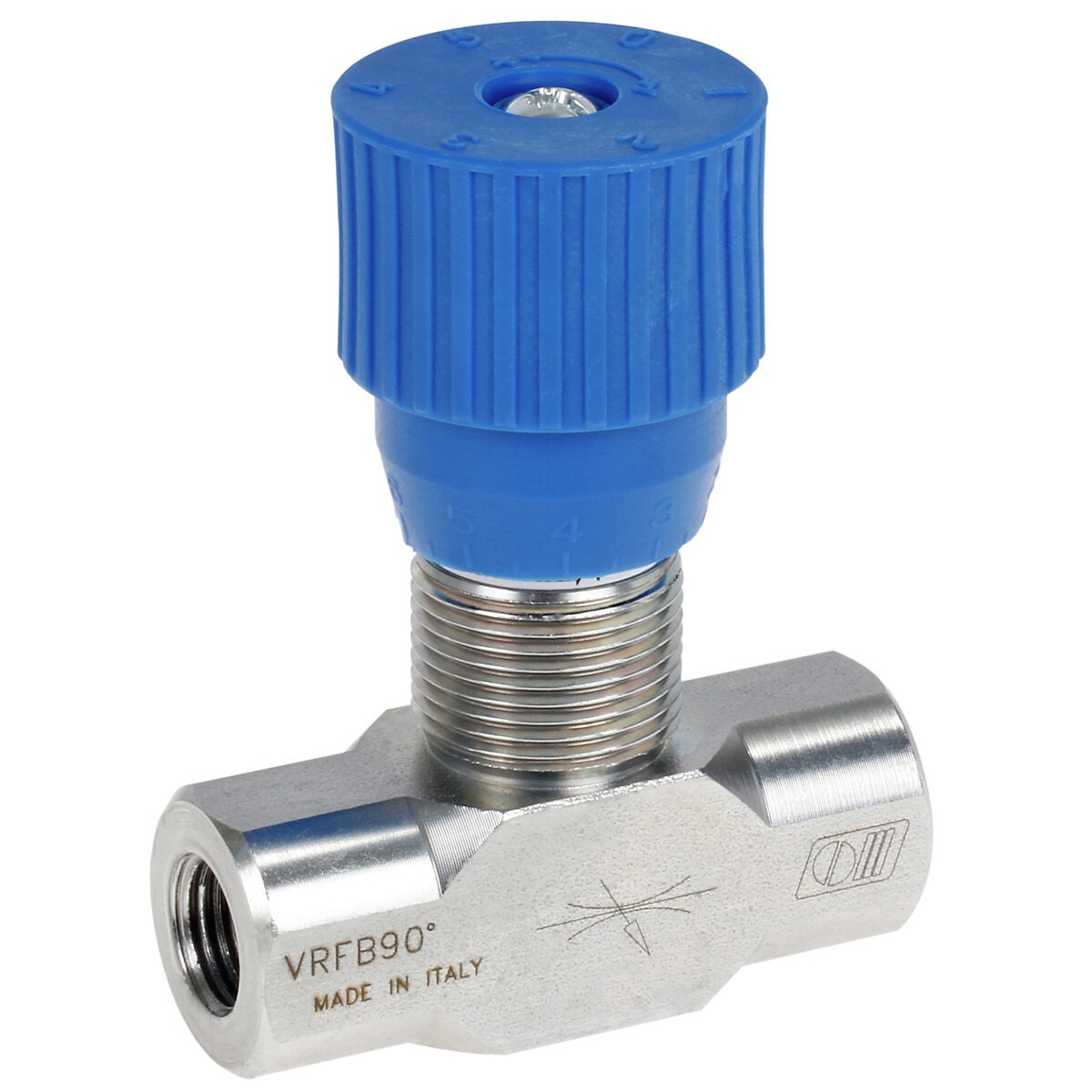

type VRFB 90° | flow regulator valve is used to adjust flow speed of actuators in both directions | flow adjustment is made by rotating the plastic hand knob after loosening the side locking screw | material zinc plated steel | connection V C: G 3/8" | max. flow 30 l/min | max. pressure 350 bar | A 61 | D M22x1,5 | E 32 | H 82 | S 25

Атрибуты

Thread: G 3/8" -19 | Package length (cm): 6.3 | Package width (cm): 3.4 | Package height (cm): 8.4 | Gross weight (kg): 0.331000 | EAN: 6418914928374
