Hidrauliskā šļūtene r15-3/4 420bar 4 spirāles everzaļš

Описание

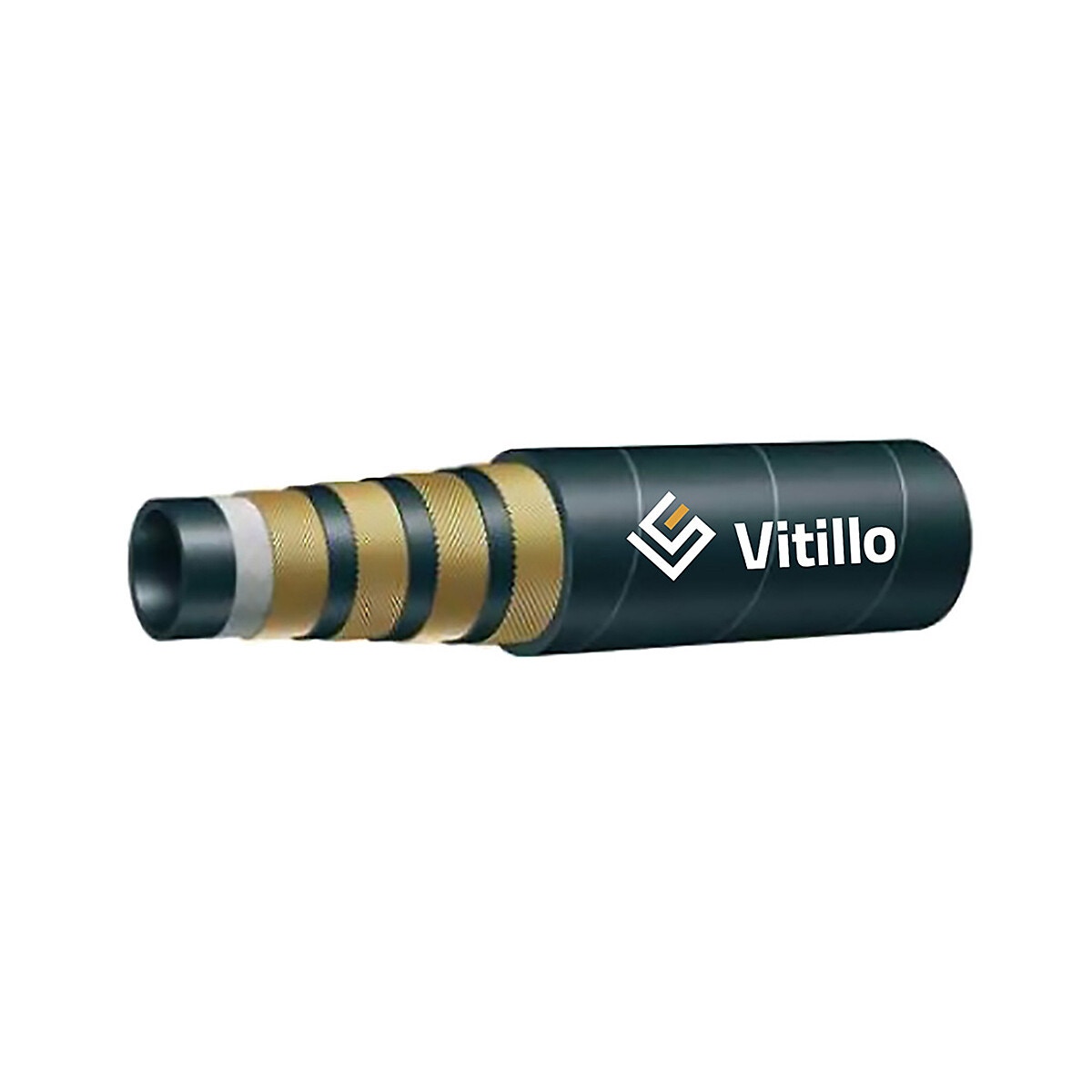

Vitillo Evergreen R15 hydraulic hose | SAE 100 R15 / ISO 3862 R15 | reinforcement 4 high tensile steel spirals | inner surface is oil resistant synthetic rubber | outer surface is black synthetic rubber with high resistance to abrasion, to flame, to oils and to weather conditions (MSHA approved) | operating temperature -40…+120°C | applications: for very high pressure hydraulic applications | nominal size -12 | hose DN 19 | inner Ø 3/4" | inner Ø 19.0 mm | outer Ø 31.2 mm | operating pressure 420 bar | explosion pressure 1680 bar | bending radius 265 mm | weight 1,5 kg/m

Атрибуты

Hose inner Ø (mm): 19 | Hose inner Ø (mm): 19.00 | Hose inner Ø (inch): 3/4" | Package length (cm): 100 | Package width (cm): 3 | Package height (cm): 3 | Gross weight (kg): 0.905000 | EAN: 6418914969896
