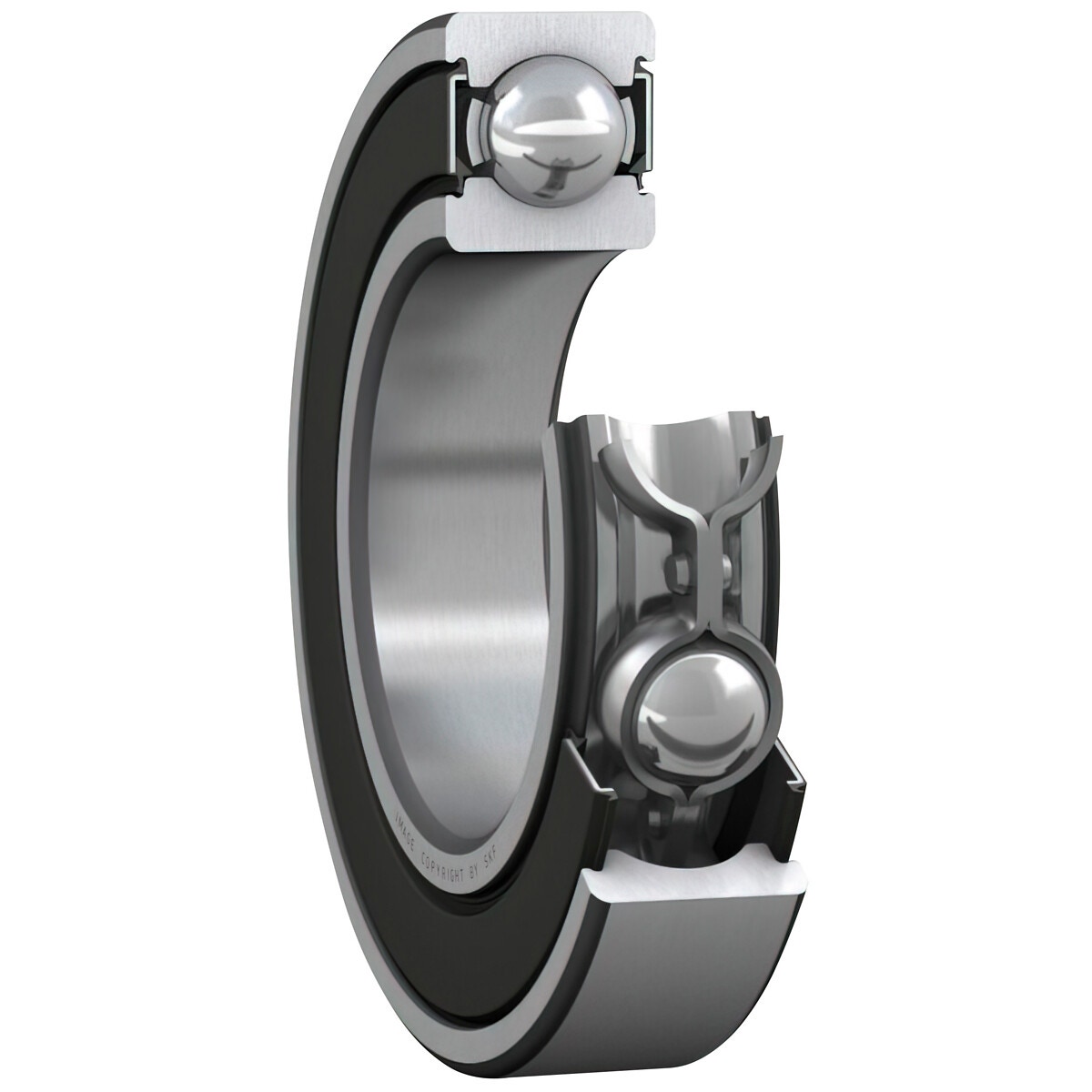

Dziļfrēžu lodīšu gultnis 10x35x11 skf

Описание

bore diameter (d) 10 mm | outer diameter (D) 35 mm | width (B) 11 mm | inner ring recess diameter (d2) 15.5 mm | outer ring abutment recess diameter (D2) 28.68 mm | chamfer dimension (r1,2) min. 0.6 mm | abutment shaft diameter (da) min. 14.2 mm | abutment shaft diameter (da) max. 15.5 mm | abutment housing diameter (Da) max. 30.8 mm | fillet radius (ra) max. 0.6 mm | basic dynamic load rating (C) 8.52 kN | basic static load rating (C0) 3.4 kN | fatigue load limit (Pu) 0,143 kN | limiting speed 15000 r/min | calculation factor (kr) 0.03 | calculation factor (f0) 11

Атрибуты

Inner diameter Ø (mm): 10 | Inner diameter Ø (mm): 10.00 | Outer diameter Ø (mm): 35 | Outer diameter Ø (mm): 35.00 | Package length (cm): 4.4 | Package width (cm): 4.6 | Package height (cm): 1.6 | Gross weight (kg): 0.057000 | EAN: 7316571821214
