25 мм 45 PPS1 соединитель с зажимом

Описание

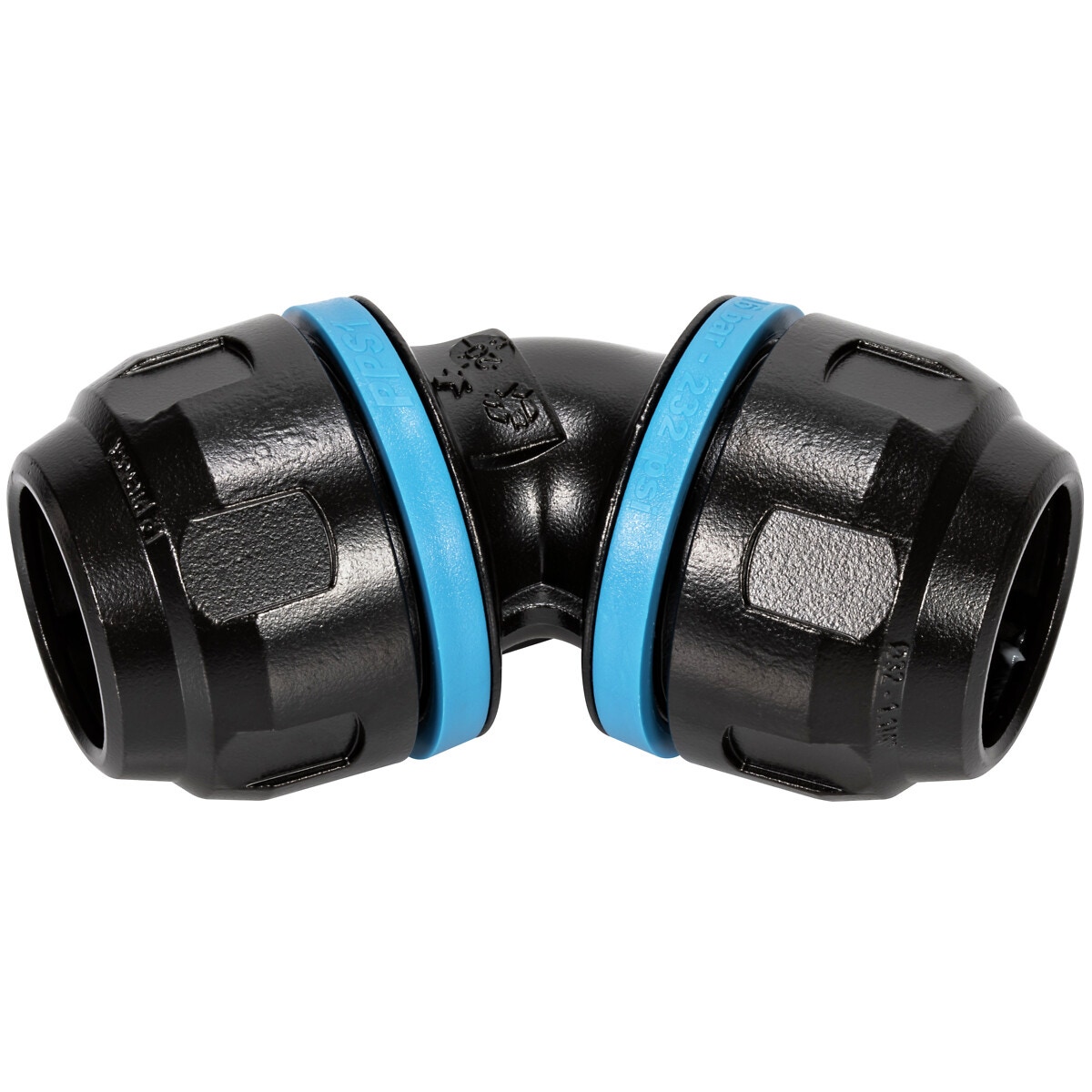

Prevost 45° equal female elbow fitting PPS1 4C | the new PPS Grip Concept is based on a stainless steel ring with teeth that penetrate the aluminium | leak tightness is achieved via a new contoured and lubricated seal, with optimised design and properties (the seal remains perfectly leak tight even under the harshest conditions) | material 100 % aluminium, EN AB 46100 | standard DESP 2014/68/UE REACH | operating temperature -20…+80 °C | fluid compressed air | operating pressure 0 – 16 bar | vacuum -0,98 bar | pipe outer diameter Ø 25 mm | A 46 mm | B 98 mm | C 70 mm

Атрибуты

Package length (cm): 6 | Package width (cm): 11.1 | Package height (cm): 6.1 | Gross weight (kg): 0.175000 | EAN: 3660058302364
