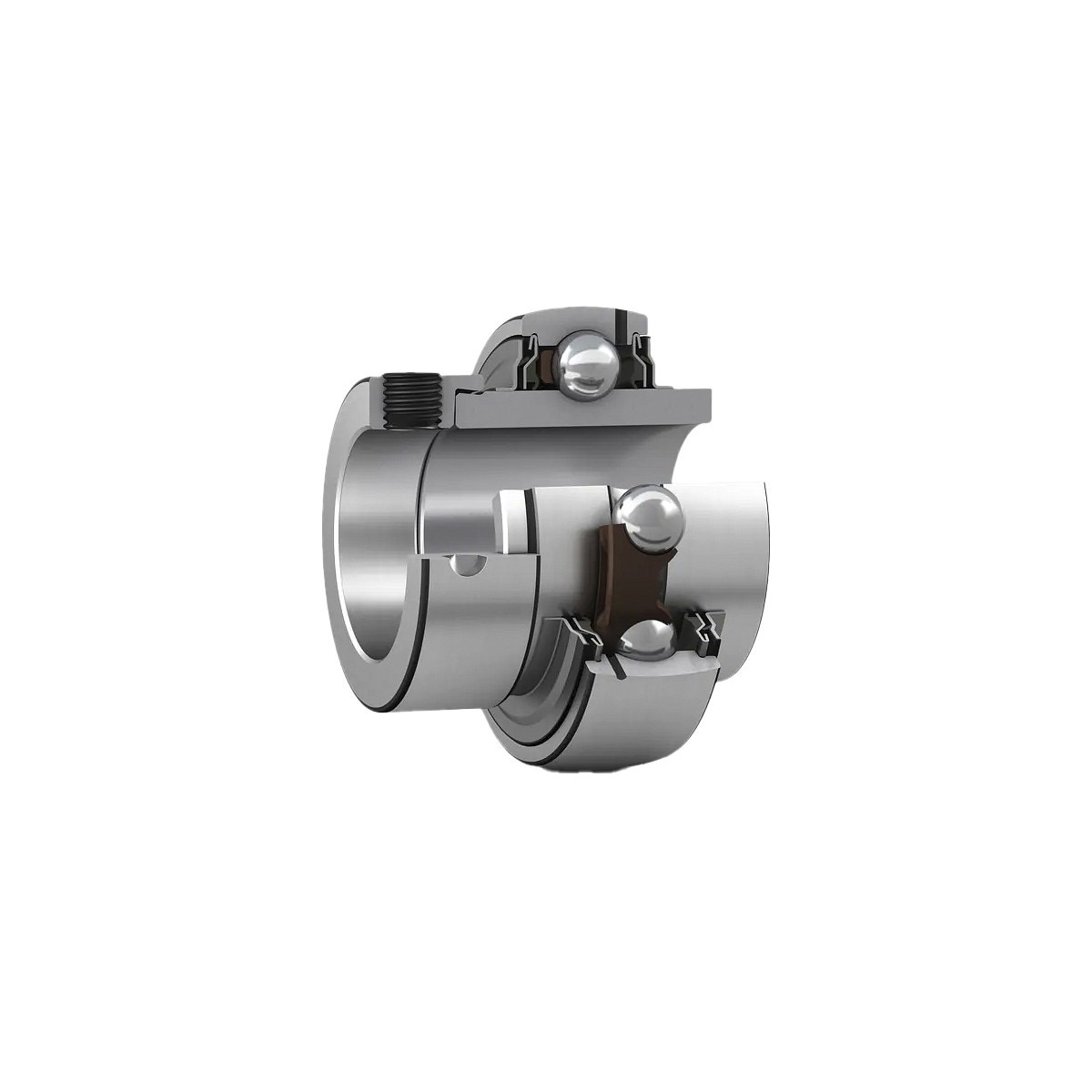

Y GULTNIS 40X80X42,8 SKF

Description

bore diameter (d) 40 mm | outer diameter (D) 80 mm | overall bearing width (B1) 56.3 mm | inner ring width (B) 42.8 mm | outer ring width (C) 21 mm | outer diameter, inner ring (d1) 51.8 mm | outside diameter of locking collar (d2) 56.5 mm | distance from locking device side face to thread centre (B4) 6.75 mm | chamfer dimension (r1,2) min. 1 mm | distance from locking device side face to raceway centre (s1) 34.9 mm | basic dynamic load rating (C) 30.7 kN | basic static load rating (C0) 19 kN | fatigue load limit (Pu) 0.8 kN | limiting speed 2800 r/min | calculation factor (f0) 14

Attributes

Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 80 | Outer diameter Ø (mm): 80.00 | Package length (cm): 9.3 | Package width (cm): 9.7 | Package height (cm): 6.6 | Gross weight (kg): 0.713000 | EAN: 7316570355062
