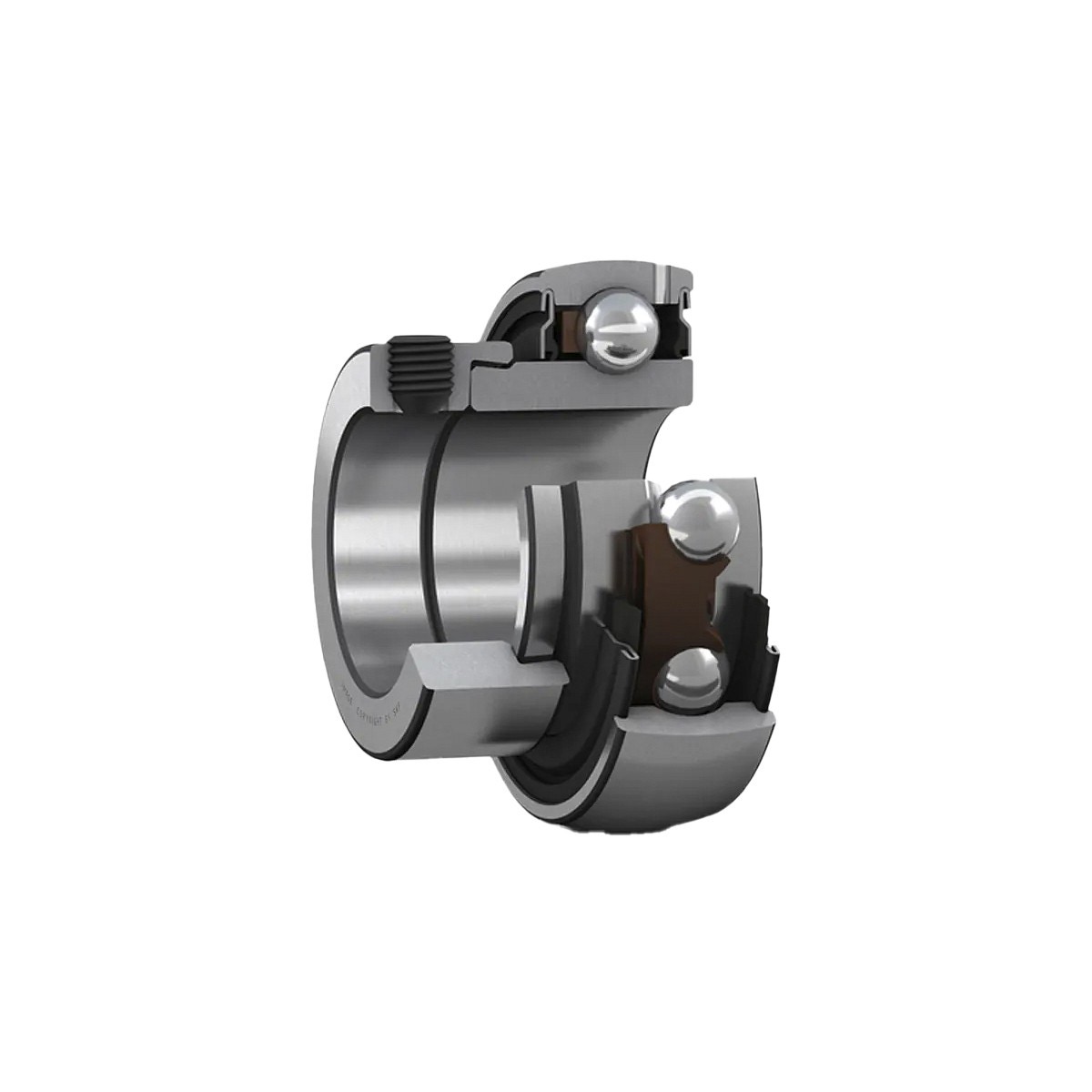

Y GULTNIS 40X80X29,7 SKF
89 €
✓ Pieejams
Description
bore diameter (d) 40 mm | outer diameter (D) 80 mm | overall bearing width (B1) 43.2 mm | inner ring width (B) 29.7 mm | outer ring width (C) 21 mm | outer diameter, inner ring (d1) 51.8 mm | outside diameter of locking collar (d2) 56.5 mm | distance from locking device side face to thread centre (B4) 6.75 mm | chamfer dimension (r1,2) min. 1 mm | distance from locking device side face to raceway centre (s1) 32.7 mm | basic dynamic load rating (C) 30.7 kN | basic static load rating (C0) 19 kN | fatigue load limit (Pu) 0.8 kN | limiting speed 4800 r/min | calculation factor (f0) 14
Attributes
Inner diameter Ø (mm): 40 | Inner diameter Ø (mm): 40.00 | Outer diameter Ø (mm): 80 | Outer diameter Ø (mm): 80.00 | Package length (cm): 8.4 | Package width (cm): 8.6 | Package height (cm): 5.4 | Gross weight (kg): 0.604000 | EAN: 7316577295392
