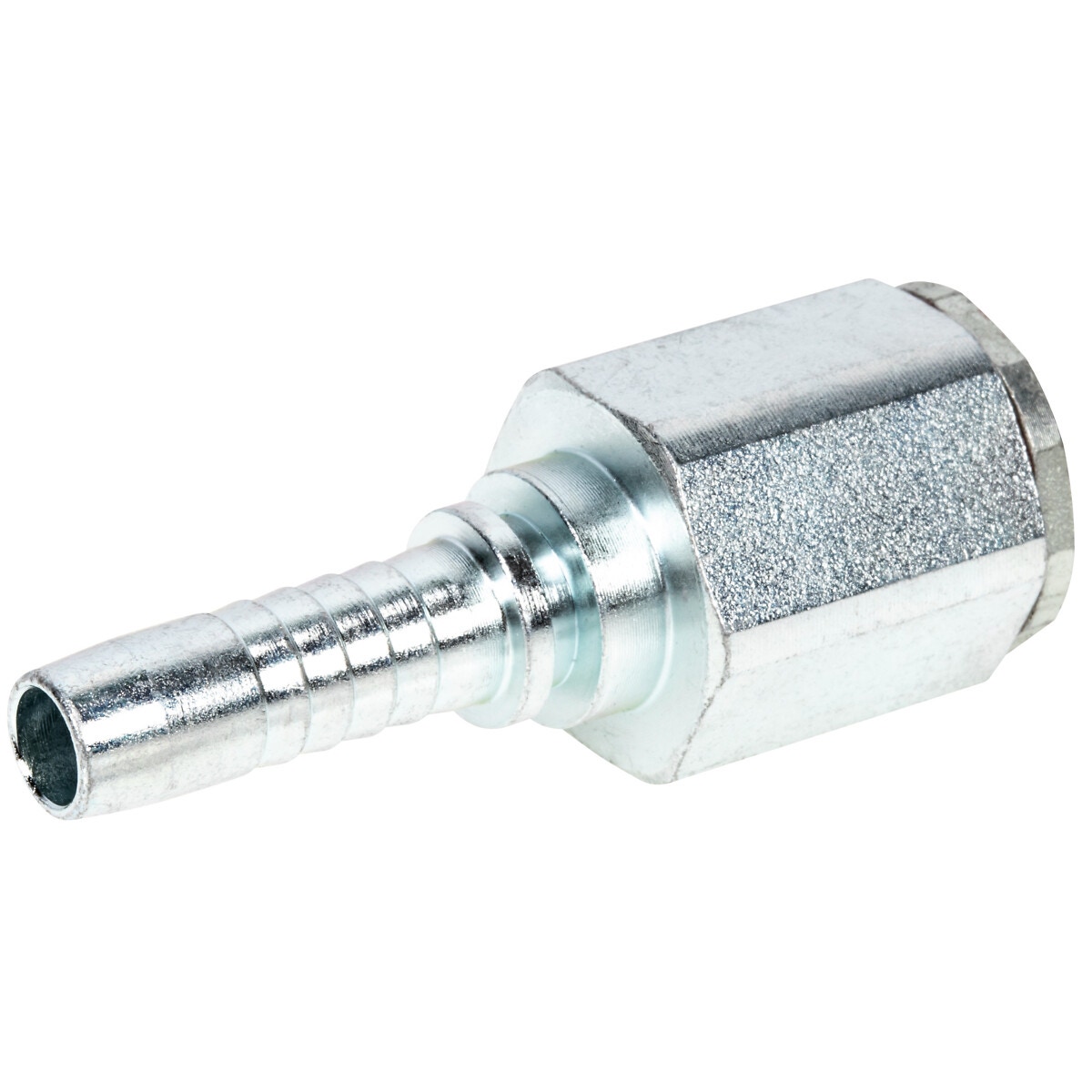

WEO 13 MM-3/8 IEKŠĒJĀS ŠĻŪTENES SAVIENOJUMS AR SPRAUDNI

Description

WEO Plug-in 817 coupling straight hose connection | for one/two wire braided hydraulic hoses | standard SS-ISO 8032 | the click-to-connect and self-aligning features of the fittings make them easy to install in hydraulic systems | the easy and tight connection also gives you leak-free connections | changing the connections is easy even in confined spaces | material hardened steel (zinc plated) | operating temperature -30…+100 °C | body size 3/8" | hose size -06 | connection 3/8" (10.1 mm) | max. work pressure 350 bar | A 13 | B 66.9 | C 36 | D 7 | F 24

Attributes

Hose inner Ø (mm): 10 | Hose inner Ø (mm): 10.00 | Hose inner Ø (inch): 3/8" | Package length (cm): 6.7 | Package width (cm): 2.4 | Package height (cm): 2.4 | Gross weight (kg): 0.086000 | EAN: 6418914115163
