WEO 10 MM-1/4 IEKŠĒJĀS ŠĻŪTENES SAVIENOJUMS AR SPRAUDNI

Description

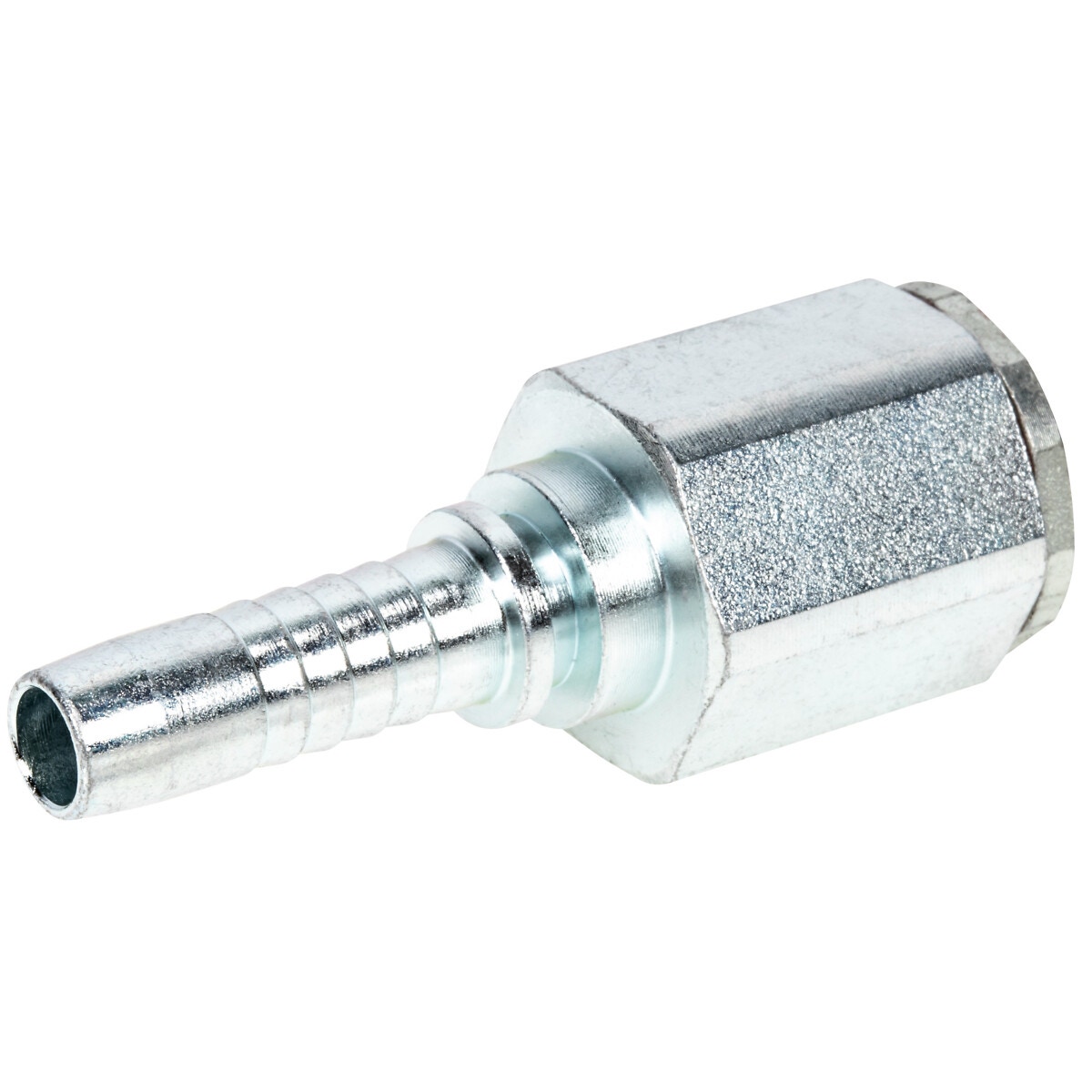

WEO Plug-in 817 coupling straight hose connection | for one/two wire braided hydraulic hoses | standard SS-ISO 8032 | the click-to-connect and self-aligning features of the fittings make them easy to install in hydraulic systems | the easy and tight connection also gives you leak-free connections | changing the connections is easy even in confined spaces | material hardened steel (zinc plated) | operating temperature -30…+100 °C | body size 1/4" | hose size -03 | connection 3/16" (5.25 mm) | max. work pressure 350 bar | A 10 | B 58.5 | C 33.2 | D 2.8 | F 20

Attributes

Hose inner Ø (mm): 6 | Hose inner Ø (mm): 6.00 | Hose inner Ø (inch): 1/4" | Package length (cm): 6.2 | Package width (cm): 2 | Package height (cm): 2 | Gross weight (kg): 0.058000 | EAN: 6418914115149
