VĪTŅU PRESFORMAS UNF 7/16-20 DIN223 HSS
31,50 €
Noliktavā 3 prece/-es
✓ Pieejams
Description

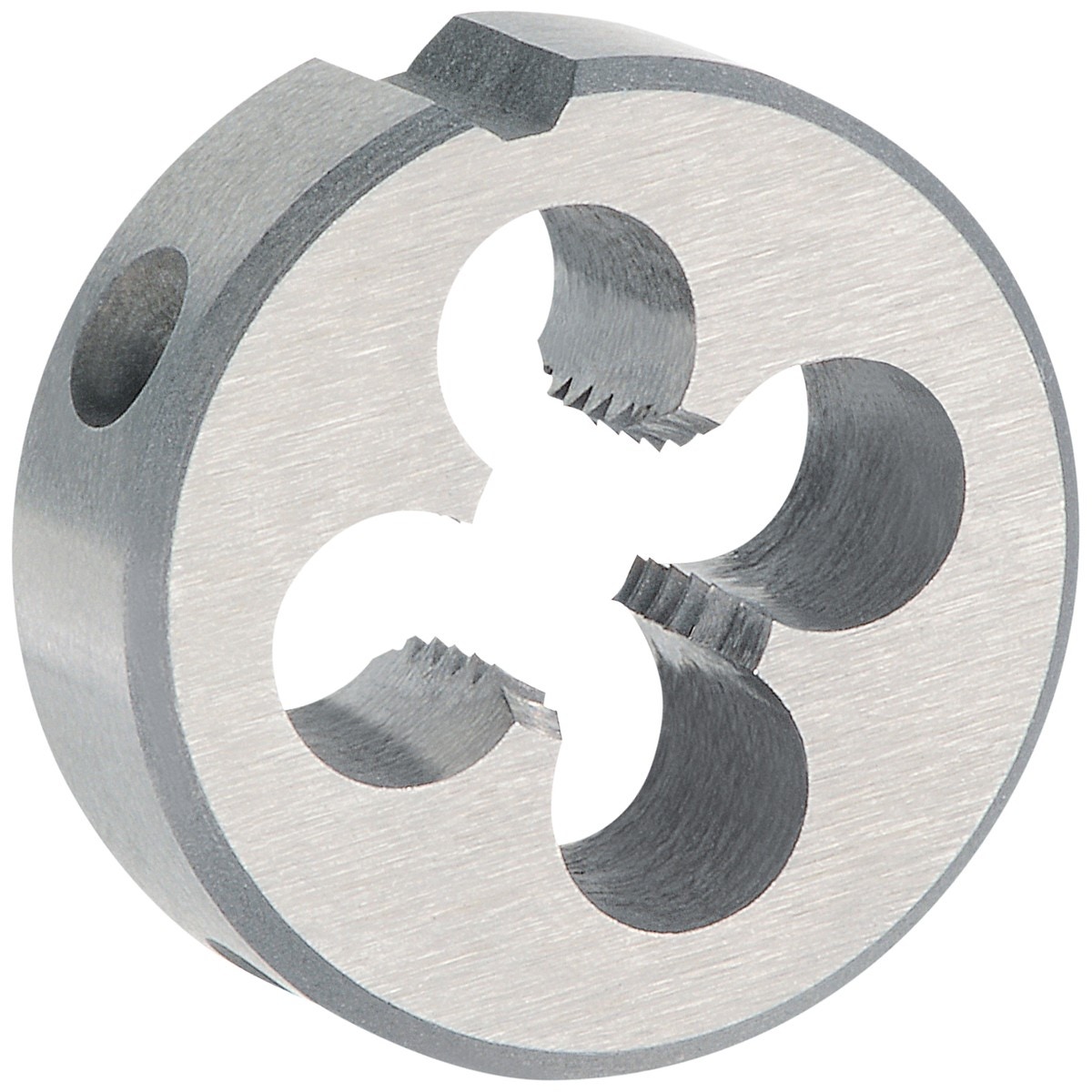

HSS round die (DIN EN 22568 / DIN 223) | suitable for unalloyed and low alloyed steels up to appr. 800 N/mm² as well as brass, aluminium and copper | UNF fine thread (ANSI B 1.1) | tolerance 2A | size (d1) UNF 7/16" -20 | outer diameter (d2) 30 mm | height (h) 11 mm
Attributes
Thread: UNF 7/16" -20 | Package length (cm): 15 | Package width (cm): 8 | Package height (cm): 1.5 | Gross weight (kg): 0.050000 | EAN: 4022835244202
