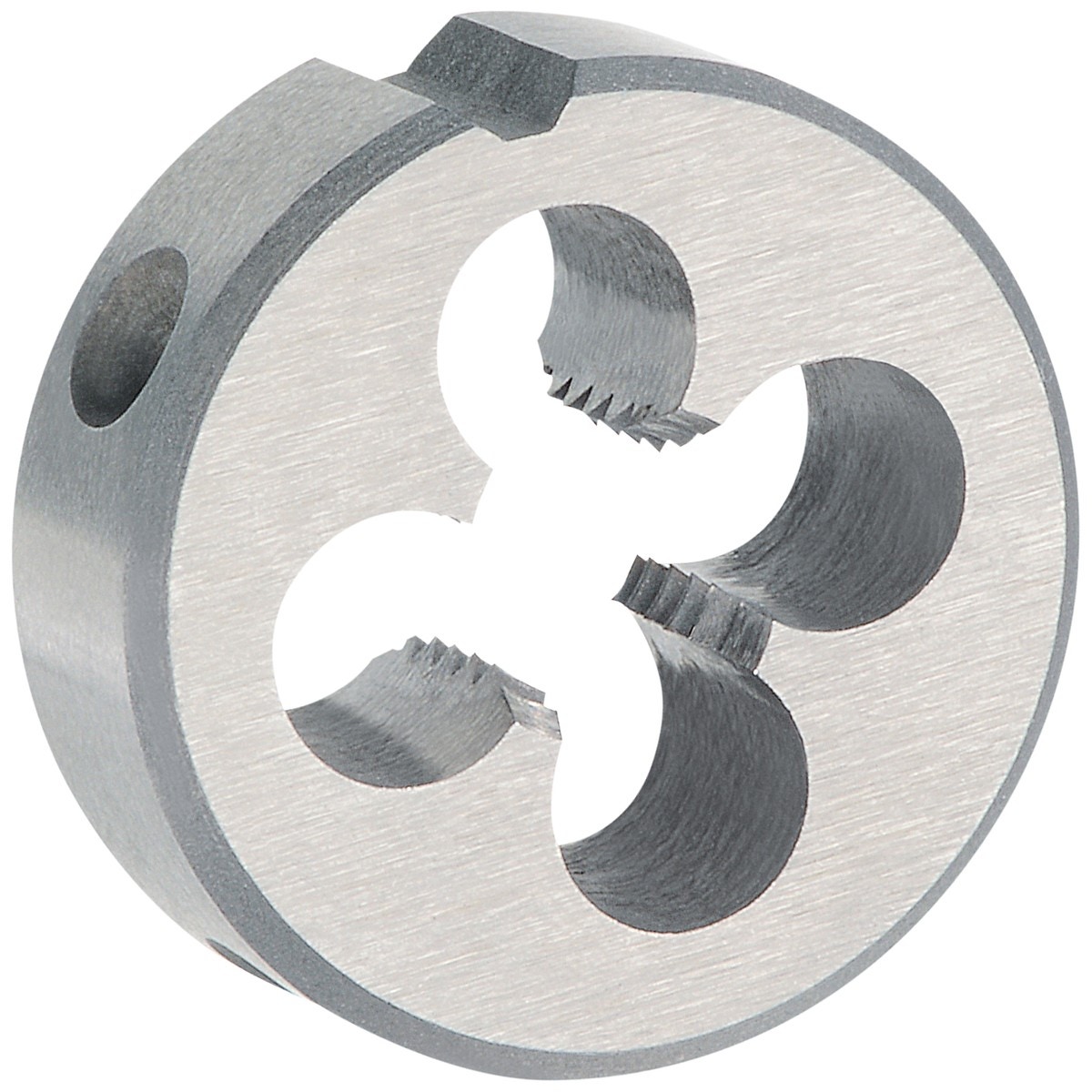

VĪTŅU PRESFORMAS UNC 9/16-12 DIN223 HSS
42,90 €
✓ Pieejams
Description
HSS round die (DIN EN 22568 / DIN 223) | suitable for unalloyed and low alloyed steels up to appr. 800 N/mm² as well as brass, aluminium and copper | UNC coarse thread (ANSI B 1.1) | tolerance 2A | size (d1) UNC 9/16" -12 | outer diameter (d2) 38 mm | height (h) 14 mm
Attributes
Thread: UNC 9/16" -12 | Package length (cm): 13 | Package width (cm): 8 | Package height (cm): 2 | Gross weight (kg): 0.094000 | EAN: 4022835234241
