VĪTŅU PRESFORMAS BEZ VĪTNES 9/16-18 DIN223 HSS
42,90 €
✓ Pieejams
Description

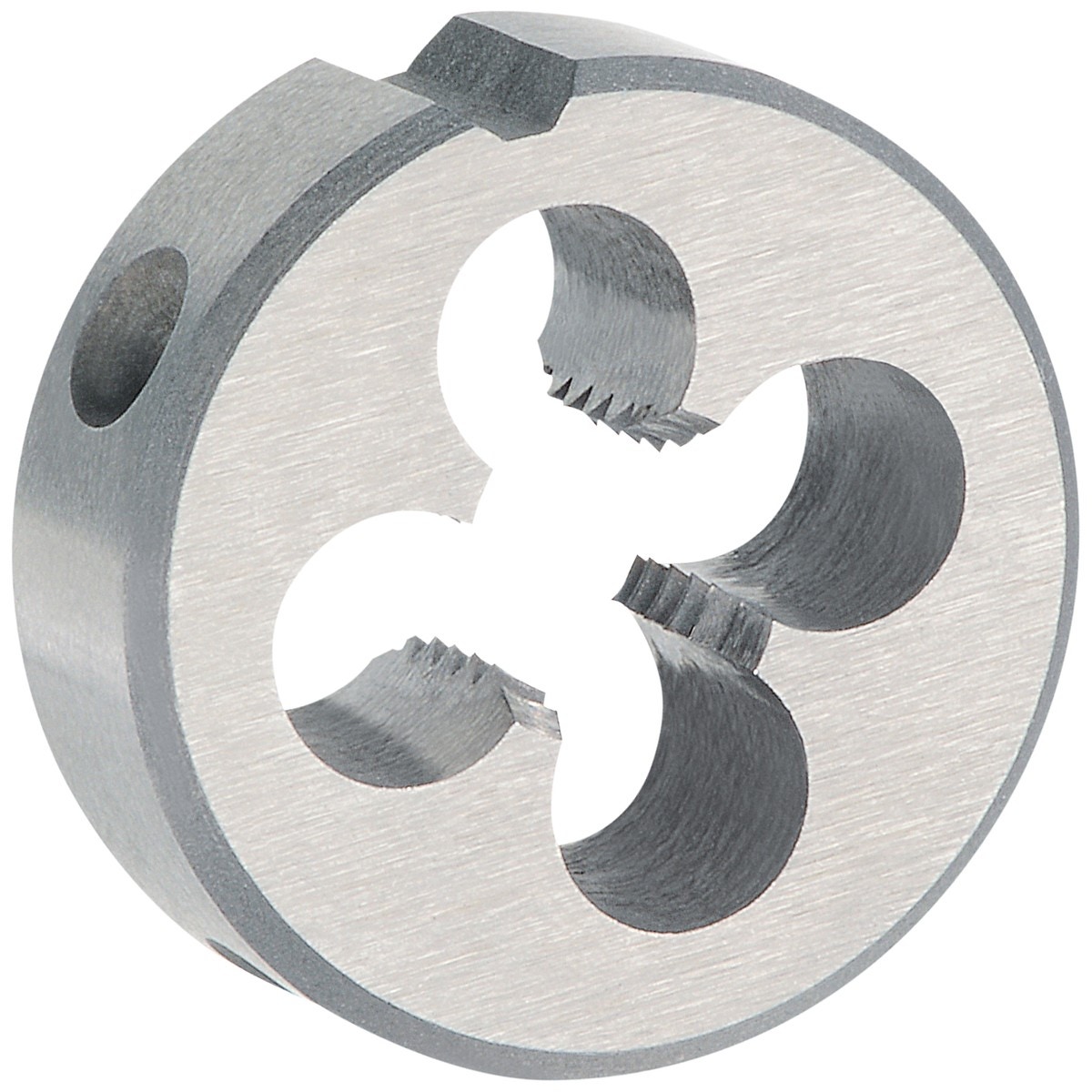

HSS round die (DIN EN 22568 / DIN 223) | suitable for unalloyed and low alloyed steels up to appr. 800 N/mm² as well as brass, aluminium and copper | UNF fine thread (ANSI B 1.1) | tolerance 2A | size (d1) UNF 9/16" -18 | outer diameter (d2) 38 mm | height (h) 10 mm
Attributes
Thread: UNF 9/16" -18 | Package length (cm): 13 | Package width (cm): 8 | Package height (cm): 1.9 | Gross weight (kg): 0.075000 | EAN: 4022835244240
