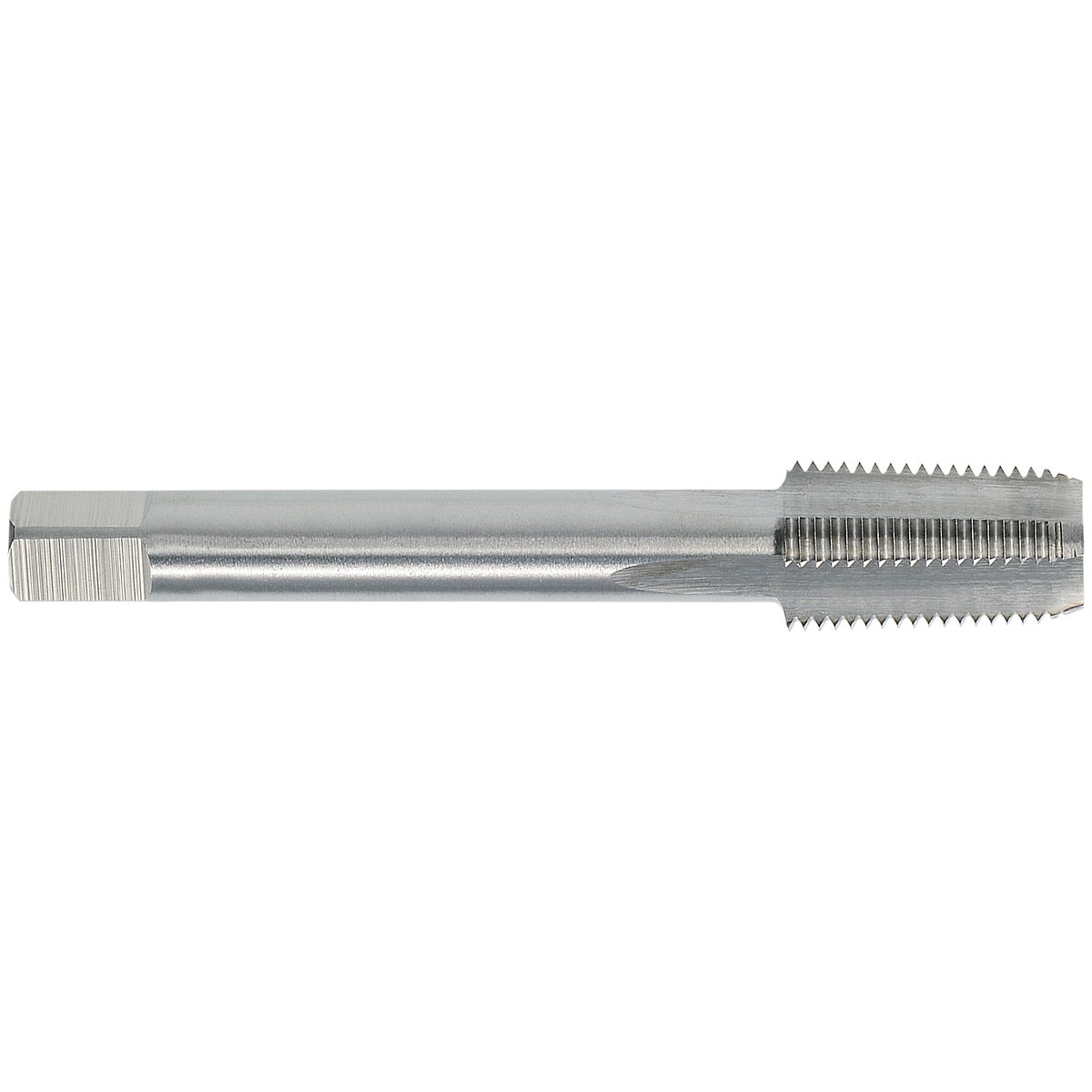

VĪTŅGRIEZIS NPT 1/4-18 HSS-G

Description

HSS-G | NPT (National Pipe Taper), American conical pipe thread (ANSI/ASME B 1.20.1) | suitable for alloyed and unalloyed steels up to appr. 900 N/mm² as well as brass, aluminium and copper | for through and blind holes | size (d1) NPT 1/4"-18 | overall length (l1) 70 mm | thread length (l2) 25 mm | diameter (d2) 11.0 mm | shank (a) 9.0 mm | recommended drill bit Ø 11.2 mm

Attributes

Thread: NPT 1/4" -18 | Package length (cm): 8 | Package width (cm): 13 | Package height (cm): 1.6 | Gross weight (kg): 0.056000 | EAN: 4022835635147
